2-3 Installation
2.2.2 Fuses
The fuse holder is located on the back panel just above the power connection.
For 120 to 200 VAC operation, use the fuse installed at the factory. For 200 to 240 VAC opera-
tion, use the slow-blow fuse located in a hardware kit within the transmitter packaging. Consult
the following table:

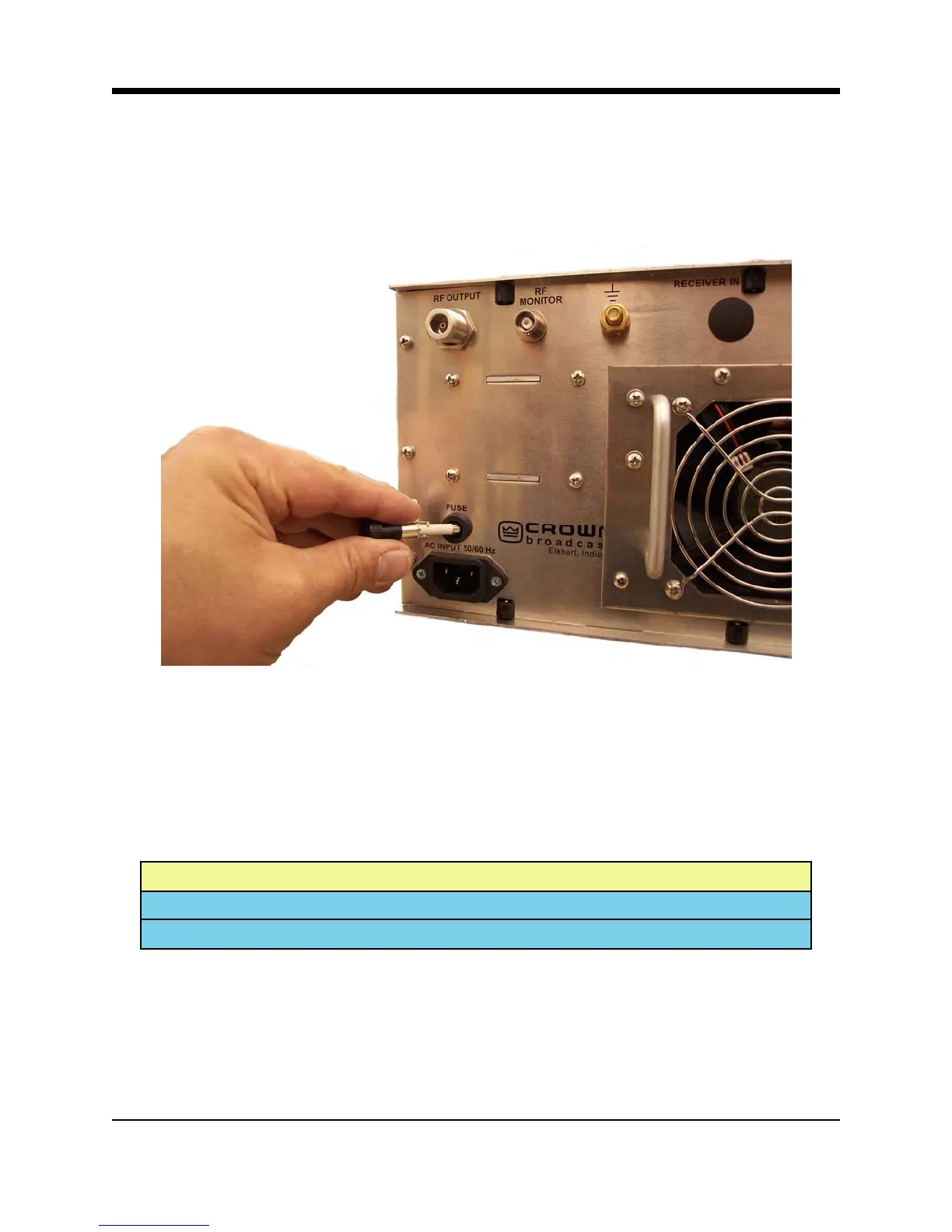

Illustration 2–3 Fuse Holder
AC Input Voltage Fuse Rating
120-200 VAC 12 Ampere
200-240 VAC 6 Ampere
Illustration 2–4 Fuse Reference Table
