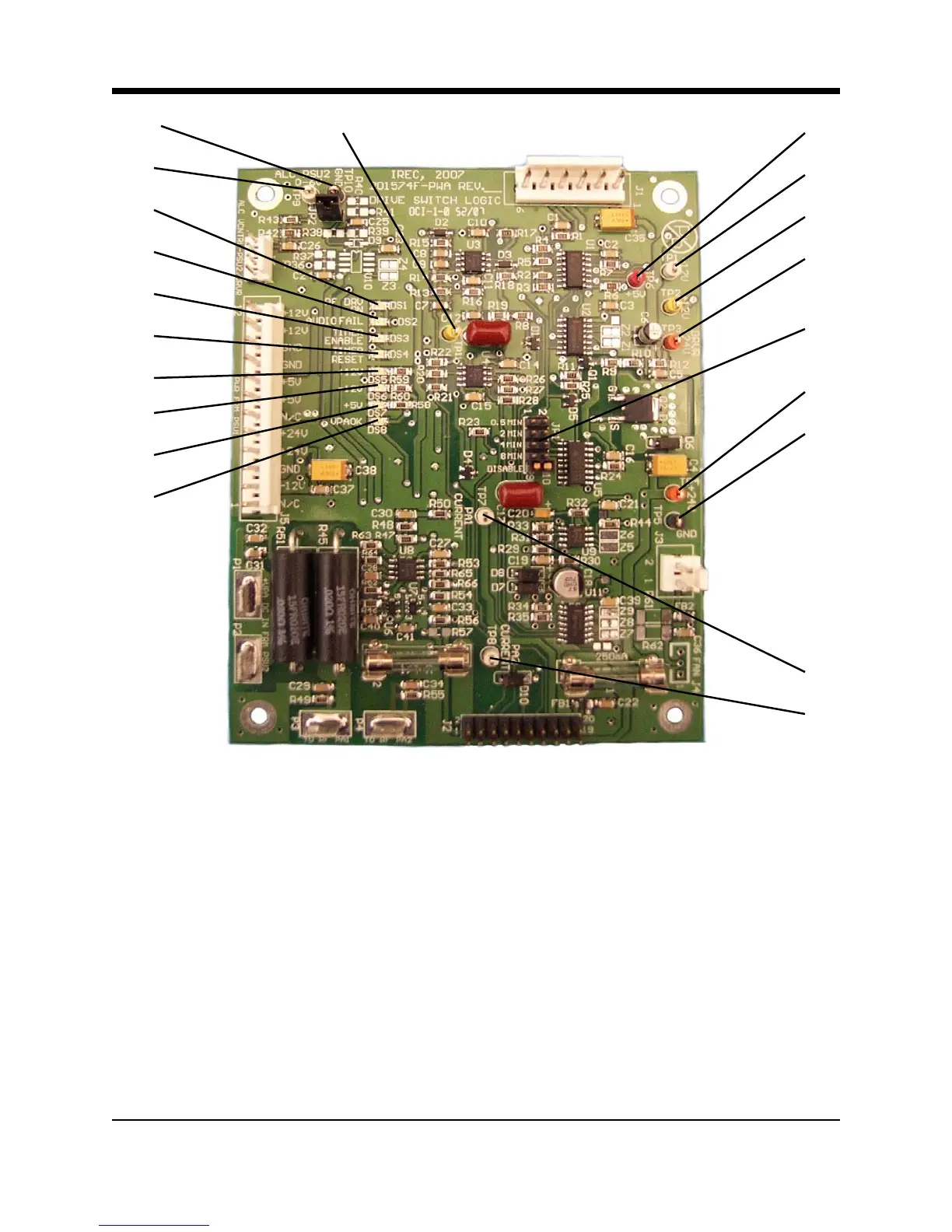

Illustration 4–7 Driver Switch Logic Board
4.8 RF Driver
The RF Driver module is mounted next to the heat sinks on the bottom of the RF Amplifier/
Combiner sub chassis. The driver amplifies the approximate 20 milliwatts from the frequency
synthesizer to about 20 watts to drive the RF power amplifiers. A CA2832 hybrid, high-gain,
wideband amplifier, operating at about 20 volts, provides about one watt of drive to a single
BLF245 MOSFET amplifier. The BLF245 stage operates from a supply voltage of approxi-
mately 24 volts.
The circuit board provides for input/output coupling and for power supply filtering.
