6.1 Views

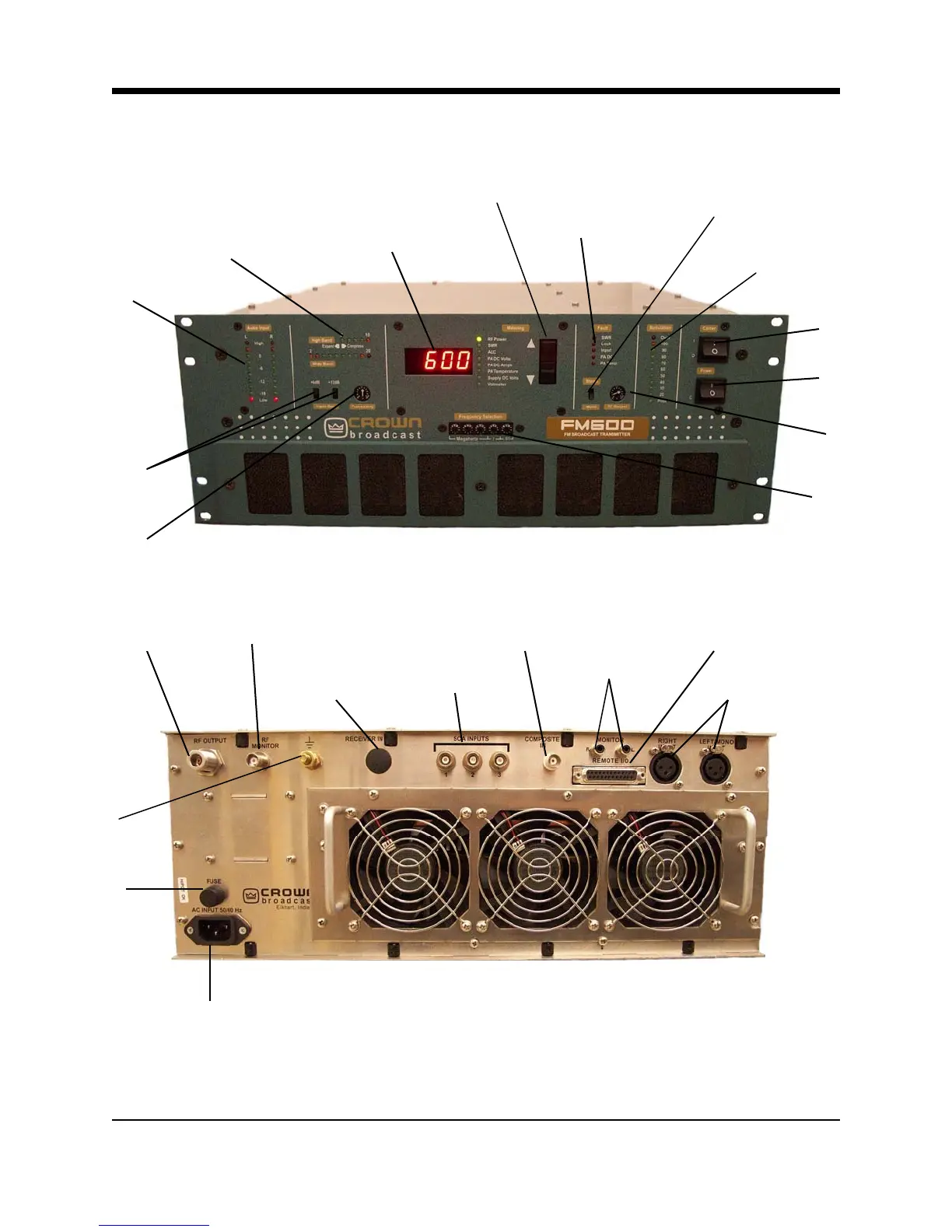

Illustration 6-1 Front View
Illustration 6-2 Rear View
AC Power Input
Receiver Input
(Optional)
RF Output Monitor
SCA Inputs
Composite Input
Remote I/O
Audio Monitors Audio Inputs
Input Level
Indicators
Input Gain
Switches
Processing Control
Frequency
Selector
Switches
Stereo/Mono
Switch
RF Output
Control
Power Switch
Gain
Reduction/Expansion
Indicators
Digital Multimeter
Multimeter Select
Fault Indicators
Modulation Indicators
Carrier Switch
6-2 FM600 User’s Manual
RF Output
Fuse
Holder
Ground
Stud
