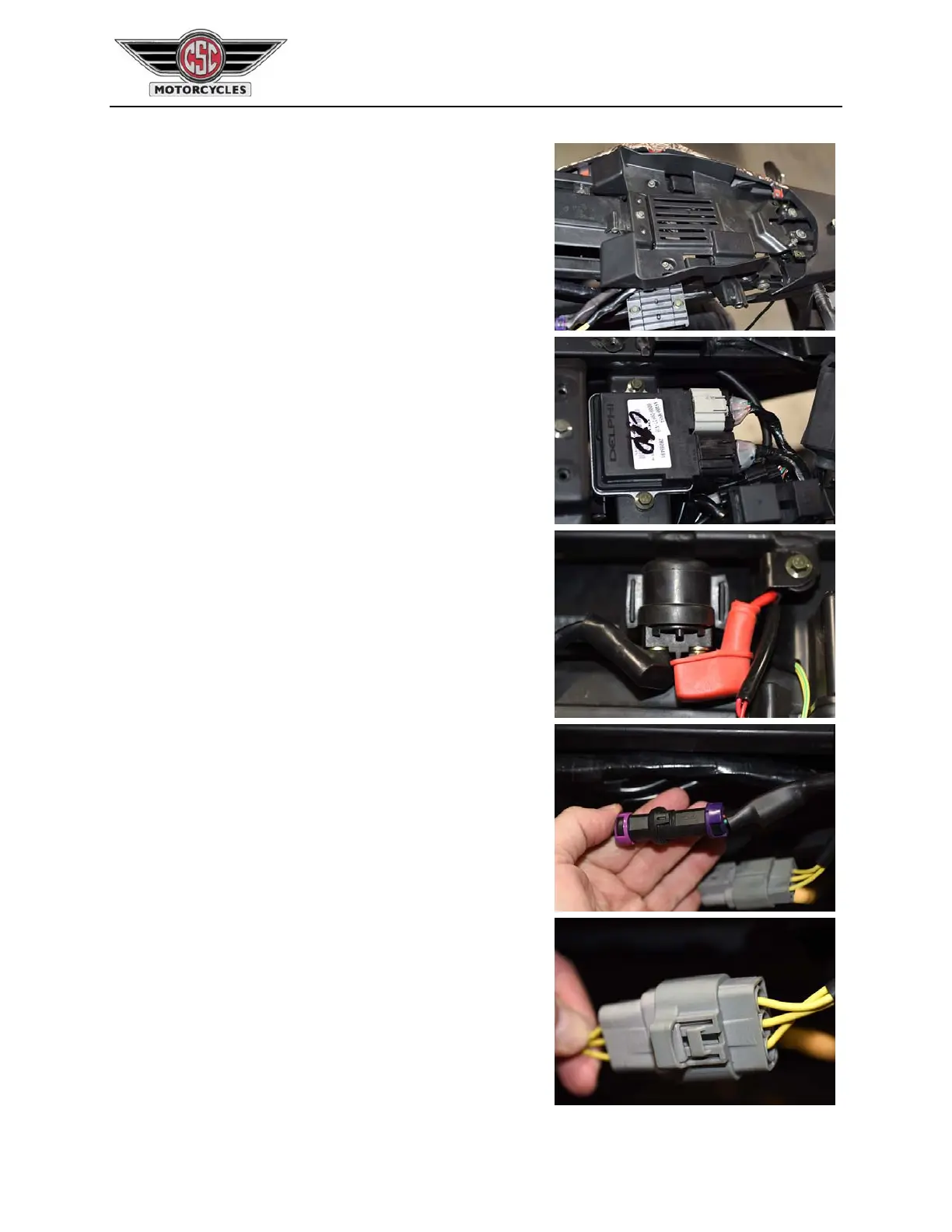

Theplasticpanundertherearseatcoversmanyofthe
electricalsystemscomponents,aswillbeseenbelow.
TheECUcontrolsthefuelinjectionsystemandengine
electricalmanagement.

Itislocateddirectlybeneaththecoverundertherearseat.
Thestarterrelayislocatedundertherider’sseat
totheleft
ofthebattery.
Thiselectricalconnectorislocatedundertherider’sseat
outboardoftheleftsideoftheframe.Thiscircuitprovides
energyfromthevoltageregulatortothebattery.

Ifthisconnectorisnotmatedproperly,themotorcyclewill
notchargethebattery.
Thiselectrical
connectoristhemainelectricalconnector
fromthestatortothevoltageregulator.

Itislocatedundertherider’sseatoutboardoftheleftsideof
theframe.

Ifthisconnectorisnotmatedproperly,themotorcyclewill
notchargethebattery.
