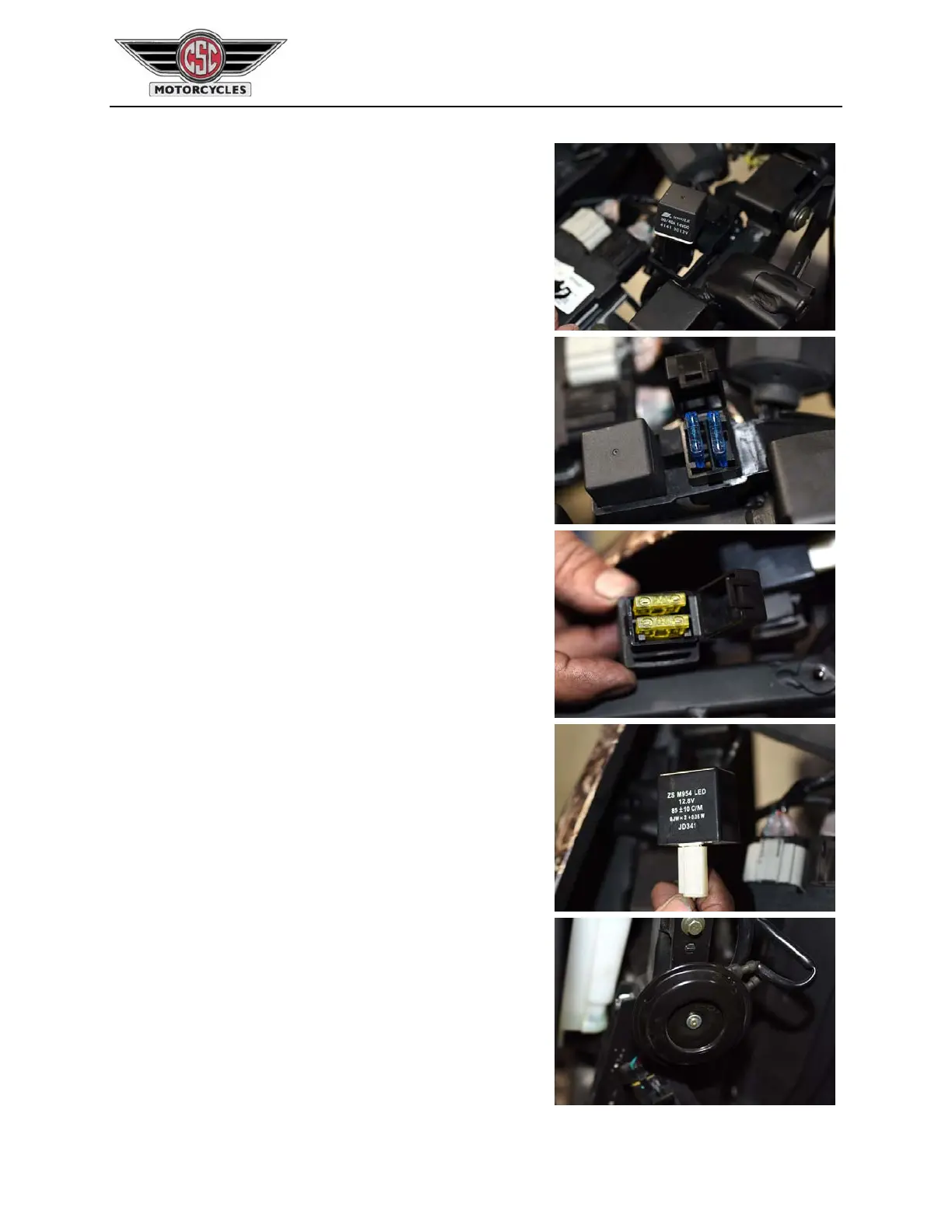

Thisistherelaythatcontrolspowertothefuelpump.

Itislocatedundertheplasticcoverunderthepassenger
seat,inboardoftheframe,infrontofthe15Afuseboxon
theleftsideofthemotorc ycle.
Themotorcycle’stwo15Afusesareinafuseboxlocated

undertheplasticcoverunderthepassengerseat,inboardof
theframe,ontheleftsideofthemotorcycle.Onefuseisa
spare;theotheristhefusefortheignitionandthefuel
pump.
Themotorcycle’stwo20Afusesareinafuseboxlocated
undertheplastic
coverunderthepassengerseat,inboardof
theframe,ontherightsideofthemotorcycle.Onefuseisa
spare;theotheristhefuseforbetweenthebatteryandthe
restofthemotorcycle.Ifthisfuseisopen,nopoweris
providedtoanythingonthemotorcycle.
This
smallprocessorcontrolsthemotorcycle’sturnsignals.

Itislocatedundertheplasticcoverunderthepassenger
seat,inboardoftheframe,ontherightsideofthe
motorcyclebehindthemainfuse.
Thehornisattachedtotheframebehindtheheadlight.
