10 Reader Firmware Upgrade
10.1 Reader Connection

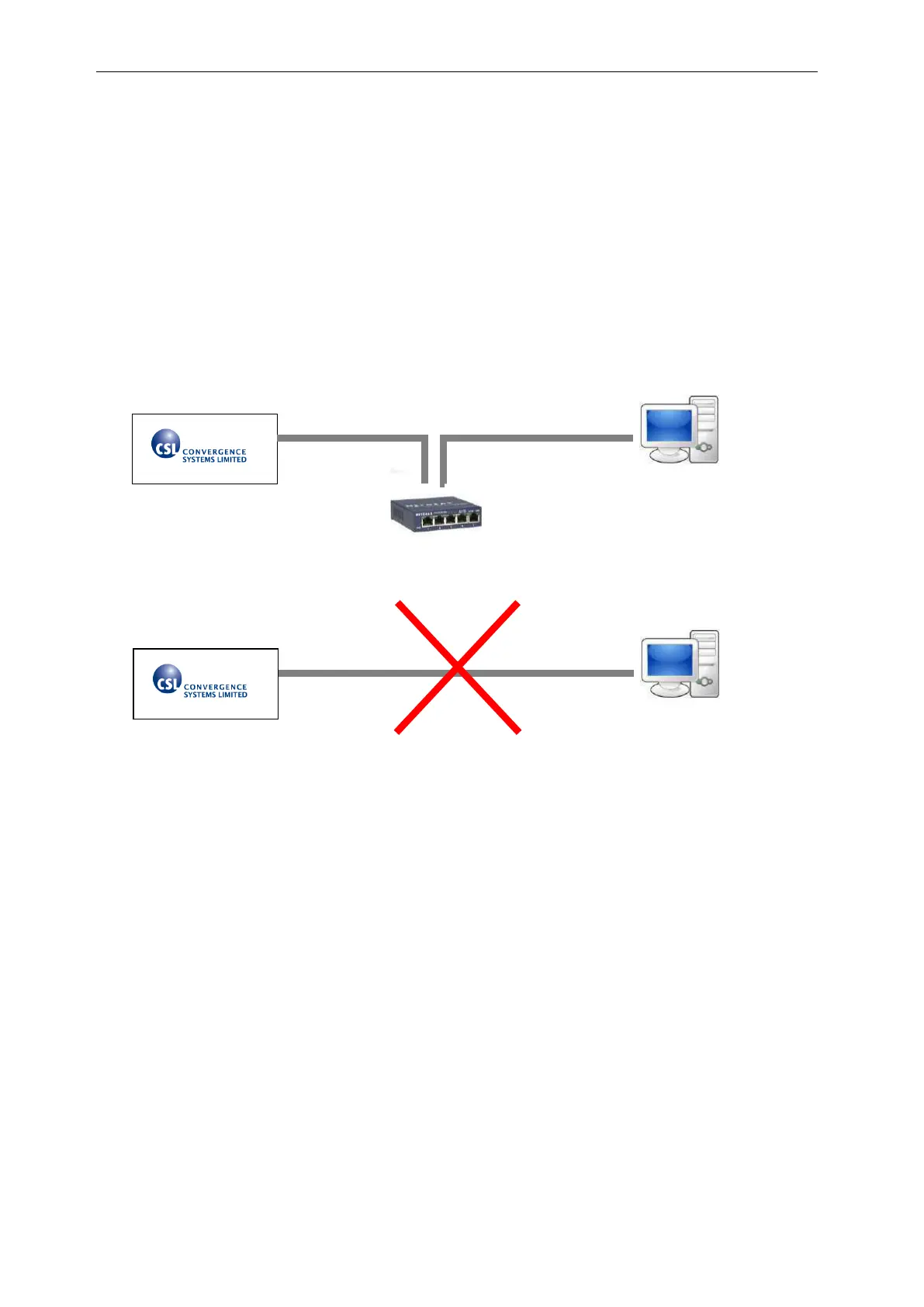

Before doing firmware upgrade, please ensure the reader is connected properly to PC via
an Ethernet Switch / Router and can be operated using CSL Demo App provided. (e.g.
run “Inventory” in CSL Demo App). DO NOT DIRECT CONNECT PC TO READER.
If the firmware upgrade fails during the process, user must POWER OFF and
POWER ON the reader again before redoing firmware upgrade.
CSL RFID Reader
(CS203 / CS468 / CS469)
Ethernet
Ethernet
PC or Laptop
Ethernet
Ethernet Switch / Router
CSL RFID Reader
(CS203 / CS468 / CS469)
Ethernet
Ethernet
PC or Laptop
Direct Connect
