CSL CS468 16-Port EPC CLASS 1 GEN 2 RFID READER
USER'S MANUAL, VERSION 2.0.1
Copyright © Convergence Systems Limited, All Rights Reserved
22
4.5 Reader Mechanical Mounting

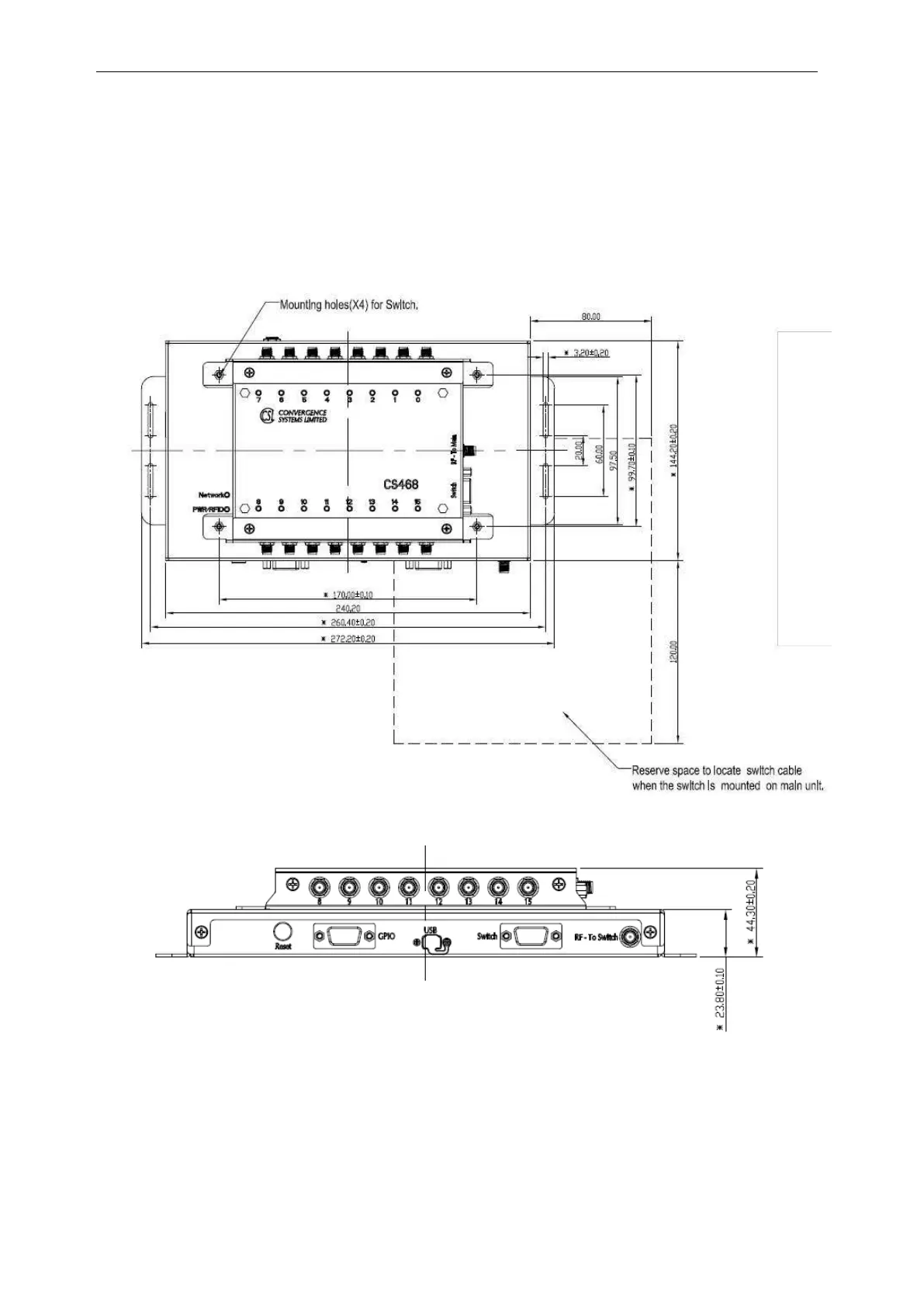

The mechanical drawing of the CS468 reader is as below:
