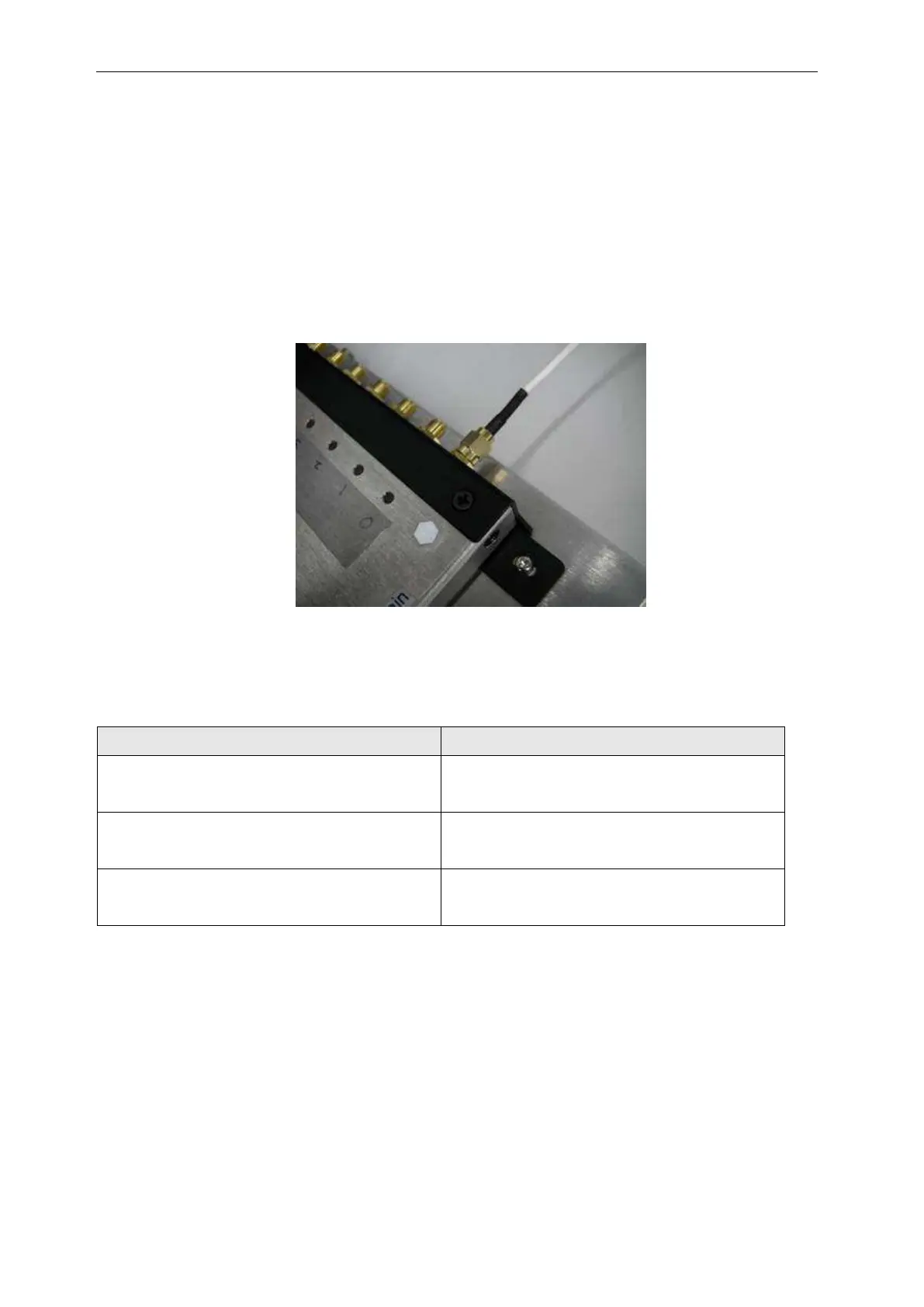

4.4 Cable Connection for CS468
4.4.1 Antenna Cable Connection for CS468
The CS468 reader has 16 antenna ports for connection up to 16 different mono-static antennas.
Please make sure the antenna ports are connected properly before running the application
program to active the port.
For connecting CS468 to different CSL antennas, you need different type of antenna cable as
below:
Antenna Model
Cable Model #
CS771 / CS772 / CS777 / CS778
CS811-1M
(RP SMA Plug – RG223 – RP TNC Jack)
CS713
CS810-1M
(RP SMA Plug – RG223 – SMA Plug)
CS790
CS812-1M
(RP SMA Plug – 2.8CBL – SMC Plug)
