CSL CS468 16-Port EPC CLASS 1 GEN 2 RFID READER
USER'S MANUAL, VERSION 2.0.1
Copyright © Convergence Systems Limited, All Rights Reserved
14
4.2 CS468INT Reader
The CSL CS468INT 16-Port RFID Reader is an EPCglobal Class 1 Gen 2 integrated reader
product.
Please DO NOT dismount the multiplexer box when use.

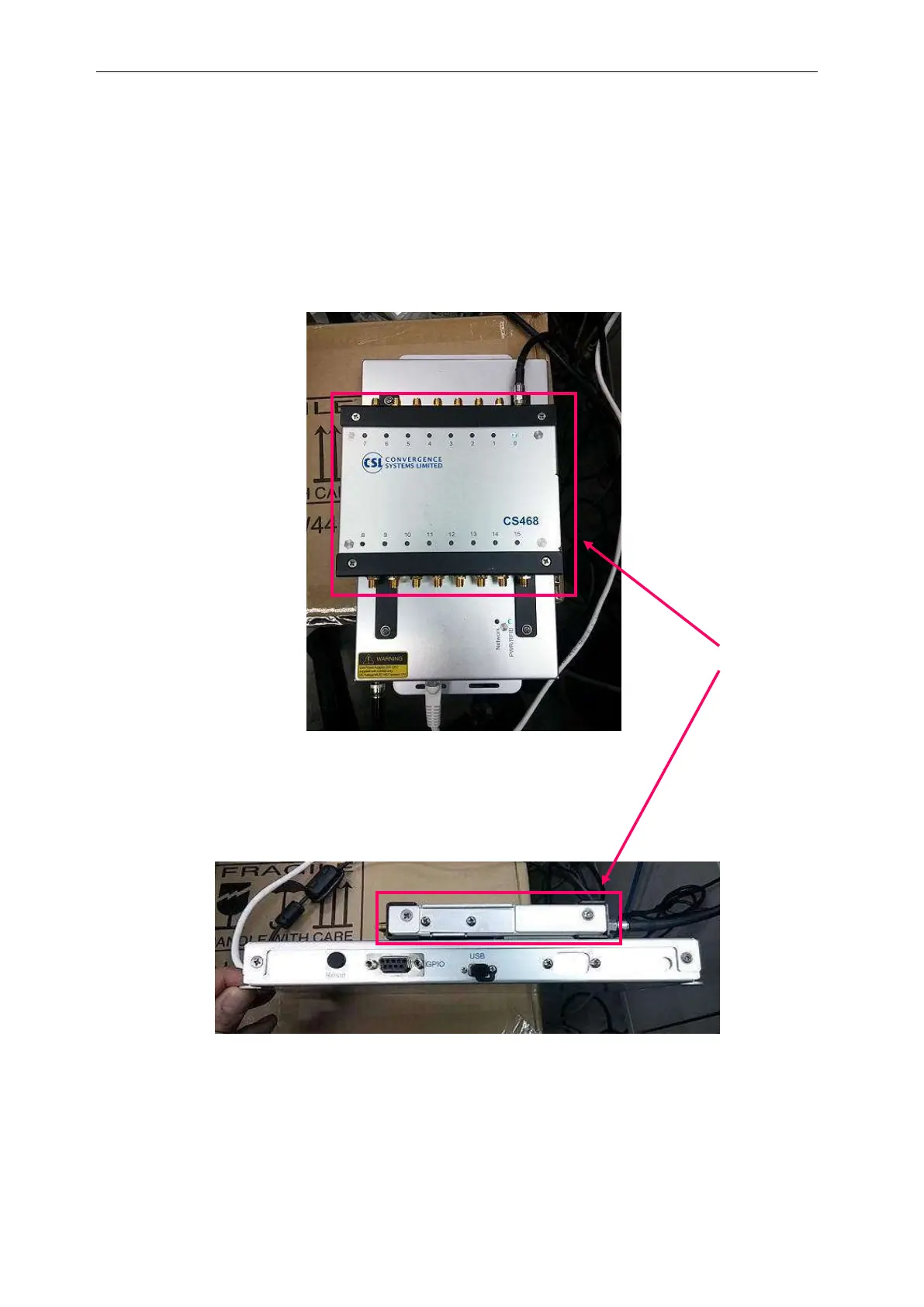

Figure 4-6 CS468INT Reader Top View
Figure 4-7 CS468INT Reader Side View
Multiplexer box
