CSL CS468 User Manual

CSL CS468 16-Port EPC CLASS 1 GEN 2 RFID READER
USER'S MANUAL, VERSION 2.0.1
Copyright © Convergence Systems Limited, All Rights Reserved
29
5.5.4 Assign CS468 IP and TCP Timeout
1. Select the available CS468 device. The selected one will be highlighted by a black border.
2. Press the “Assignment” button.
3. Change the CS468 device name, IP address, subnet mask, gateway and trusted server IP and
press “Assign”.
4. “TrustedIP” is the IP address of the server for controlling CS468. Once this “Trusted
Enable” is selected, only this trusted server can control the CS468.
5. After that, the network configuration of the device is set.

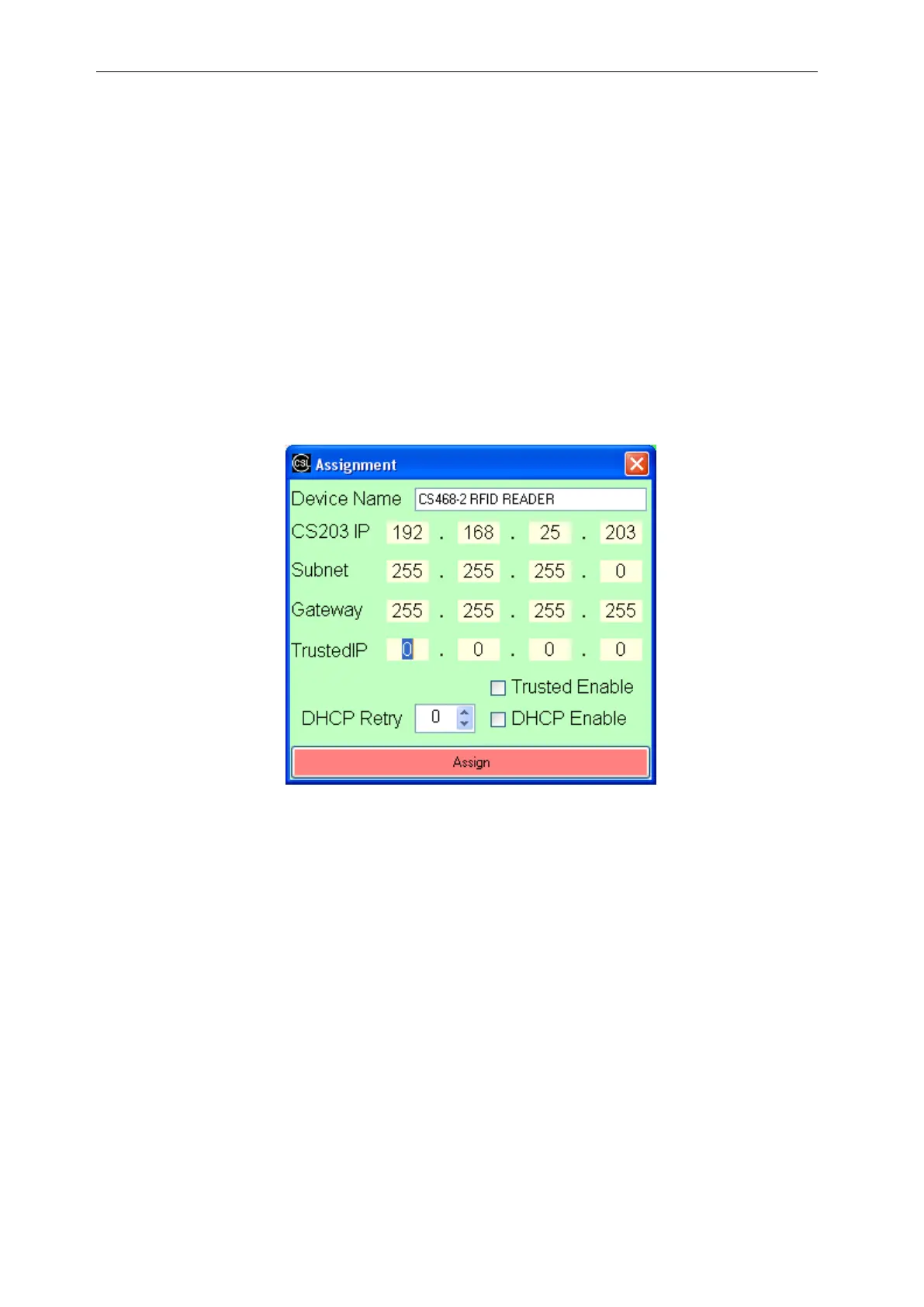

Fig. 5-3. Assign IP

CSL CS468 Specifications

General

Brand	CSL
Model	CS468
Category	Rfid Systems
Language	English
