CSL CS468 - Read Tid, User Bank and Save Tag Data in Log File (C# Demo App )

CSL CS468 16-Port EPC CLASS 1 GEN 2 RFID READER
USER'S MANUAL, VERSION 2.0.1
Copyright © Convergence Systems Limited, All Rights Reserved
89
7.14 Read TID, User Bank and Save Tag Data in Log File (C# Demo
App)

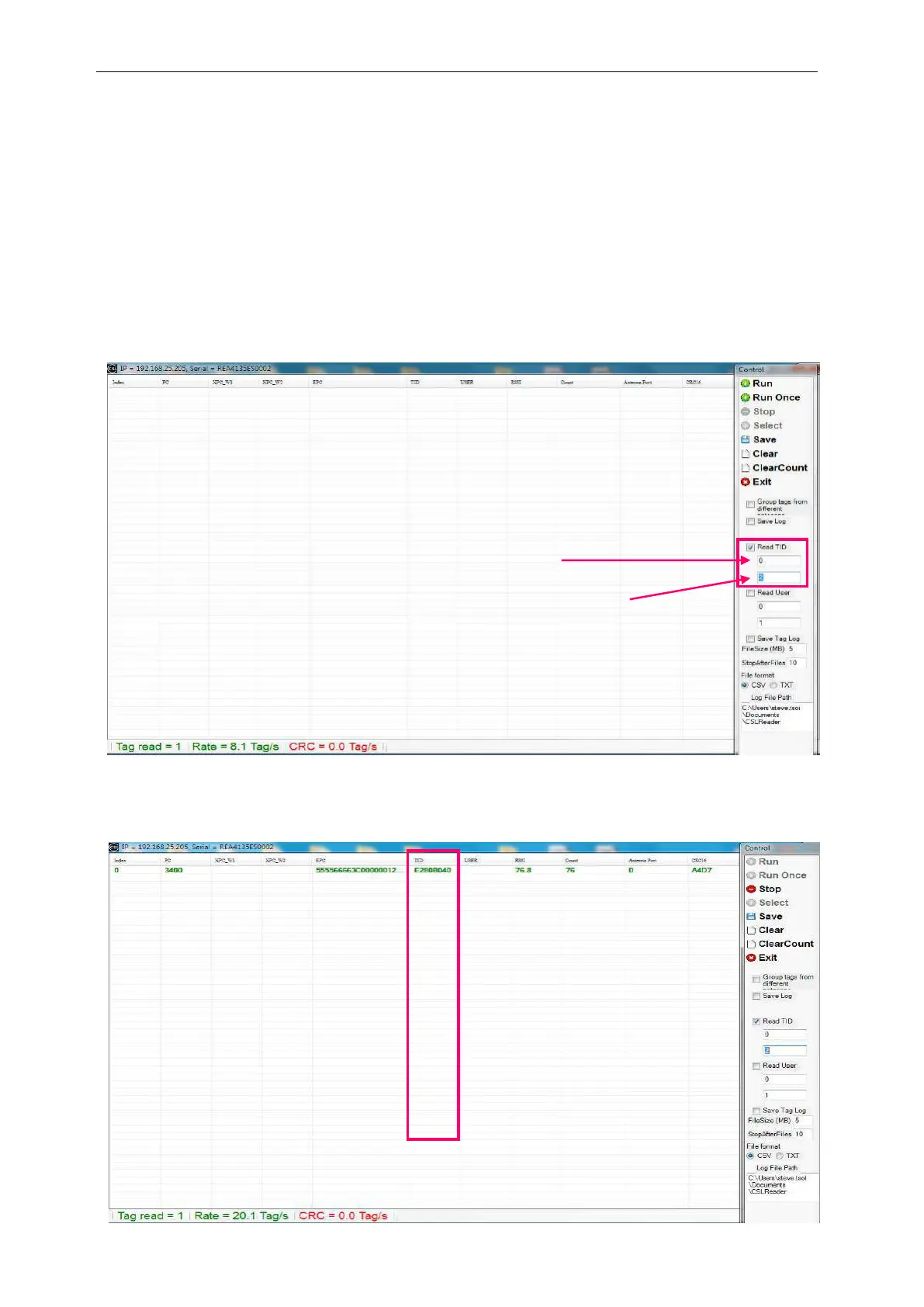

For RFID Tag with TID bank available, user can use C# Demo App to read TID data.
Go to “Inventory” in Demo App. Tick the checkbox in the field “Read TID”. Fill in the blanks for
offset value and number of word read from TID bank.
Click “Run” and check the EPC to verify the tag with TID data available, TID data can be checked
in “TID” column.
Offset
Number of Word
read from TID
bank
