CSL
CS468 16-Port EPC CLASS 1 GEN 2 RFI
D
READER
USER'S
MANU
A
L,
VERSION
2.0.1
Copyright ©
Convergence Systems Limited,
All Rig
hts Reserved
35
6
C# Demo
A
pplication
Program Operation

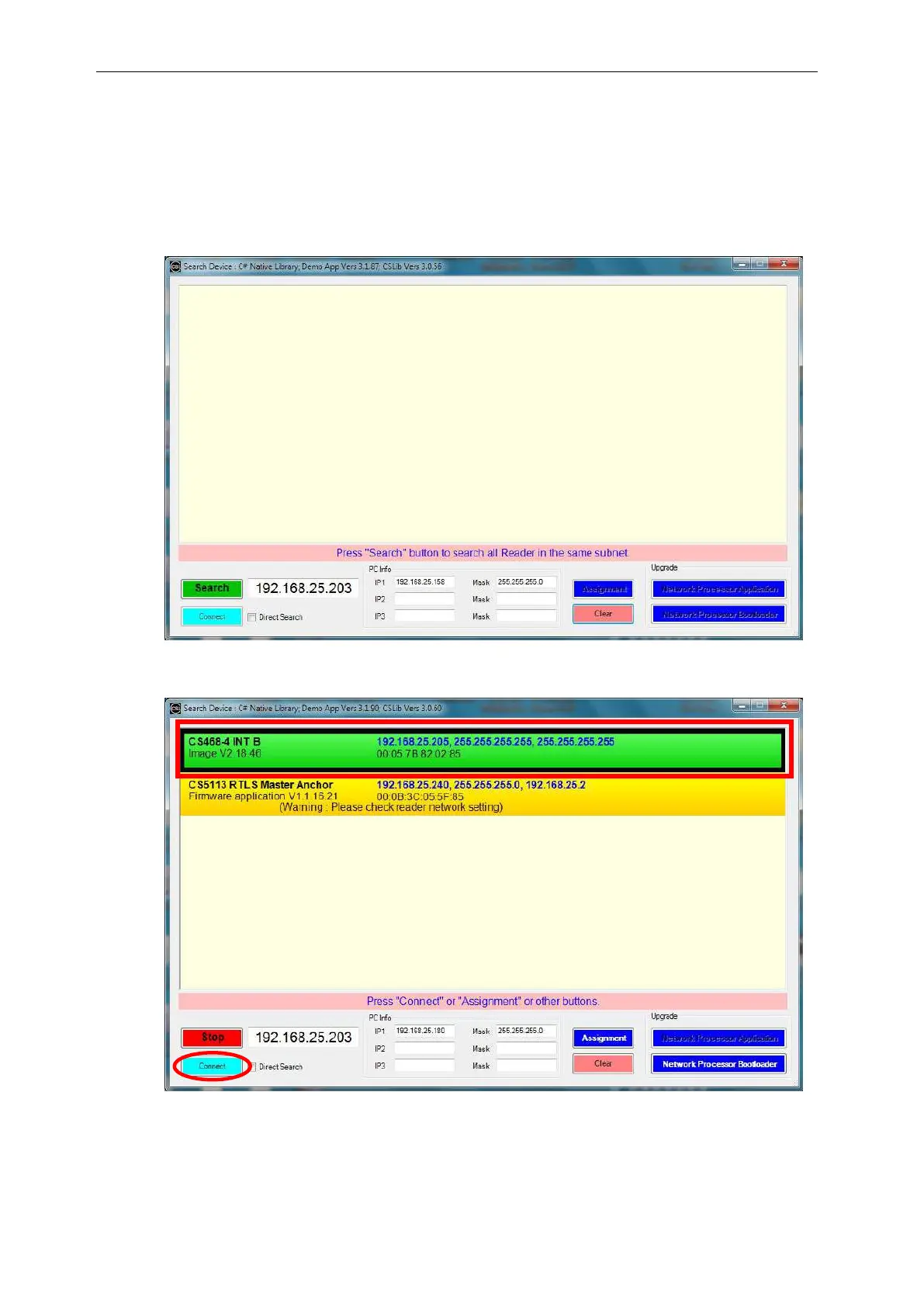

6.1
Searching for
CS468 device
Click
“
S
earch”
button to search device in the
same network
.
Choose specific device to connect.
34
36
Table of Contents
1 Content
2
Table of Contents
2
2 Fcc Statement
5
3 Introduction
6
Product Package
6
Basic Package Content
6
Product Specifications
7
4 Hardware Installation
11
Hardware Content of Shipment Package
11
Cs468 Reader
12
Cs468Int Reader
14
Operating Setup
15
Cable Connection for Cs468
17
Antenna Cable Connection for Cs468
17
Gpio Cable Connection for Cs468
18
Csl Gpio Board
21
Reader Mechanical Mounting
22
5 Software Installation
23
Software Content of Shipment Package
23
Pc Side Prerequisites
25
Default Ex-Factory IP Settings
25
Changing Ip Address
26
Demo Application - "C# Native Single Reader on Windows os with User Interface
27
Hardware Setup
27
Software Setup
27
Search Cs468
28
Assign Cs468 Ip and Tcp Timeout
29
Status Verification
30
Exception Situations
31
Finding a "Lost" CS468
32
6 C# Demo Application Program Operation
35
Searching for Cs468 Device
35
Network Configuration of Cs468
36
Connecting to Cs468
37
Main Menu
38
Inventory
39
Read / Write
41
Write any
46
Geiger Counter Search
47
Tag Security
48
User Perm-Lock
50
Kill
53
Setup
54
Middleware Connectivity
54
7 Reader Configuration
55
Reader Configuration Overview
55
IP Configuration (C# and Java Demo App)
56
Reconnect Timeout (C# Demo App)
57
Interface to Reader (C# Demo App)
58
Antenna Port and Sequence (C# and Java Demo App)
59
Power Level (C# and Java Demo App)
63
Country , Frequency and Fixed Channel (C# and Java Demo App )
65
RSSI Filter (C# and Java Demo App)
73
Link Profile (C# and Java Demo App)
78
Target and Togglea / B Flag (C# and Java Demo App )
81
Session and Tag Selection (C# and Java Demo App)
83
Slot -Count Parameter Qand Dwell Time (C# and Java Demo App )
84
Inventory Algorithm : Fix Qand Dynamicq Algorithm (C# and Java Demo App )
85
Read Tid, User Bank and Save Tag Data in Log File (C# Demo App )
89
8 Pc Software Upgrade
96
Pc Demo Application Upgrade
96
Pc Demo Application Upgrade - for User
97
Pc Demo Application Upgrade - for Developer
99
9 Software Development Kit for Developer
102
Introduction
102
Program Structure
102
Build Project Requirements
103
10 Reader Firmware Upgrade
104
Reader Connection
104
Firmware Upgrade Procedure Overview
105
Network Processor Firmware Upgrade Procedure
107
Rfid Processor Firmware Upgrade Procedure
115
Procedure for Csl Reader with Rfid Processor App Version 1.3. XX or 1.4. XX
115
Procedure for Csl Reader with Rfid Processor App Version 1.5. XX or after
115
11 Regulatory Information
135
Federal Communications Commission (Fcc) Compliance
135
Appendix A. Rfid Basics
136
Appendix B. Operation Profiles and Gen2 Parameters
137
Appendix C. Rf Channels
141
Appendix D. Common Mistakes
143
Appendix E. Technical Support
144
