CSL CS468 16-Port EPC CLASS 1 GEN 2 RFID READER
USER'S MANUAL, VERSION 2.0.1
Copyright © Convergence Systems Limited, All Rights Reserved
4. Assign CS468 IP and TCP timeout
1. After that, you could re-assign the IP address to the reader as you want. Select the
available CS468. The selected one will be highlighted by a black border.
2. Press the “Assignment” button.
3. Change the CS468 IP, subnet mask, gateway and trusted server IP and press “Assign”.
4. “TrustedIP” is the IP address of the server for controlling CS468. Once this “Trusted
Enabled” is selected, only this trusted server can control the CS468.

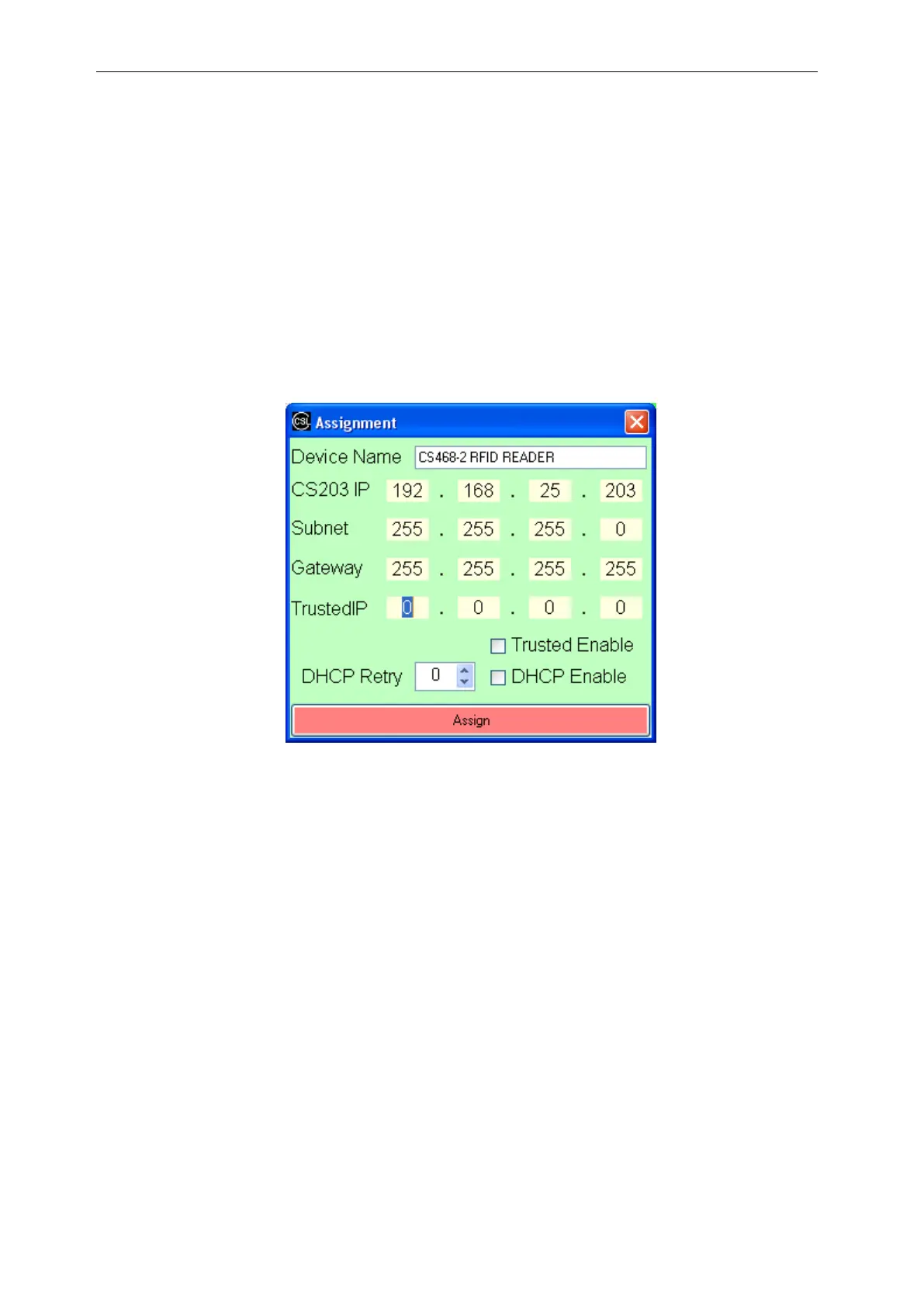

Fig. 5-6. Assign IP
