CSL CS468 16-Port EPC CLASS 1 GEN 2 RFID READER
USER'S MANUAL, VERSION 2.0.1
Copyright © Convergence Systems Limited, All Rights Reserved
4.3 Operating Setup
On CS468, there are 2 cables have to be connected between the reader main unit and the
antenna multiplexer: the RF cable and serial control cable.
CS468 has two power up modes: 12V power supply mode and PoE mode.
For 12V power supply mode, the connection diagram is as below:

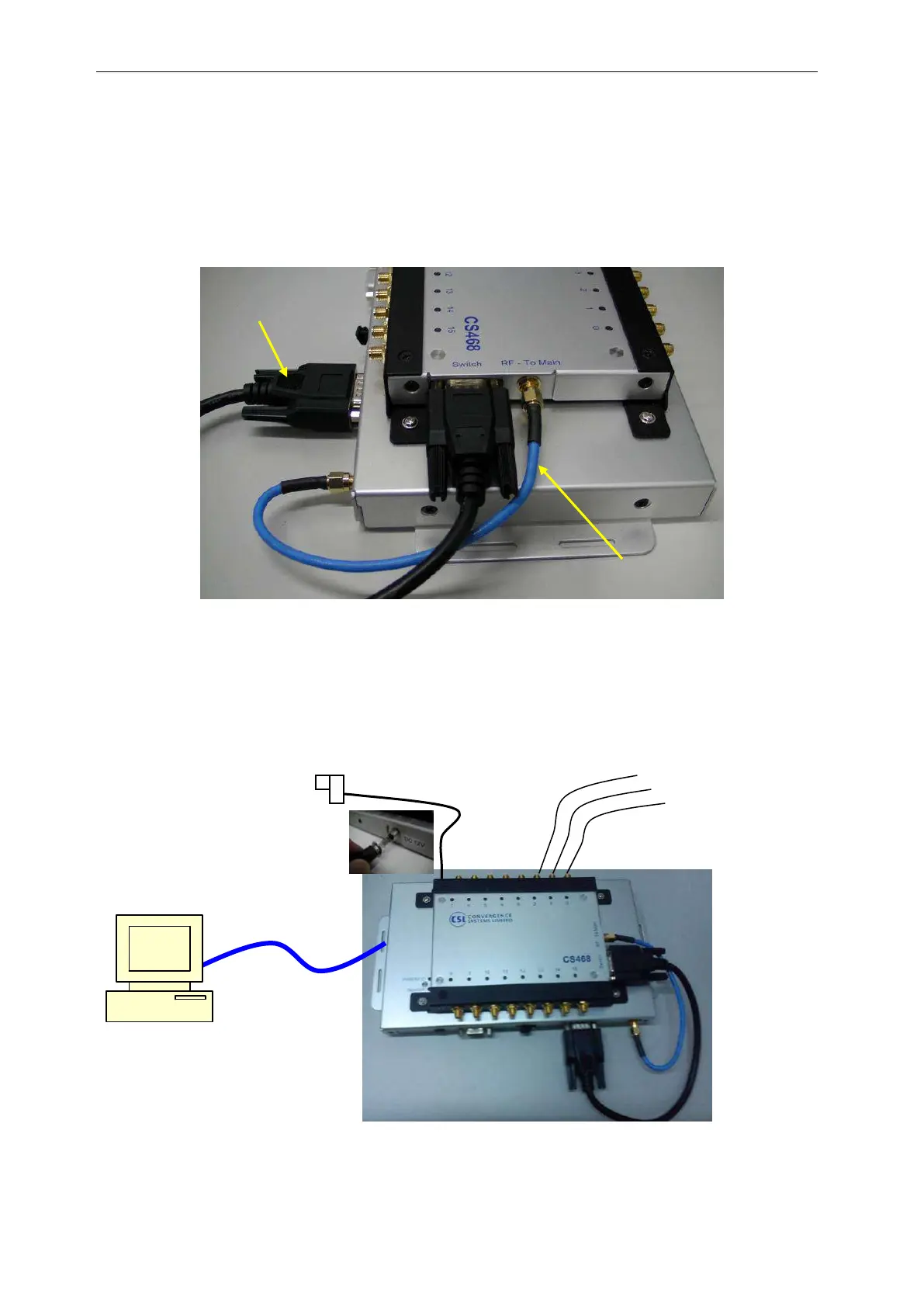

Figure 4-6 12V power supply Setup
