CSL CS468 16-Port EPC CLASS 1 GEN 2 RFID READER
USER'S MANUAL, VERSION 2.0.1
Copyright © Convergence Systems Limited, All Rights Reserved

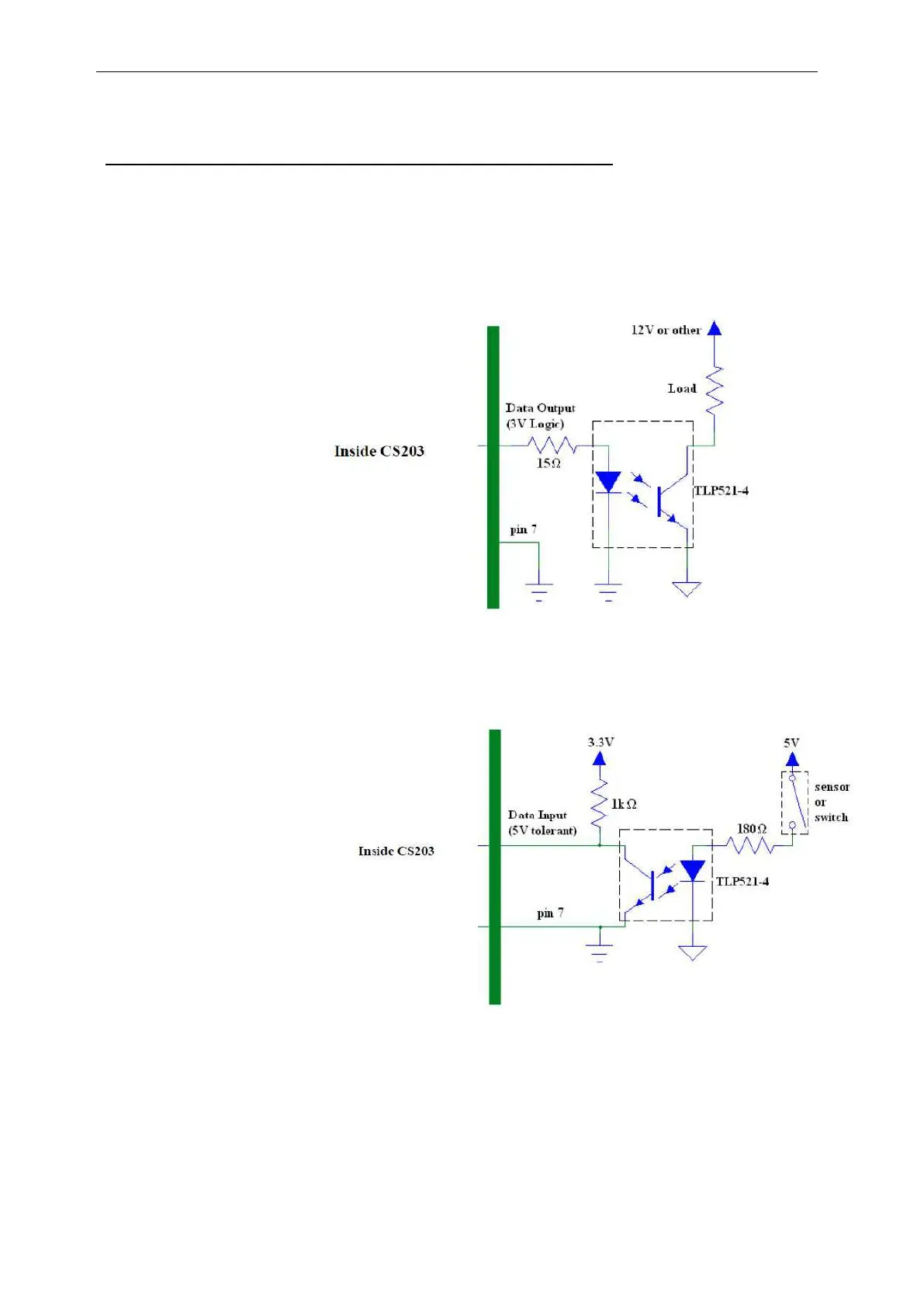

CS468 GPIO Connection Example – Optical Coupler
GPIO port can be connected in the following way with optical couplers, switch and
resistor.
For GPI0 (Blue) and GPI1 (Red)
For GPO0 (Green) and GPO1 (Yellow)
