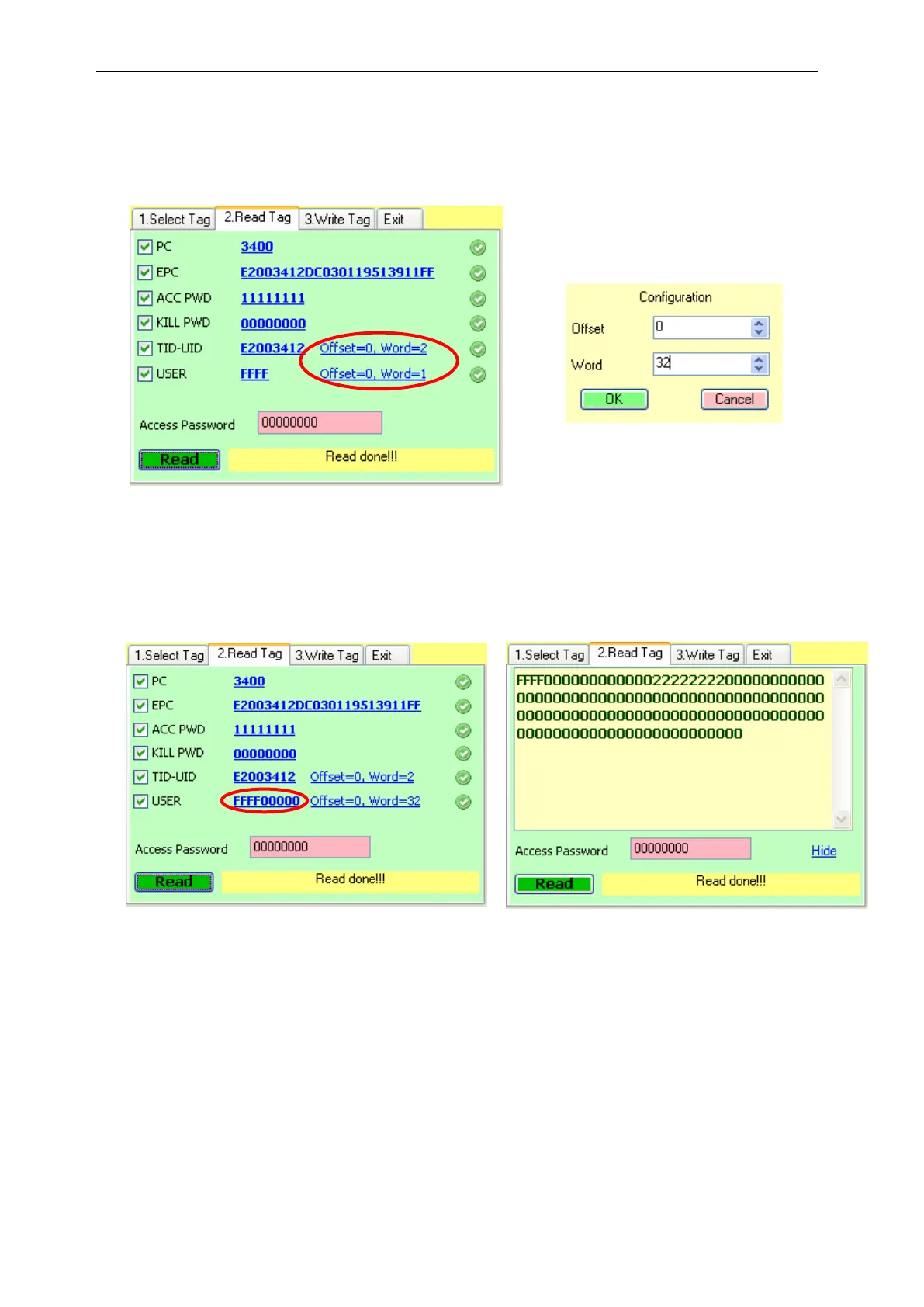

5. For the “TID-UID” and “User Memory” banks, you could also change the offset word and
length of words you want to read. Click on the red lines and change values. After entering
the “Offset” and “Word” (in terms of words), click the “Read” button to read the tag.
If the length of the user memory read is too long to be displayed on screen, click on the
data and it will expand to display all the data.
If the memory bank is locked, input the access password in “Access Password” field to
read the tag data.
