2.4 Installation of SFP Modules

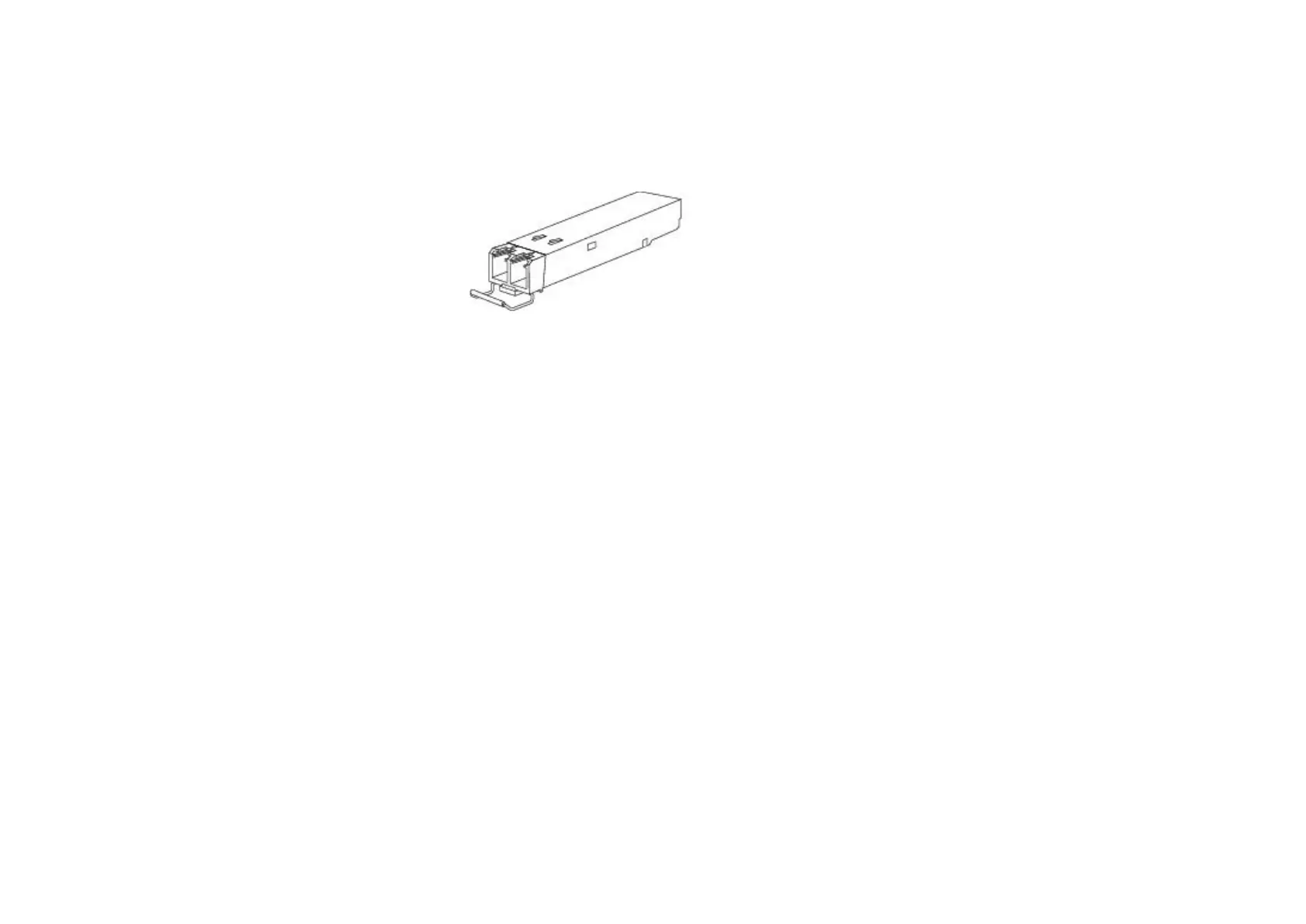

CTC Union supplied SFP modules are of the Bale Clasp type. The bale clasp pluggable module has a bale clasp that secures the module
into the SFP cage.
2.4.1 Inserting a Bale Clasp SFP Module into the Cage
Step 1. Close the bale clasp upward before inserting the pluggable module.
Step 2. Line up the SFP module with the port, and slide it into the cage. Seat it. Attach fiber cable.
2.4.2 Removing a Bale Clasp SFP Module
Step 1. Remove fiber cable. Open the bale clasp on the SFP module. Press the clasp downward with your index finger.
Step 2. Grasp the SFP module between your thumb and index finger and carefully remove it from the SFP cage.
