CTC Union FMC-2000MS - Ports

42

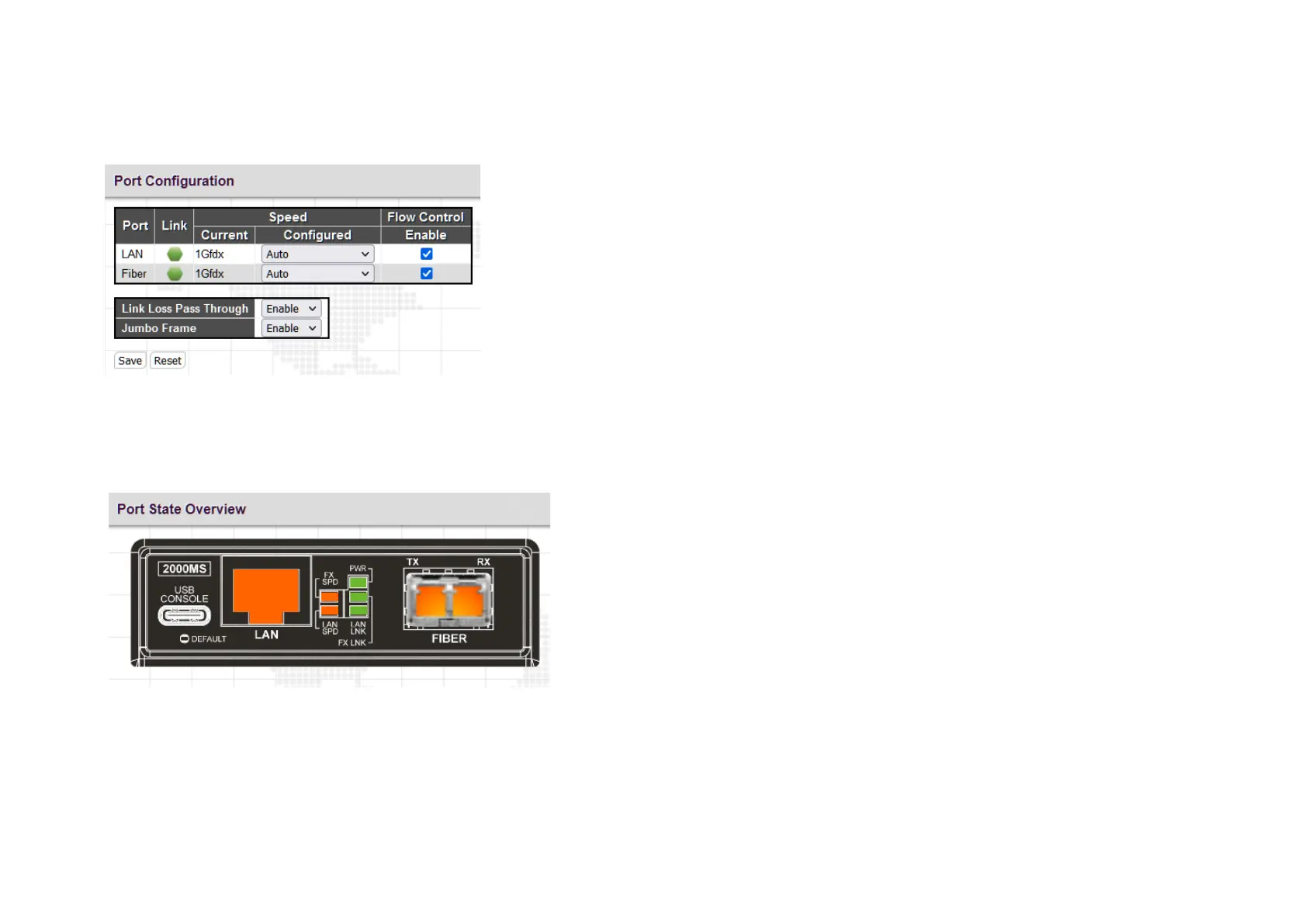

3.2.10 Ports
Configuration
Set the configured link speed/duplex or Auto for the LAN and Fiber port. Enable or disable flow control (802.3x) by checkbox. Use pull-downs
to enable/disable LLPT and jumbo frames.
State Overview
This is a graphical view of the real-time state of the ports and the LEDs. The orange FX SPD and LAN SPD indicate gigabit links.
