CLUTCH
3-11
D569-W03 June-2003

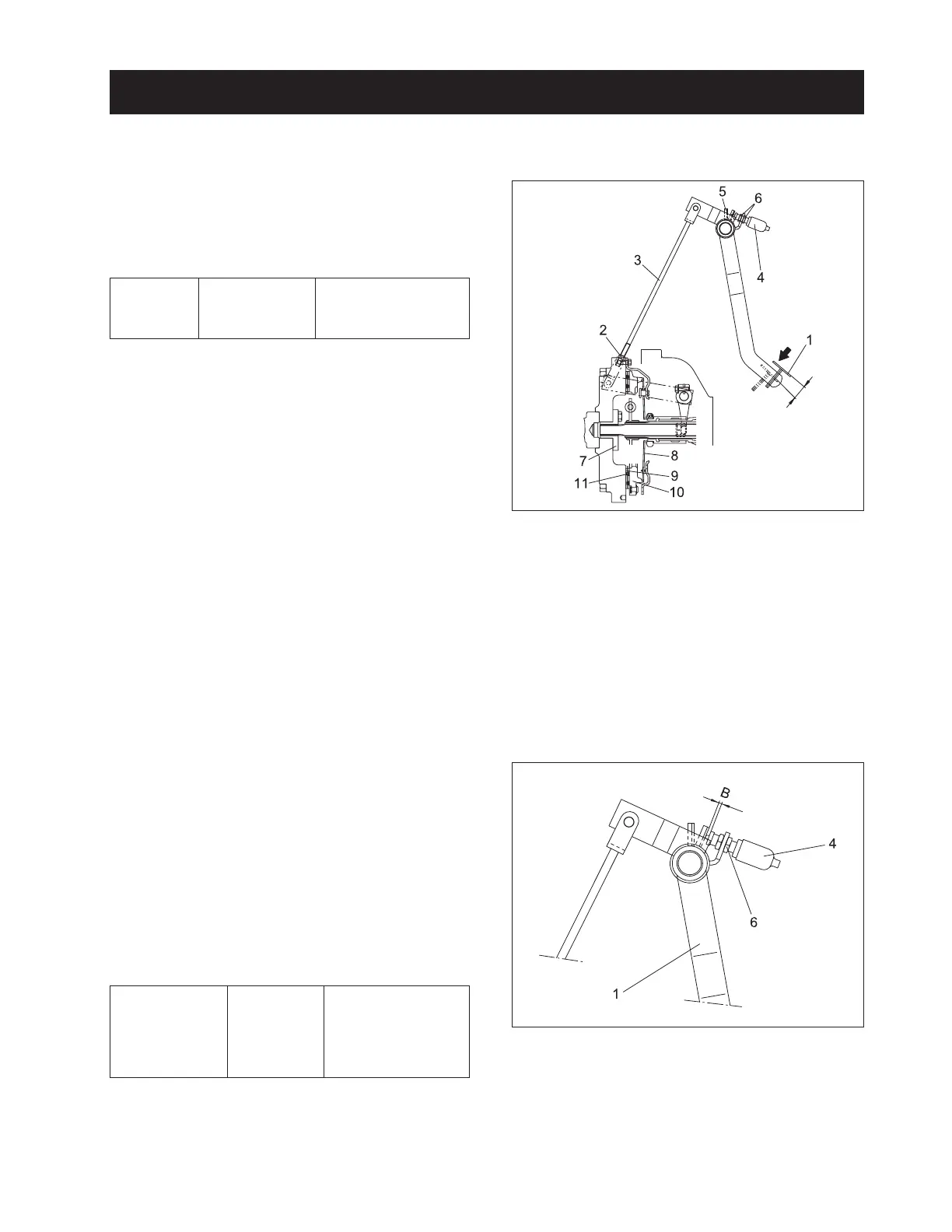

5. ADJUSTMENT OF PEDAL
5.1 DEFLECTION OF CLUTCH PEDAL
A. Measure deflection of pedal by pushing clutch pedal
(1) with hand.
B. If the measurement is out of the factory spec, re-
move lock nut (2) on clutch wire and adjust the
length.
(1) Clutch Pedal (7) Spline Hub
(2) Lock Nut (8) Spring
(3) Rod (9) Clutch Disc
(4) Safe Starting Switch (10) Plate, Pressure
(5) Bracket (11) Rivet
(6) Lock Nut
5.2 CLEARANCE BETWEEN SAFE
STARTNIG SWITCH AND LINK
A. While clutch pedal (1) is stepped down, measure
the clearance between safe starting switch (4) and
clutch pedal link section.
B. If the measurement is out of the factory spec. re-
move lock nut (6) and adjust while shifting the safe
starting switch.
C. In the state of stepped clutch pedal after adjust-
ment : started if the starting key is ON.
In the state of clutch pedal not stepped : confirm the
start is impossible if the starting key is ON.
Deflection of
clutch pedal
(A)
Factory spec 20 ~ 30 mm
0.79 ~ 1.18 in.
Clearance in
joint between
safe starting
switch and
clutch pedal (B)
Factory spec. 2 ~ 5 mm
0.079 ~ 0.197 in.
(1) Clutch Pedal (6) Lock Nut
(4) Safe Starting Switch
569W314A
569W315A
