BRAKE
7-11
D569-W02 May-2003

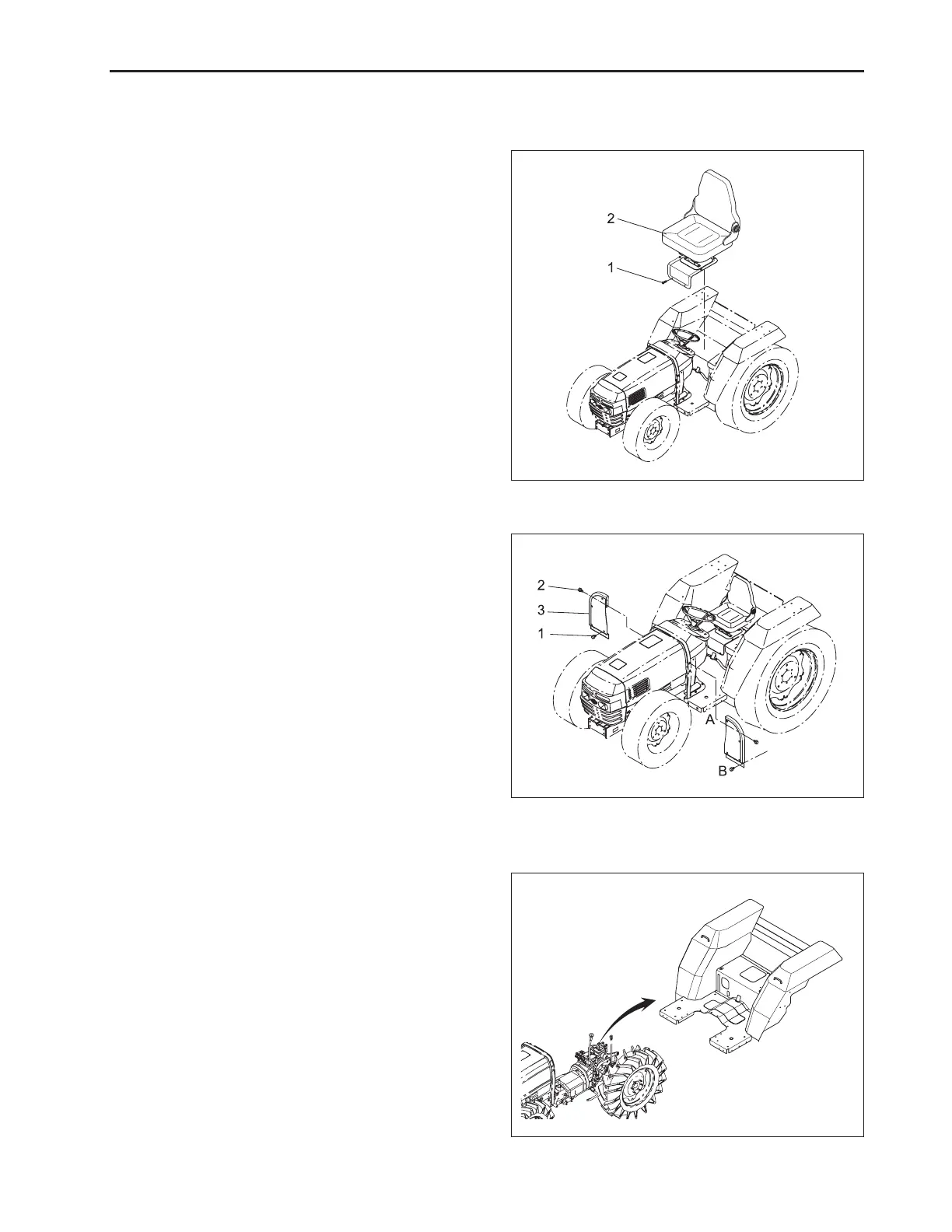

Fender, Floor Seat and Platform Assembly
1. Remove the fender (1, 2), floor seat and platform as
a unit.
569W716A
Cover
1. Remove the blots (1), (2) and the cover assembly
(3).
(1) Bolt (3) Cover
(2) Bolt
569W715A
5.3 SEPARATING REAR FENDERS
AND PLATFORM ASSEMBLY
Preparation
1. Remove the Rops.
2. Remove the Bolts (1) and take out the seat Assem-
bly (2).
(1) Bolt (2) Seat Assembly
569W714A
