CHAPTER 5 8454
5-12
D569-W03 June-2003
5. TO DISASSEMBLING AND TO ASSEMBLE
5.1 FRONT AXLE CASE AND FRONT AXLE
A. TO DISASSEMBLING
1. Remove sixteen M8 washer mounting bolts (3) on
front axle case (1) and front axle cover (2) to Disas-
sembling the front axle group out of front axle case
(1).
2. Remove 6208 ball bearing (4) and Disassembling
39 bevel gear (5).
3. Take mounting snap ring (6) out of 6209 ball bearing.
4. Lightly knock front axle (8) forward to
Disassembling.
5. Disassembling floating seal ass’y (9) on front axle
(8) and front axle cover (2).
B. TO ASSEMBLE
1. Install 6209 ball bearing (7) on front axle cover (2).
2. Install float seal ass’y (9) on the opposite to 6209
ball bearing (7) of front axle cover (2).
3. Install floating seal ass’y (9) on the front axle with
front axle (8) inserted to fix with 6209 ball bearing
(7).
4. Install mounting snap ring (6) of 6209 ball bearing
(7) on front axle (8).
5. Install 39 bevel gear (5) and then 6208 ball bearing
(4).
6. Install O-ring (12) on the circumference of the front
axle cover and apply grease 7. Insert front axle case
(1) and front axle cover (2) into the assembly holes
as aligned to tighten with sixteen M8 washer mount-
ing bolts (3).

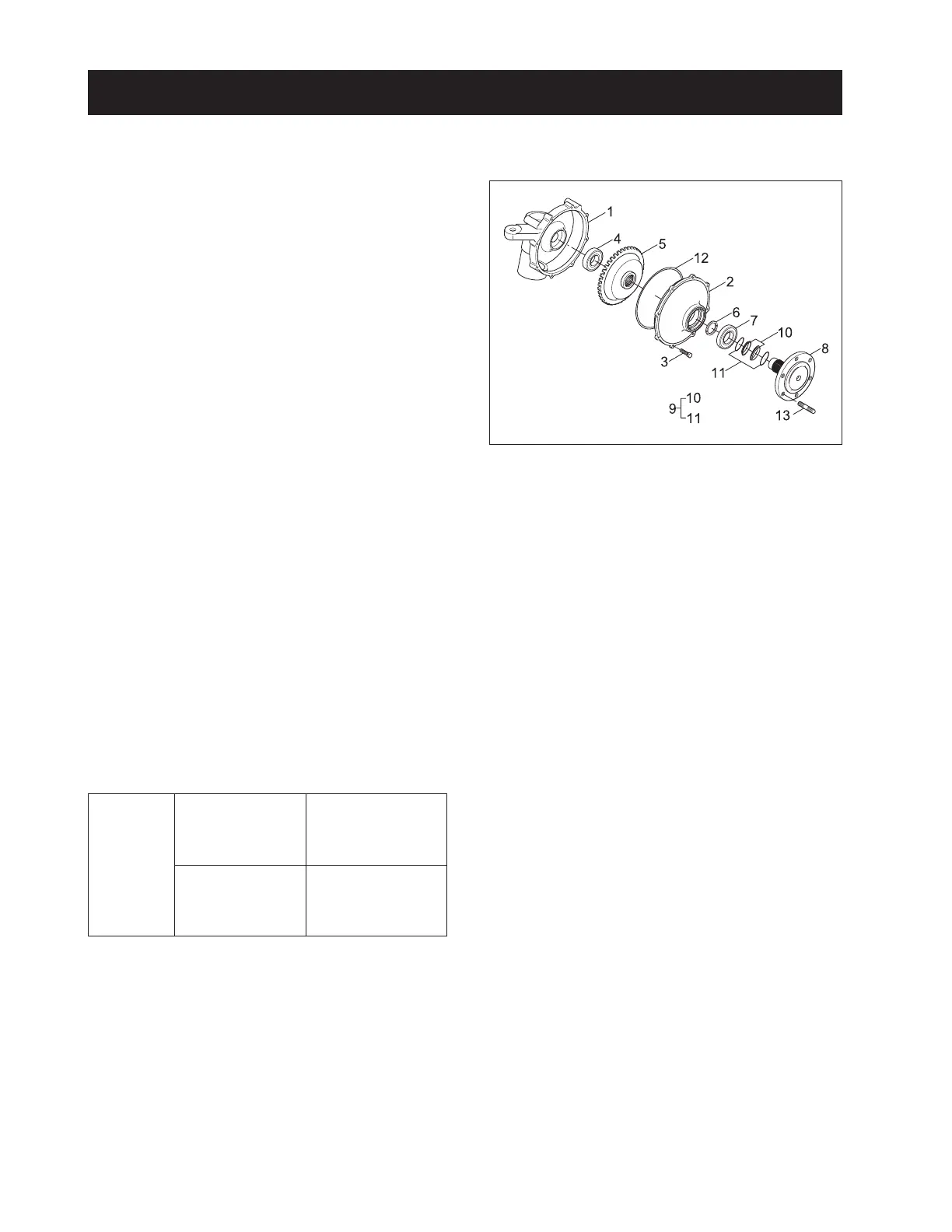

(1) Front Axle Case (8) Front Axle
(2) Front Axle Cover (9) Float Seal Ass’y
(3) Bolt (10) Seal Ring
(4) Ball Bearing (11) O-Ring
(5) 39 Bevel Gear (12) O-Ring
(6) Snap Ring (13) Stud
(7) Ball Bearing
Tightening
torque
Stud (13) for
assembly of the
front axle ass’y
and the rim
Tightening bolt
of the front axle
cover
196.2 ~ 225.6 N·m
20.0 ~ 23.0 kgf·m
144.6 ~ 166.3 lbf·ft
23.5 ~ 27.4 N·m
2.40 ~ 2.80 kgf·m
17.3 ~ 20.2 lbf·ft
569W518B
