FRONT AXLE
5-11
D569-W02 May-2003

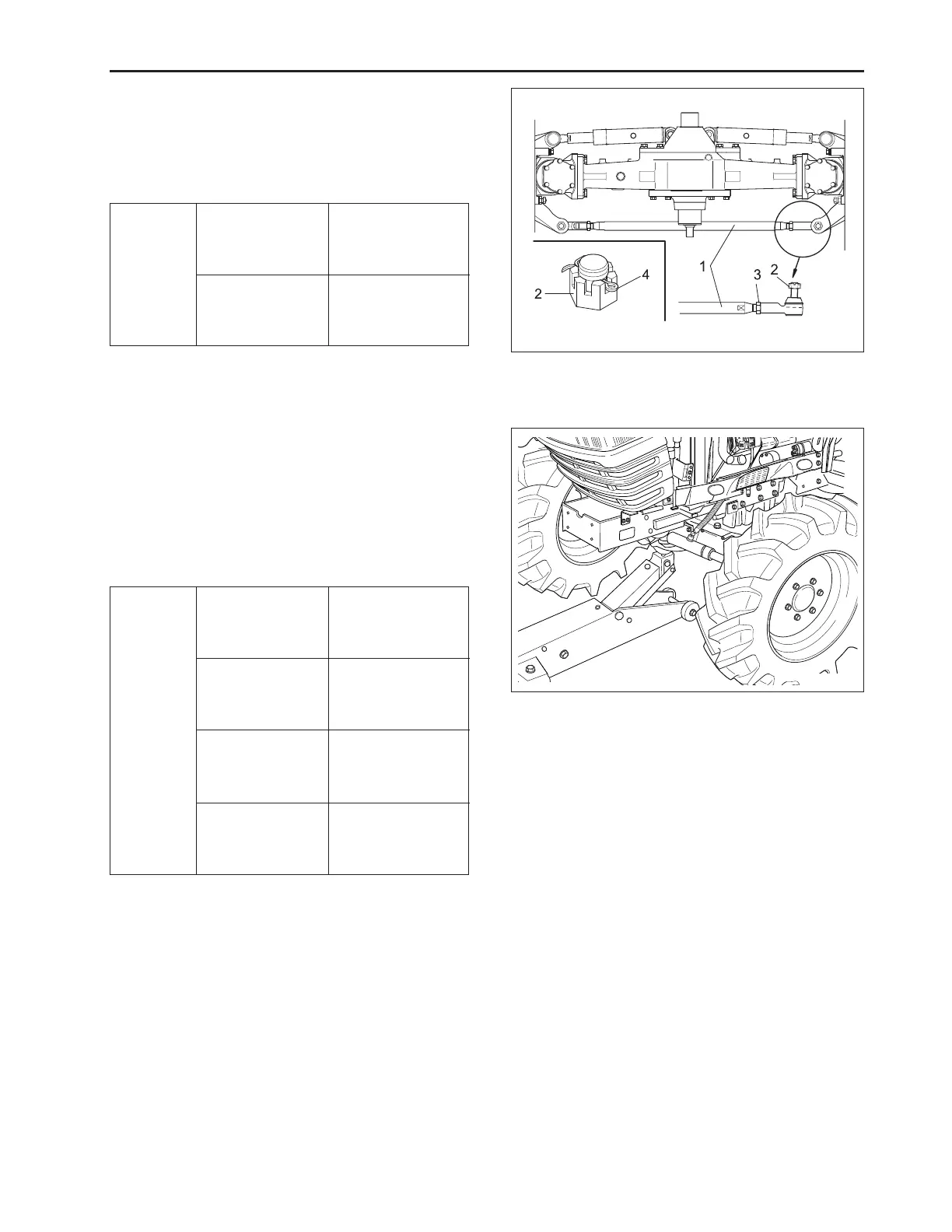

TIE-ROD
1. Remove the tie-rod. In this case, take special care
not to damage the tie-rod (1) and slotted nuts (2).
(When reassembling)
Tightening
torque
Slotted nut
Tie-rod lock nut
245.2 ~ 284.5 N·m
25.0 ~ 29.0 kgf·m
180.8 ~ 209.8 lbf·ft
245.2 ~ 284.5 N·m
25.0 ~ 29.0 kgf·m
180.8 ~ 209.8 lbf·ft
(1) Tie-Rod (3) Tie-Rod Lock Nut
(2) Slotted Nut (4) Split Pin
569W516A
FRONT AXLE
1. Place the jacks under the front axle, and hang up
the bumper by the hoist to support it.
2. Remove the shaft bracket 1 mounting screws and
shaft bracket 2 mounting screws.
3. Separate the front axle from the front support.
4. Remove the front wheels.
Tightening
torque
Front bracket
bolts
Rear bracket
bolts
Front wheel
mounting nuts
Front wheel
mounting stud
123.6 ~ 147.1 N·m
12.6 ~ 15.0 kgf·m
91.1 ~ 108.5 lbf·ft
123.6 ~ 147.1 N·m
12.6 ~ 15.0 kgf·m
91.1 ~ 108.5 lbf·ft
166.7 ~ 186.4 N·m
17.0 ~ 19.0 kgf·m
122.9 ~ 137.4 lbf·ft
88.3 ~ 107.9 N·m
9.0 ~ 11.0 kgf·m
65.1 ~ 79.5 lbf·ft
569W517A
