HYDRAULIC SYSTEM
6-55
D569-W02 May-2003
3.4 PREPARATION STAGE FOR
DISASSEMBLING AND
ASSEMBLING

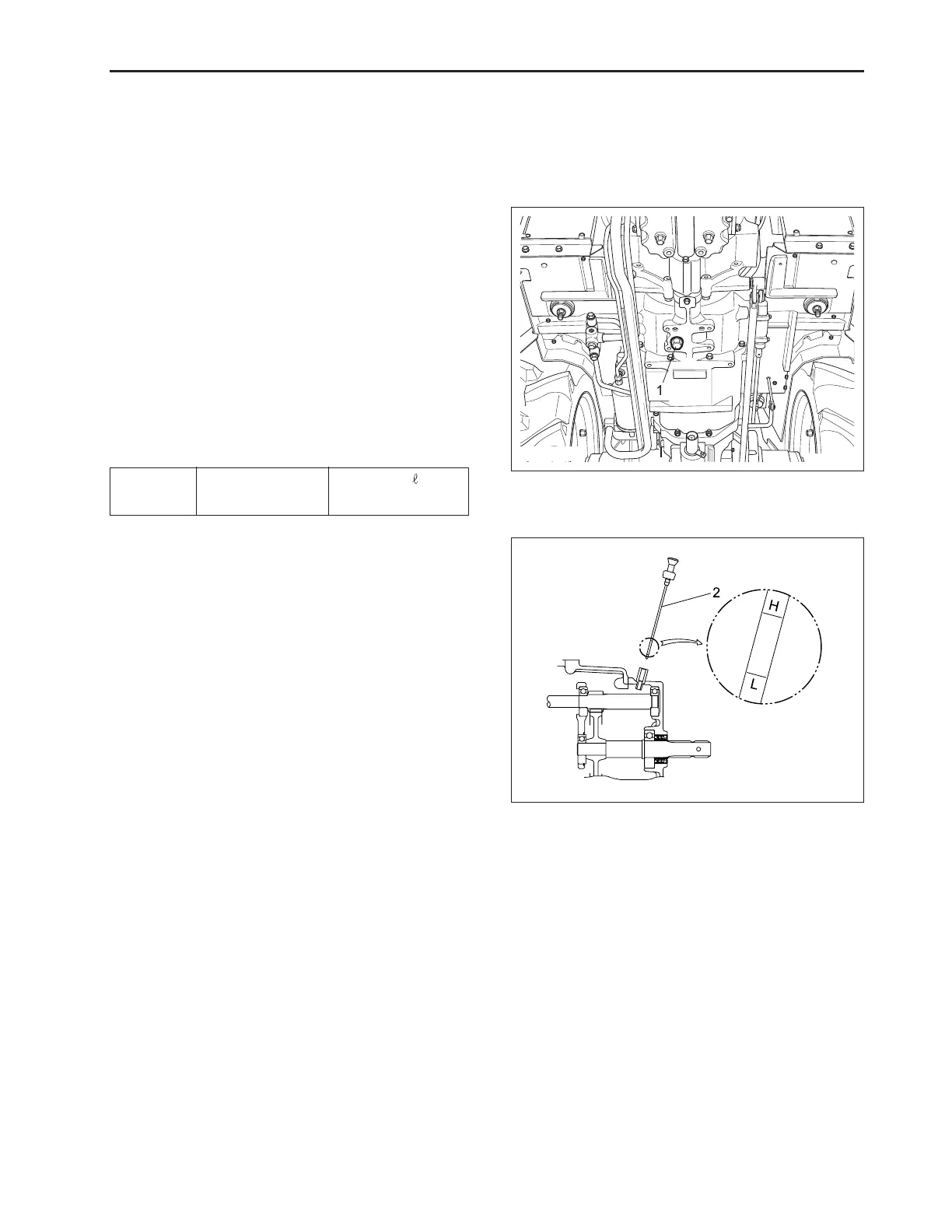

DRAINING THE TRANSMISSION FLUID
Draining the Transmission Fluid
1. Place oil pans underneath the transmission case.
2. Remove the drain plugs.
3. Drain the transmission fluid.
4. Reinstall the drain plugs.
(When refilling)
• Fill up from filling port after removing the filling plug
(1) until reaching the gauge (2).
• After running the engine for few minutes, stop it and
check the oil level again, add the fluid to prescribed
level if it is not correct level.
Capacity
Transmission
fluid
34.0
9.0 U.S.gal.
569W670A
IMPORTANT
• Use only SAE 80, 90 gear oil. Use of other oils may
damage the transmission or hydraulic system. Re-
fer to “LUBRICANTS, FUEL AND COOLING WATER”
(Refer to chapter 1)
• Do not mix different brands fluid together.
(1) Drain Plugs
(2) Gauge
569W671A
