ENGINE
2-33
D569-W02 May-2003
615WA18A
3.3 CHECKING, DISASSEMBLING AND SERVICING

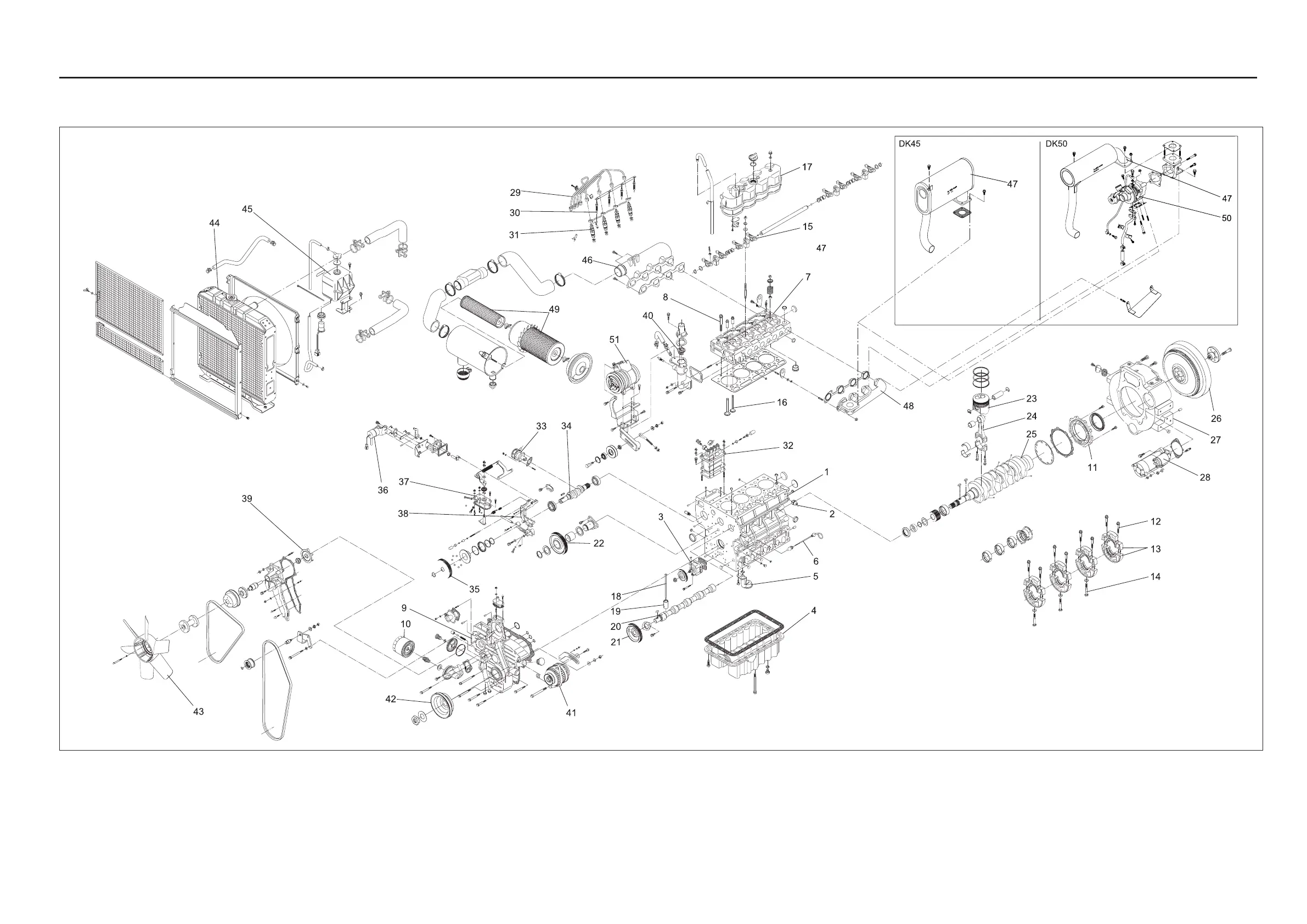

A. ENGINE DISASSEMBLED VIEW
(1) Cylinder Block
(2) Oil Pressure Switch
(3) Oil Pump
(4) Oil Pan
(5) Oil Strainer
(6) Oil Gauge
(7) Cylinder Head
(8) Head Bolt
(9) Gear case
(10) Oil Filter
(11) Main bearing Case
Cover
(12) Bearing Case Bolt 1
(13) Main Bearing Case
(14) Bearing Case Bolt 2
(15) Rocker Arm
(16) Inlet, Exhaust Valve
(17) Cylinder Hear Cover
(18) Push Rod
(19) Tappet
(20) Camshaft
(21) Camshaft Gear
(22) Idle Gear
(23) Piston
(24) Connecting Rod
(25) Crankshaft
(26) Flywheel
(27) Flywheel Housing
(28) Starter
(29) Injection Pipe
(30) Glow Plug
(31) Nozzle
(32) Fuel Injection Pump
(33) Fuel Feed Pump
(34) Fuel Camshaft
(35) Fuel Camshaft Gear
(36) Engine Stop Solenoid
(37) Speed Control Plate
(38) Fork Lever (Governor)
(39) Impeller
(40) Thermostat
(41) Alternator
(42) Fan Drive Pulley
(43) Cooling Fan
(44) Radiator
(45) Reserve Tank Ass’y
(46) Inlet Manifold
(47) Muffler
(48) Exhaust Manifold
(49) Air Cleaner
(50) Turbo Charger
(51) Air Conditioner
Compressor
