HYDRAULIC SYSTEM
6-67
D569-W02 May-2003

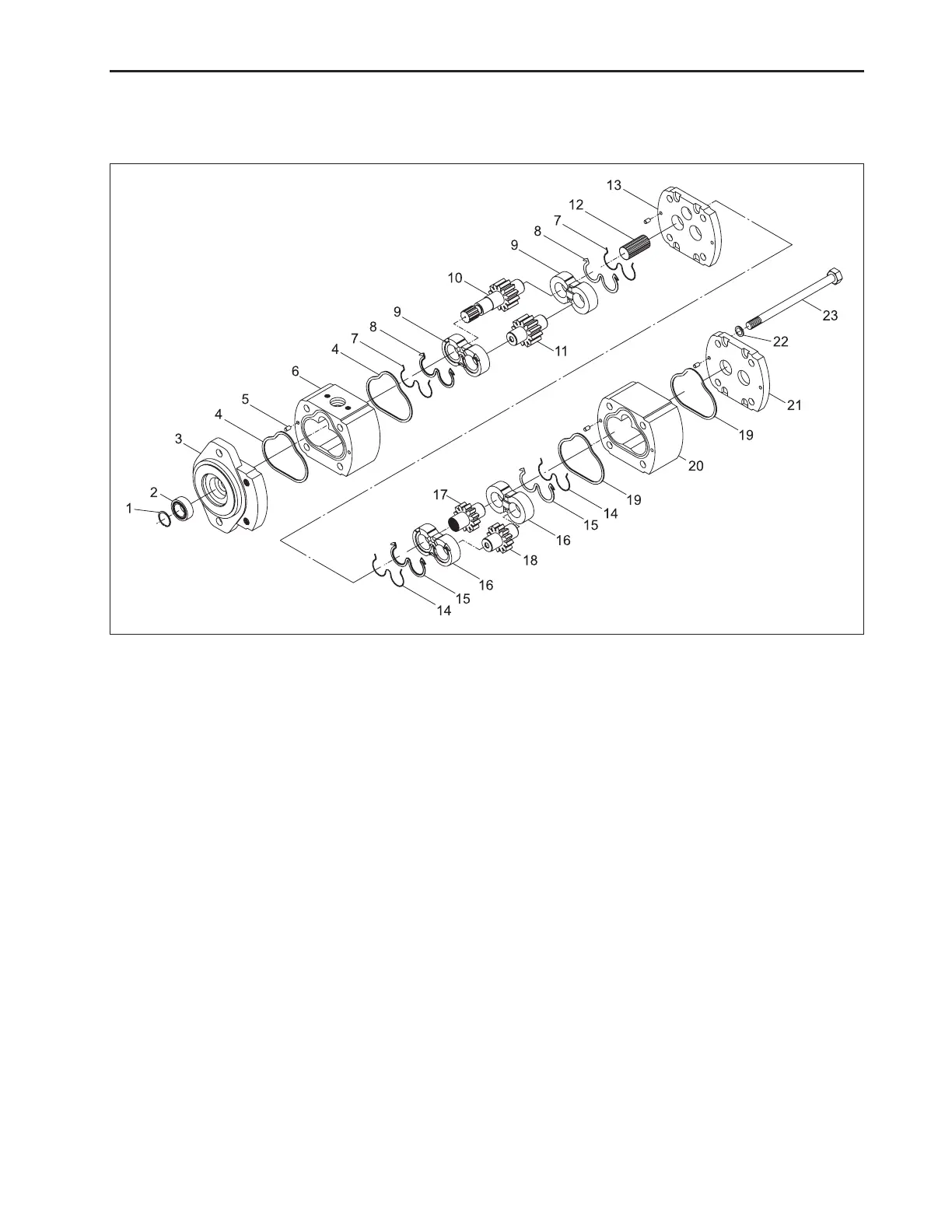

4.3 STRUCTURE AND OPERATION
A. STRUCTURE
(1) Snap Ring (7) Sealing
(2) Bearing (8) Sealing
(3) Cover (Front) (9) Bushing
(4) Sealing (10) Drive Gear Shaft (1)
(5) Pin (11) Passive Gear (1)
(6) First Pump (12) Coupling
(13) Cover (19) Sealing
(14) Sealing (20) Second Pump
(15) Sealing (21) Cover (Rear)
(16) Bushing (22) Spring Washer
(17) Drive Gear Shaft (2) (23) Bolt
(18) Passive Gear
569W696A
