FRONT AXLE
5-15
D569-W02 May-2003
569W521A
A. TO DISASSEMBLING
1. Remove bolts (4), (6) on the assembly of front axle
support (1) and differential gear case to Disassem-
bling differential gear case ass’y (2) in a body.
B. TO ASSEMBLE
1. Apply liquid gasket evenly on the assembling sur-
face of front axle support (1) and differential gear
case (2).
2. Install two pipe pins (3) on front axle support.
3. Fix front axle support (1) and differential gear case
ass’y (2) with inlet bolts (4), (6).
4. Install the bevel gear case ass’y on both sides of
front axle support.

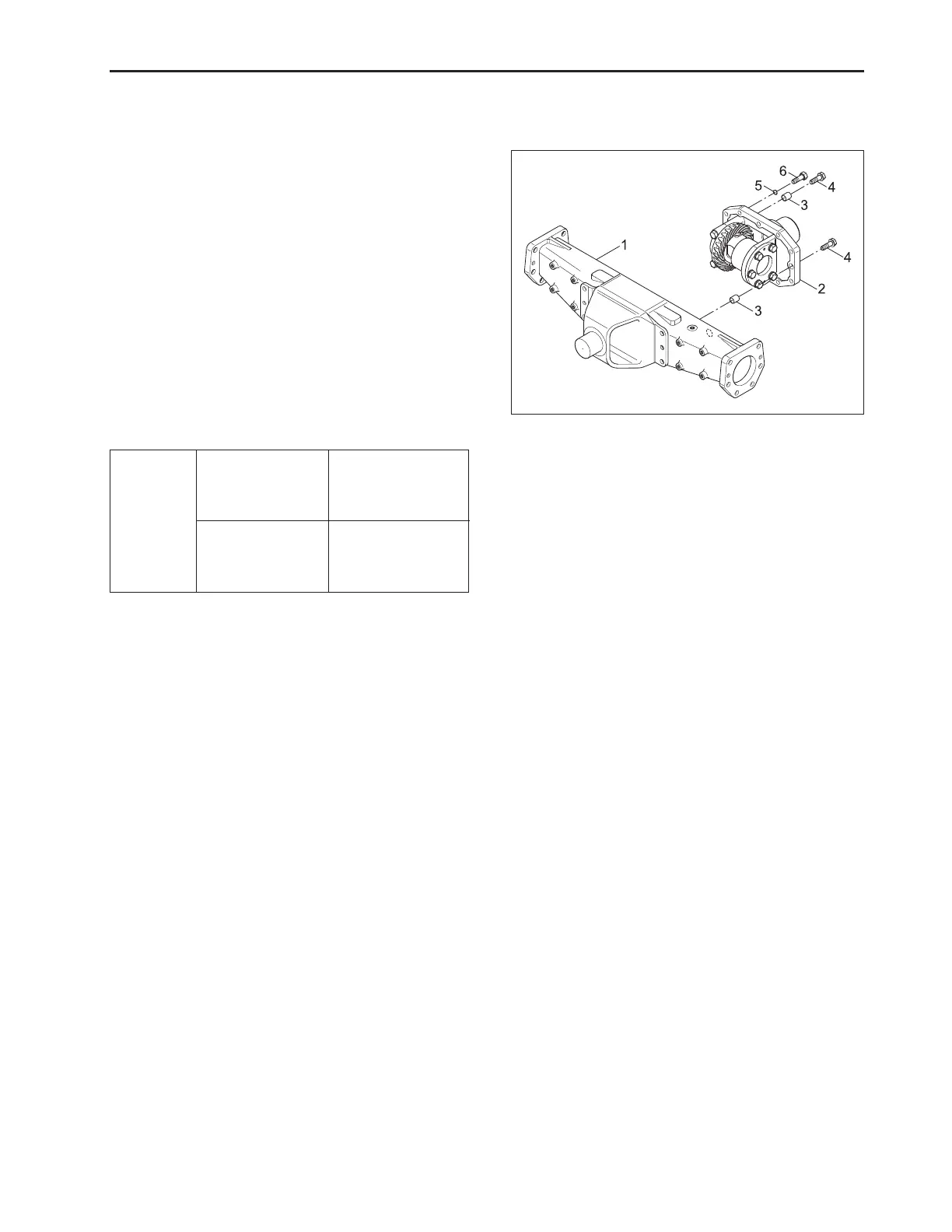

5.4 FRONT AXLE SUPPORT AND
DIFFERENTIAL GEAR CASE
(1) Front Axle Support
(2) Differential Gear Case Ass’y
(3) Pipe Pin
(4) Bolt
(5) Spring Washer
(6) Bolt
Tightening
torque
Tightening bolt of
the differential
gear case ass’y
UBS bolt tighten-
ing of the differen-
tial gear case
ass’y
77.9 ~ 90.2 N·m
7.90 ~ 9.20 kgf·m
57.4 ~ 66.5 lbf·ft
103.0 ~ 117.7 N·m
10.5 ~ 12.0 kgf·m
75.9 ~ 86.8 lbf·ft
