CHAPTER 2 8454
2-6
D569-W02 May-2003
569W205A

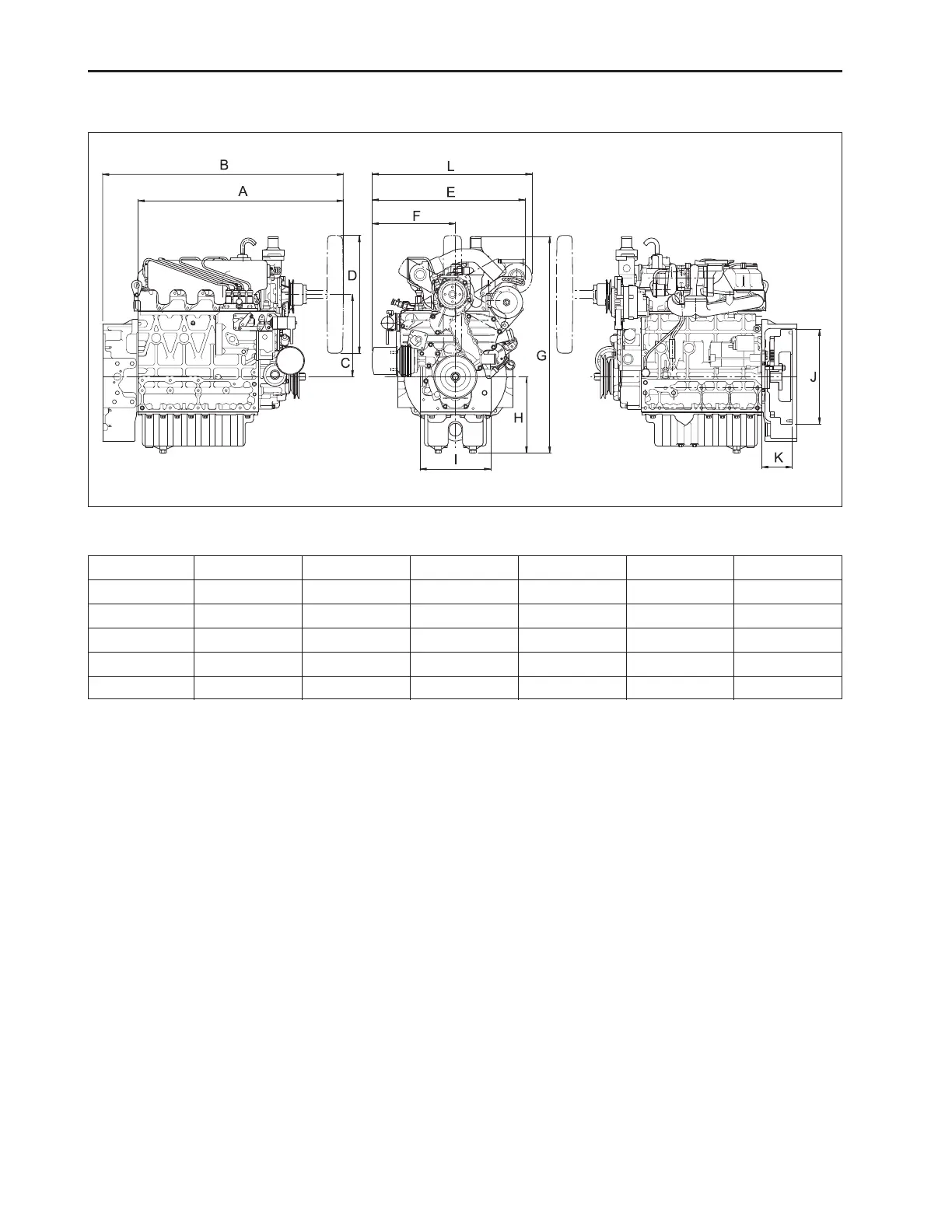

1.4 DIMENSIONS
4A220
4A200T
4A220
4A200T
Sample/td Spec.
A
697.3 (27.45)
697.3 (27.45)
G
736 (28.98)
736 (28.98)
B
817.3 (32.18)
817.3 (32.18)
H
260 (10.24)
260 (10.24)
C
280 (11.02)
280 (11.02)
I
240 (9.45)
240 (9.45)
D
φ
400 (15.75)
φ
400 (15.75)
J
φ
321 (12.64)
φ
321 (12.64)
E
502.6 (19.79)
519 (20.43)
K
104.5 (4.11)
104 (4.09)
F
262.5 (10.33)
282.4 (11.12)
L
-
542 (21.34)
mm (in.)
1.5 GENERAL WARNING
• When disassembling, arrange each part on a clean
place. Do not mix them up. Replace bolts and nuts
where they were.
• When connecting instruments to electrical
equipment, first disconnect battery negative
terminal.
• Replace gaskets or O-rings with new ones when
reassembling, and apply grease on a O-rings and
the oil seals when reassembling.
• When exchanging parts, use genuine DAEDONG
parts to maintain engine performance and safety.
• To prevent oil and water leakage, apply non-drying
adhesive to the gaskets according to this manual
before reassembling.
• When hoisting up the engine, use the hook pro-
vided on the cylinder head.
• When installing the engine, use the hook provided
on the cylinder head.
• When installing external cir-clips or internal cir-clips,
direct corner end to the non- loosening direction.
