CHAPTER 5 8454
5-20
D569-W02 May-2003

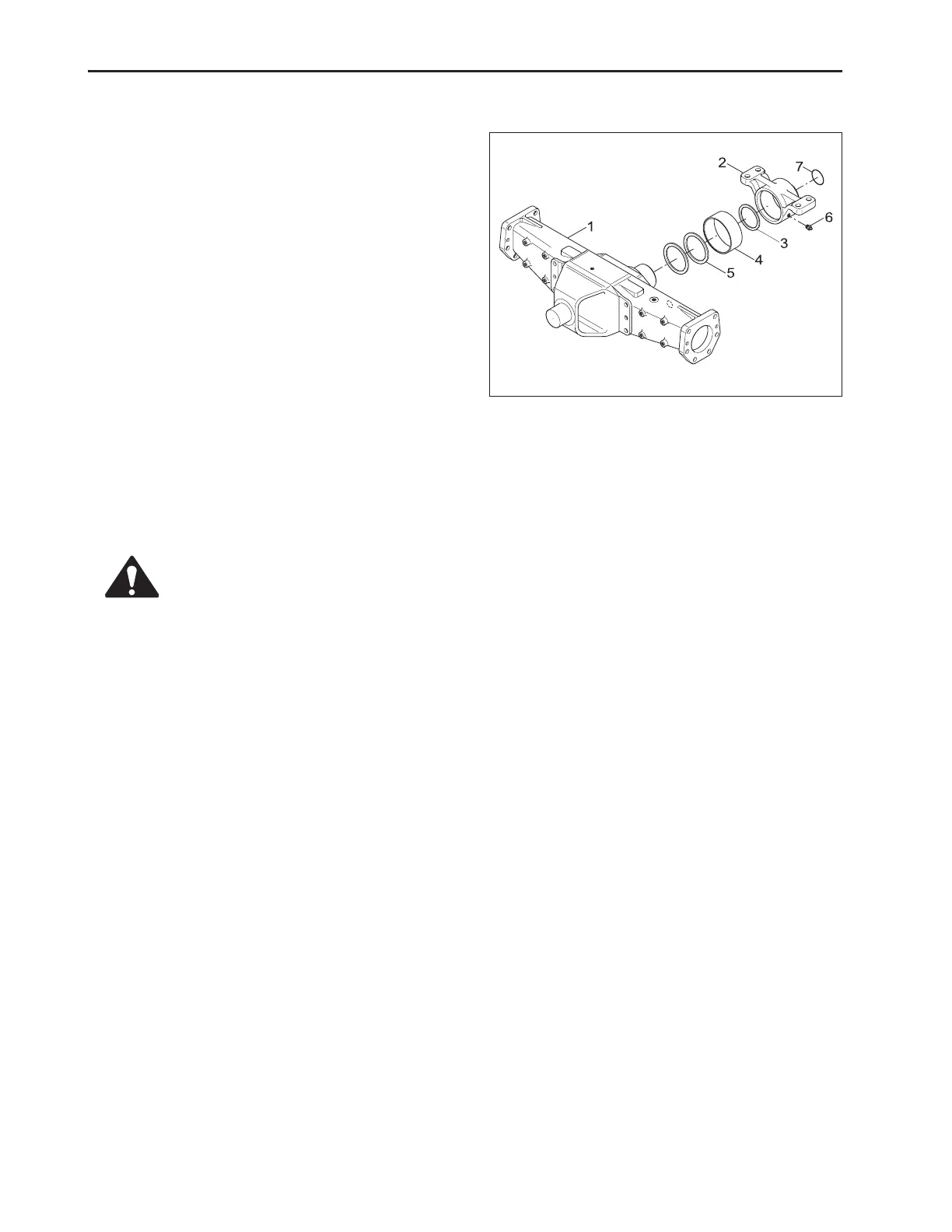

5.7 REAR BRACKET
A. TO DISASSEMBLING
1. Separate front axle support (1) and rear bracket
ass’y (2).
2. Remove thrust collar (3), DX bushing (4) and two oil
seals (5).
3. Remove O-ring (7).
4. Remove grease nipple (6).
B. TO ASSEMBLE
1. Insert thrust collar (3) into the inner bore of rear
bracket (2).
2. Install DX bushing (4) with a replacing tool.
3. Install two oil seals (5) with a replacing tool and
apply grease.
4. Install grease nipple (6).
5. Install Ø42 O-ring (7) on the inner bore of rear
bracket (2) and apply grease.
6. Apply grease to the inner bore of rear bracket (2) via
grease nipple (6).
(1) Front Axle Support
(2) Rear Bracket
(3) Thrust Collar
(4) DX Bushing
(5) Oil Seal
(6) Grease Nipple
(7) O-Ring
569W526A
CAUTION
• Knock the groove of DX bushing (4)
into the nipple’s groove of rear bracket
(2) as aligned.
• Install the lip area of oil seal (5)
outward.
