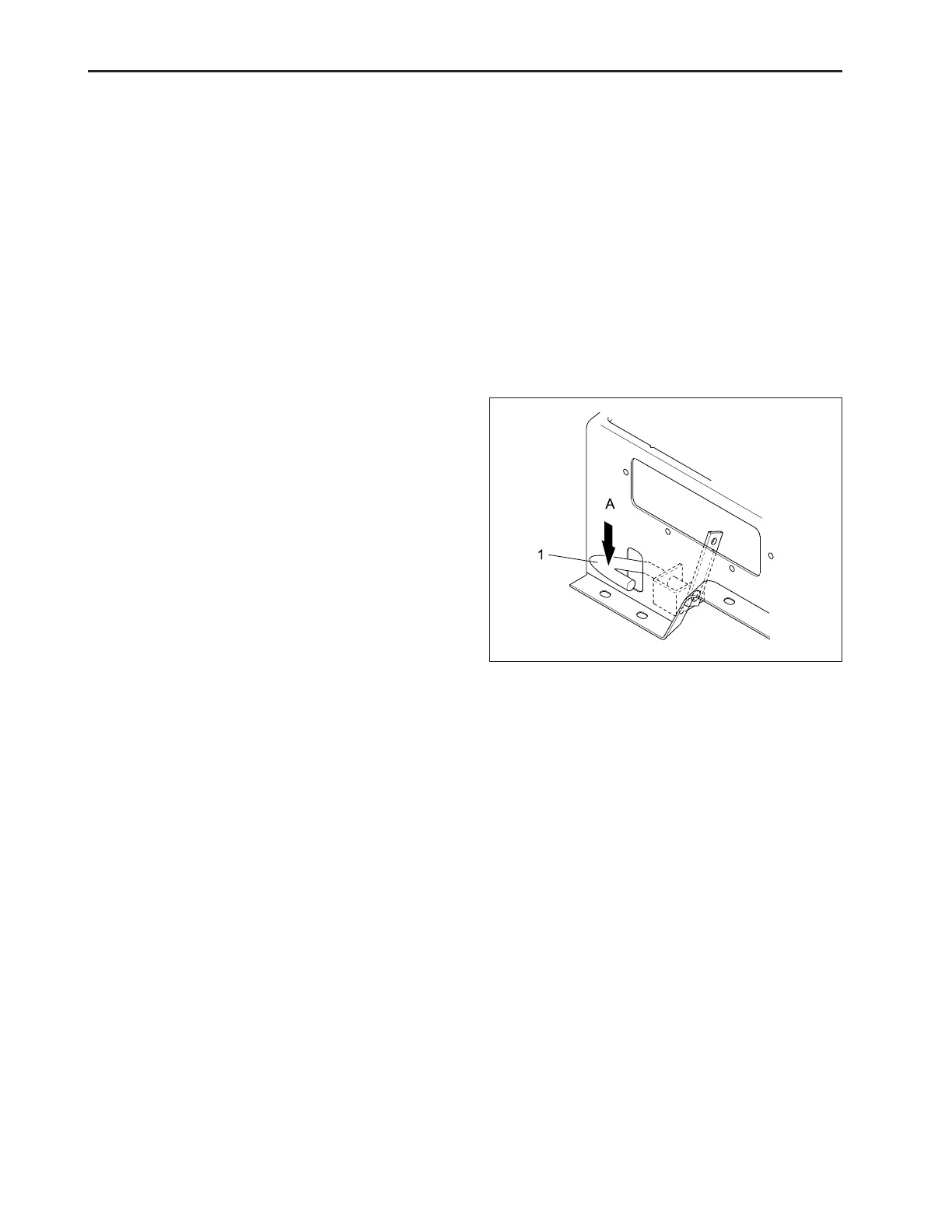

(1) Differential Lock Operation Pedal
(A) Push
A. POWER-TAKE-OFF OPERATION LAMP (4)
Light will illuminate when the PTO selection switch is
located at Auto or Manual mode.
Before you start the engine, be sure that the PTO se-
lection switch is located at the Neutral position.
B. ENGINE COOLANT LOW LEVEL WARN-
ING LAMP (5)
Light will illuminate when the engine coolant is not enough
to operate the tractor. As soon as the light illuminate, stop
the engine and investigate the cause. (If the coolant is low
level, put the coolant into the surge tank.)
C. DIFFERENTIAL LOCK OPERATION LAMP (6)
The light will illuminate when the differential lock pedal
is engaged.
1.2 INDICATORS AND WARNING LIGHTS
D. ENGINE OIL PRESSURE LAMP (7)
The light will illuminate when the engine oil pressure is
below than set value.
As soon as the light illuminate, stop the engine and in-
vestigate the cause. (And must visit the nearest main-
tenance facilities.)
E. BATTERY CHARGING LIGHT LAMP (8)
Illuminates when the key switch is in the “ON” position
and goes out when the Engine is started. If this bulb
becomes lit during operation, it indicates that the charg-
ing system is not operating normally. The battery can
be fully discharged under this condition.
Must check the cause as soon as possible.
