TRANSMISSION SYSTEM
4-23
D569-W02 May-2003

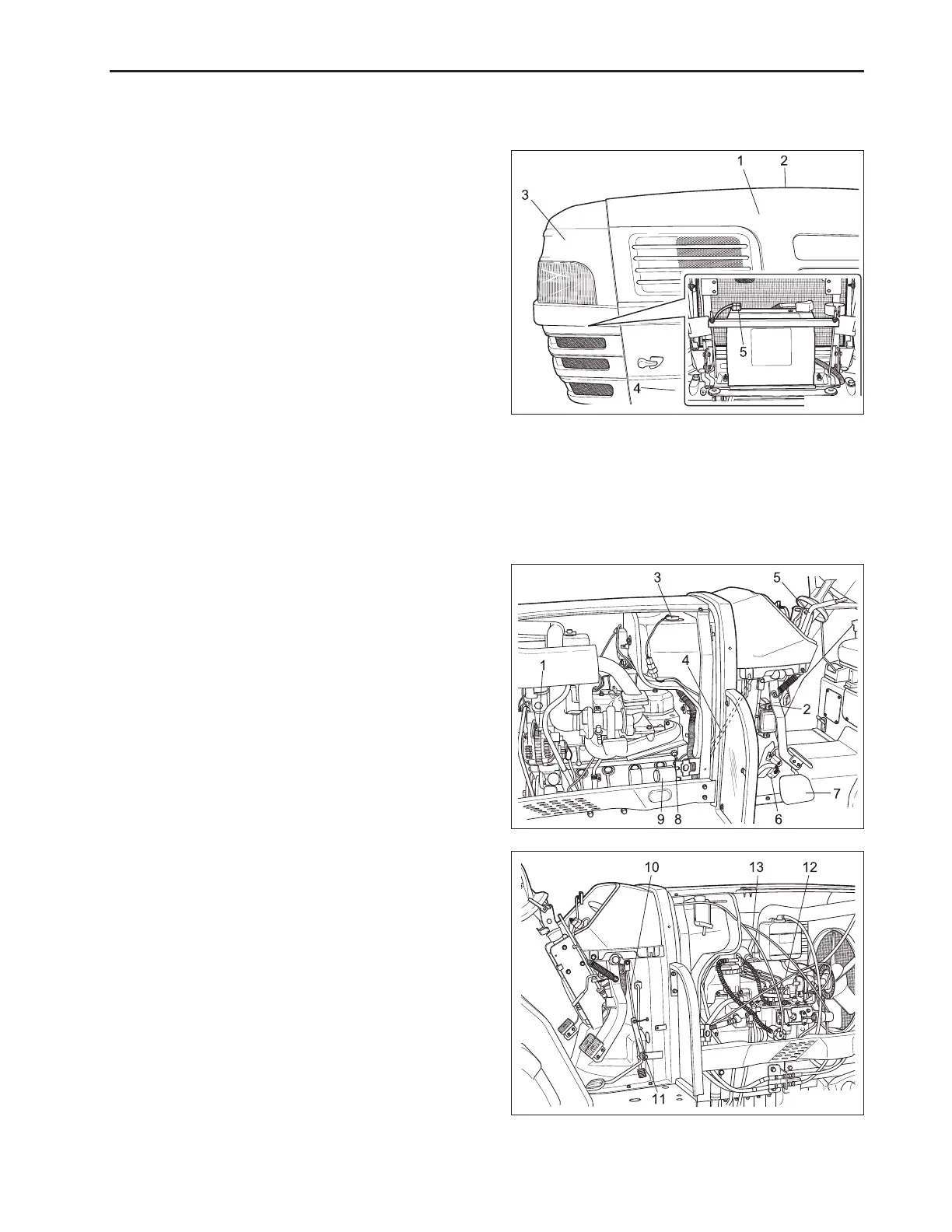

Preparation 1
1. Removing the following parts.
4.2 SEPARATING PANEL FRAME
ASSEMBLY
(1) Side Cover (RH, LH)
(2) Bonnet
(3) Front Grille
(4) Side Skirt (RH, LH)
(5) Battery Negative Code
569W424A
Preparation 2
1. Disconnect the brake rods (4).
2. Disconnect the clutch rod (2).
3. Remove the accelerator cable (12).
4. Disconnect the foot accelerator rod (11).
5. Remove the panel frame cover (7) and disconnect
the connectors (6).
6. Remove the shuttle shaft lever (5) after disconnecting
limit switch wire harness.
7. Disconnect the 2P connector of alternator (1), jumper
for fuel level sensor (3) and starter (9).
8. Disconnect the meter cable (13) at the engine side.
(1) 2P Connector For Alternator
(2) Clutch Rod
(3) Jumper Lead For Fuel Level Sensor
(4) Brake Rod (LH)
(5) Shuttle Shaft Lever
(6) Connectors
(7) Panel Frame Cover
(8) Jumper Lead For Oil Switch
(9) Jumper Lead For Starter
(10) Brake Rod (RH)
(11) Food Accelerator Rod
(12) Accelerator Cable
(13) Meter Cable
569W427A
569W428A
