CLUTCH
3-9
D569-W02 May-2003

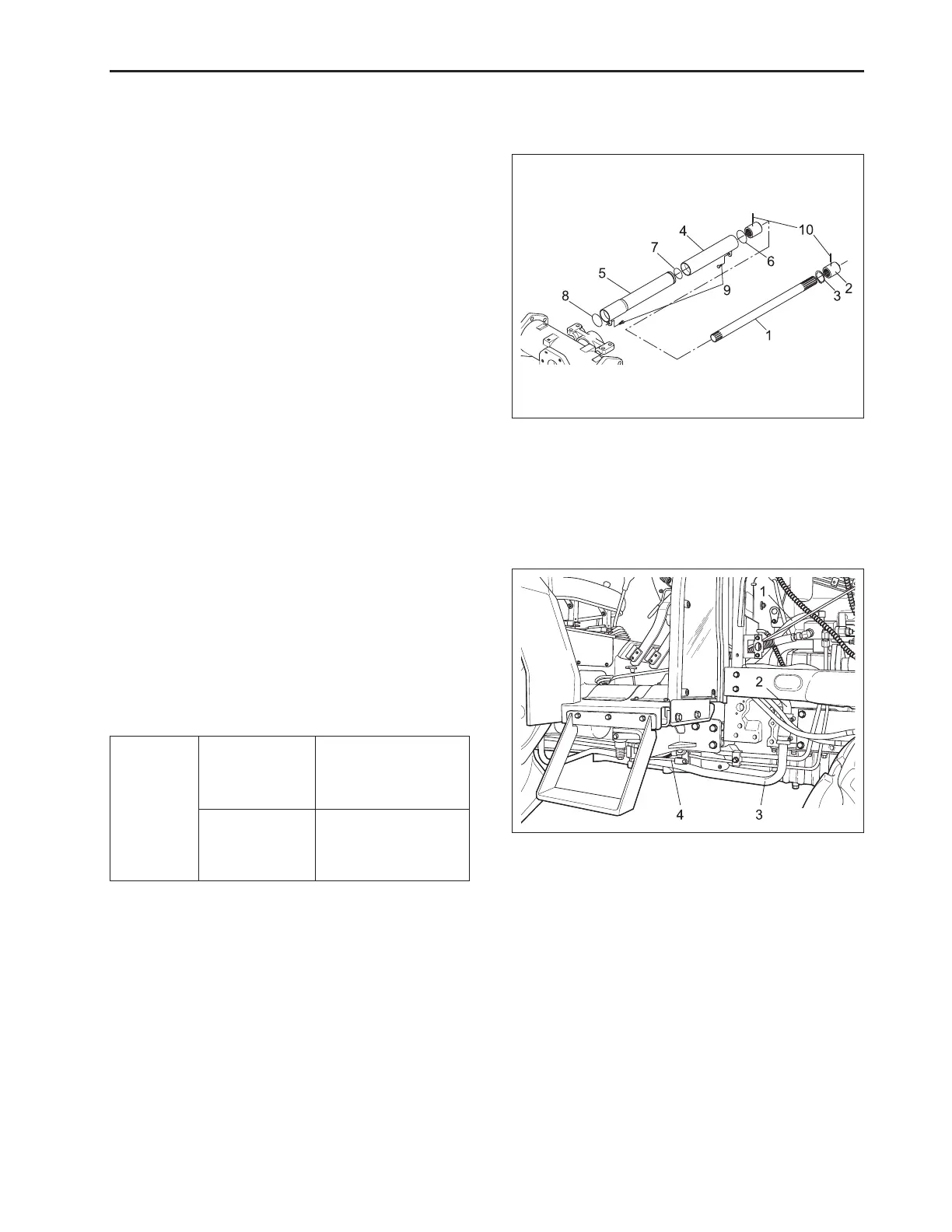

4.2 SEPARATING ENGINE AND
CLUTCH HOUSING CASE
PROPELLER SHAFT
1. Slide the propeller shaft covers (4), (5) after remov-
ing to bolt (9).
2. Tap out the spring pin (10), and then slide the cou-
pling (2) the front.
(When reassembling)
• Apply grease to the splines of the propeller shaft.
(1) Propeller Shaft (6) O-Ring
(2) Coupling (7) O-Ring
(3) Cir-Clip (8) O-Ring
(4) Propeller Shaft Cover (9) Bolt
(5) Propeller Shaft Cover (10) Spring Pin
569W310A
HYDRAULIC PIPES
1. Remove the brake rod (4) and suction pipe (3).
2. Remove the rubber hose (2).
3. Slide the return hose (1).
(When reassembling)
• Reinstall the pipe clamp securely.
(1) Return hose (3) Suction Pipe
(2) Rubber Hose (4) Brake Rod
Tightening
torque
Joint bolt for
delivery pipe (3)
and hydraulic
block
Joint bolt for
delivery pipe (2)
49.0 ~ 58.8 N·m
5.0 ~ 6.0 kgf·m
36.2 ~ 43.4 lbf·ft
34.3 ~ 39.2 N·m
3.5 ~ 4.0 kgf·m
25.3 ~ 28.9 lbf·ft
569W311A
