CHAPTER 6 8454
6-56
D569-W02 May-2003

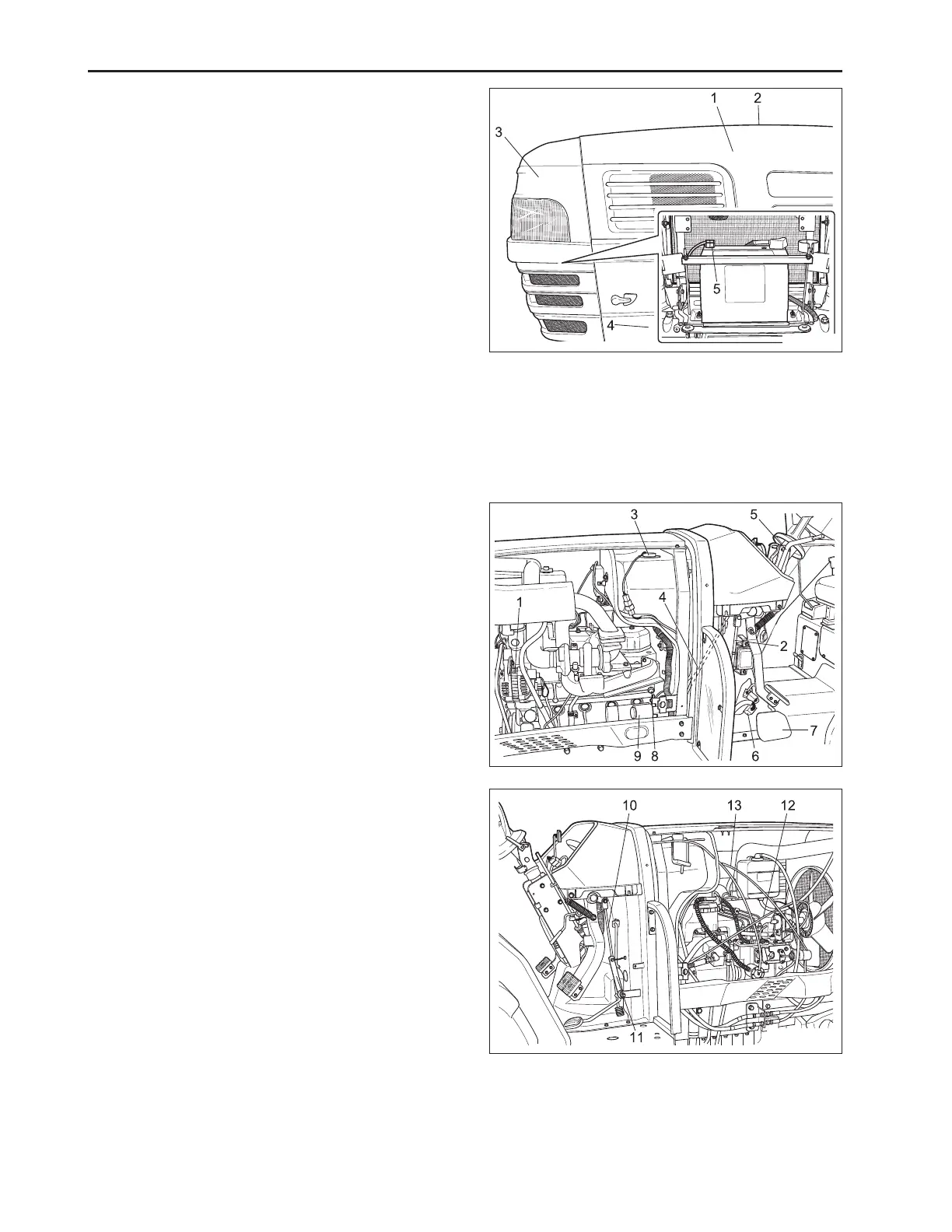

(1) 2P Connector for Alternator
(2) Clutch Rod
(3) Jumper Lead For Fuel Level Sensor
(4) Brake Rod (LH)
(5) Shuttle Shift Lever
(6) Connectors
(7) Panel Frame Cover
(8) Jumper Lead For Oil Switch
(9) Jumper Lead For Starter
(10) Brake Rod (RH)
(11) Food Accelerator Rod
(12) Accelerator Rod
(13) Meter Cable
569W676A
569W672A
Preparation 1
1. Removing the following parts.
(1) Side Cover (RH, LH)
(2) Bonnet
(3) Front Grille
(4) Side Skirt (RH, LH)
(5) Battery Negative Code
Preparation 2
1. Disconnect the brake rods (4), (10).
2. Disconnect the clutch rod (2).
3. Remove the accelerator rod (12).
4. Disconnect the foot accelerator rod (11).
5. Remove the panel frame cover (7) and disconnect
the connectors (6).
6. Remove the shuttle shaft lever (5) after disconnecting
limit switch wire harness.
7. Disconnect the 2P connector of alternator (1), jumper
for fuel level sensor (3) and starter (9).
8. Disconnect the meter cable (13) at the engine side.
569W675A
