HYDRAULIC SYSTEM
6-57
D569-W02 May-2003

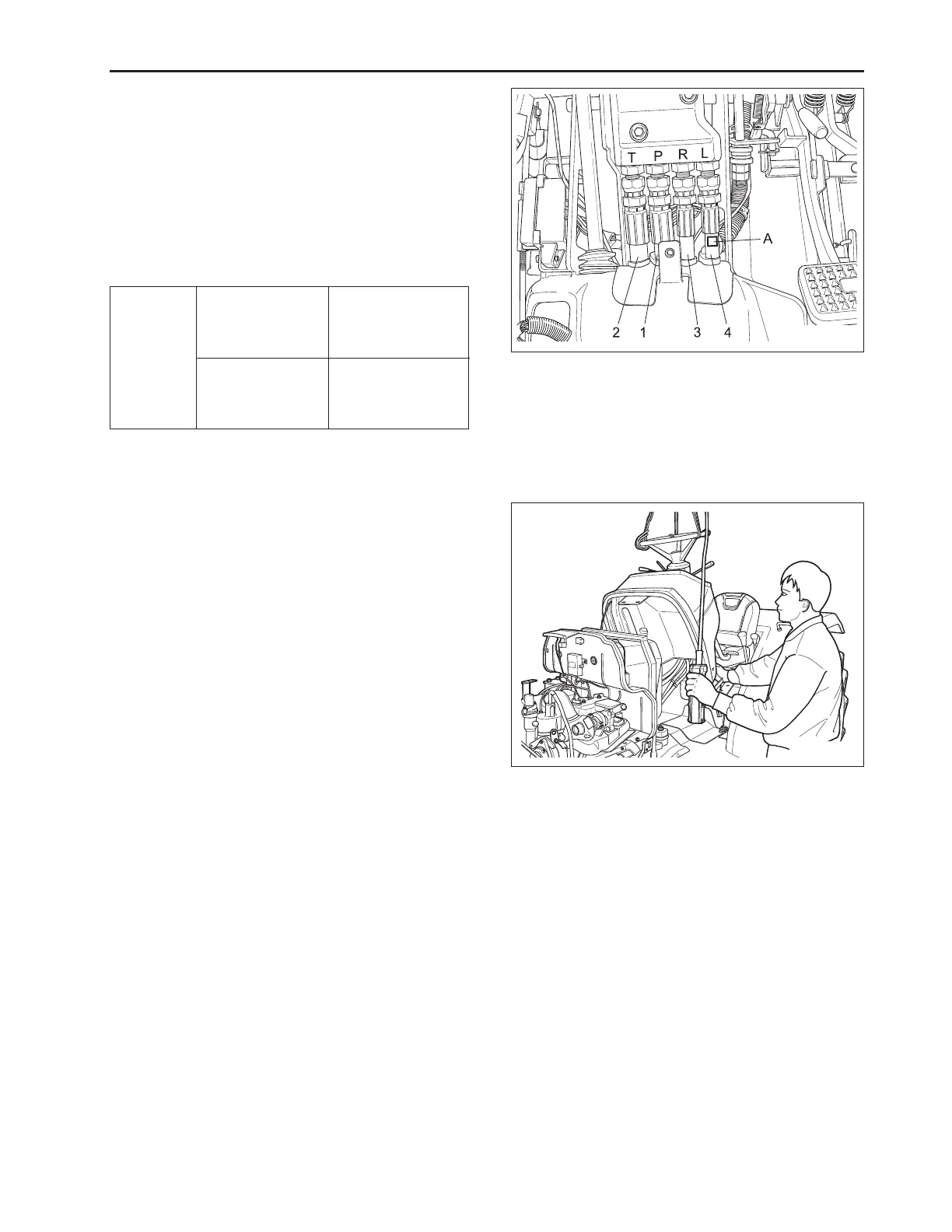

Hydraulic Pipes
1. Disconnect the main delivery hose (1), return hose
(2), right turning delivery hose (3) and left turning
delivery hose (4).
(When reassembling)
• In assembling the turning delivery hoses to the
steering controller, connect the delivery hose with
identification mark (tape) “A” to the L port of the steer-
ing controller.
[A] Identification Mark (Tape)
(1) Main Delivery Hose
(2) Return Hose
(3) Right Turning Delivery Hose
(4) Left Turning Delivery Hose
Panel Frame and Steering Assembly
1. Remove the panel frame mounting crews (Two
screws a upper part. Seven screws at lower part.).
2. Take out the panel frame and steering assembly as
a unit.
(When reassembling)
• Do not get in the wiring harness between panel
frame and platform.
Tightening
torque
Main delivery
hose
retaining nut
Turning delivery
hoses
retaining nut
46.6 ~ 50.9 N·m
4.8 ~ 5.2 kgf·m
34.4 ~ 37.6 lbf·ft
24.5 ~ 29.4 N·m
2.5 ~ 3.0 kgf·m
18.1 ~ 21.7 lbf·ft
569W677A
569W678A
