CHAPTER 6 8454
6-54
D569-W02 May-2003

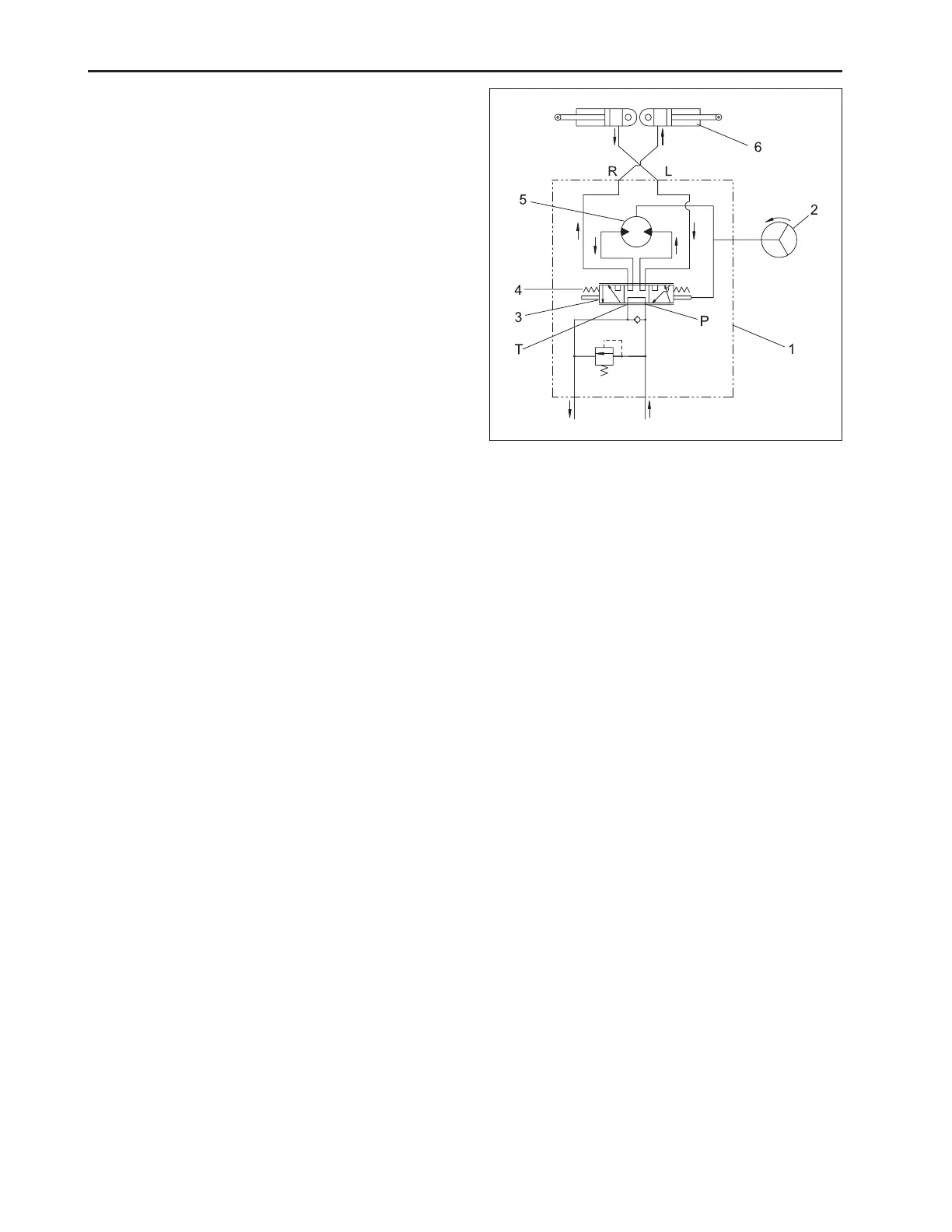

Left Turn
The steering system operates in this same way at a
left-turn as well, except that oil flows into and out of
steering cylinder in the directions opposite to those at
a right-turn.
P: Pump Port R: Cylinder Port R
T: Tank Port L: Cylinder Port T
(1) Steering Controller (4) Centering Spring
(2) Steering Wheel (5) GEROTOR
(3) Valve Plate (6) Steering Cylinder
569W669A
