TRANSMISSION SYSTEM
4-21
D569-W02 May-2003
F. PTO SYSTEM

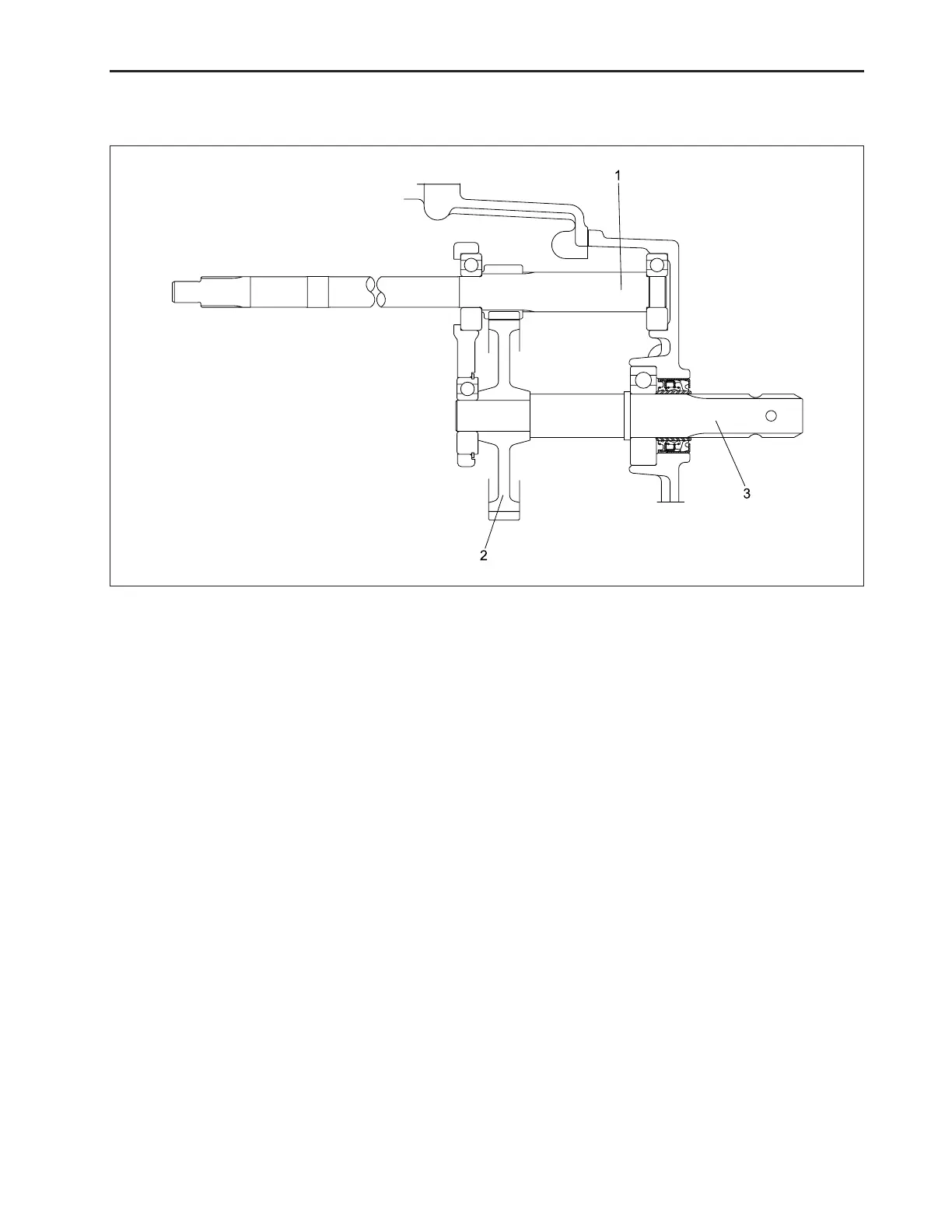

a. Related Parts With the PTO Operation
(1) PTO Drive Shaft
b. Operation Principle of PTO
If PTO switch is activated PTO clutch is engaged and
then power from the engine is transmitted to PTO drive
shaft (1) via PTO drive shaft 1.
51 gear (2) is rotated as engaged with PTO drive shaft
(1) which gets rotated subsequently.
If PTO switch is connected to automatic or manual con-
trol, the tractor will not start (as a safety device).
569W421A
(2) 51 Gear (3) PTO Shaft
