CHAPTER 4 8454
4-34
D569-W02 May-2003
• Be sure to apply grease on O-rings be-
fore fixed with shift arms.
• If the packing (2) has been damaged,
surely replace it with new one.
CAUTION

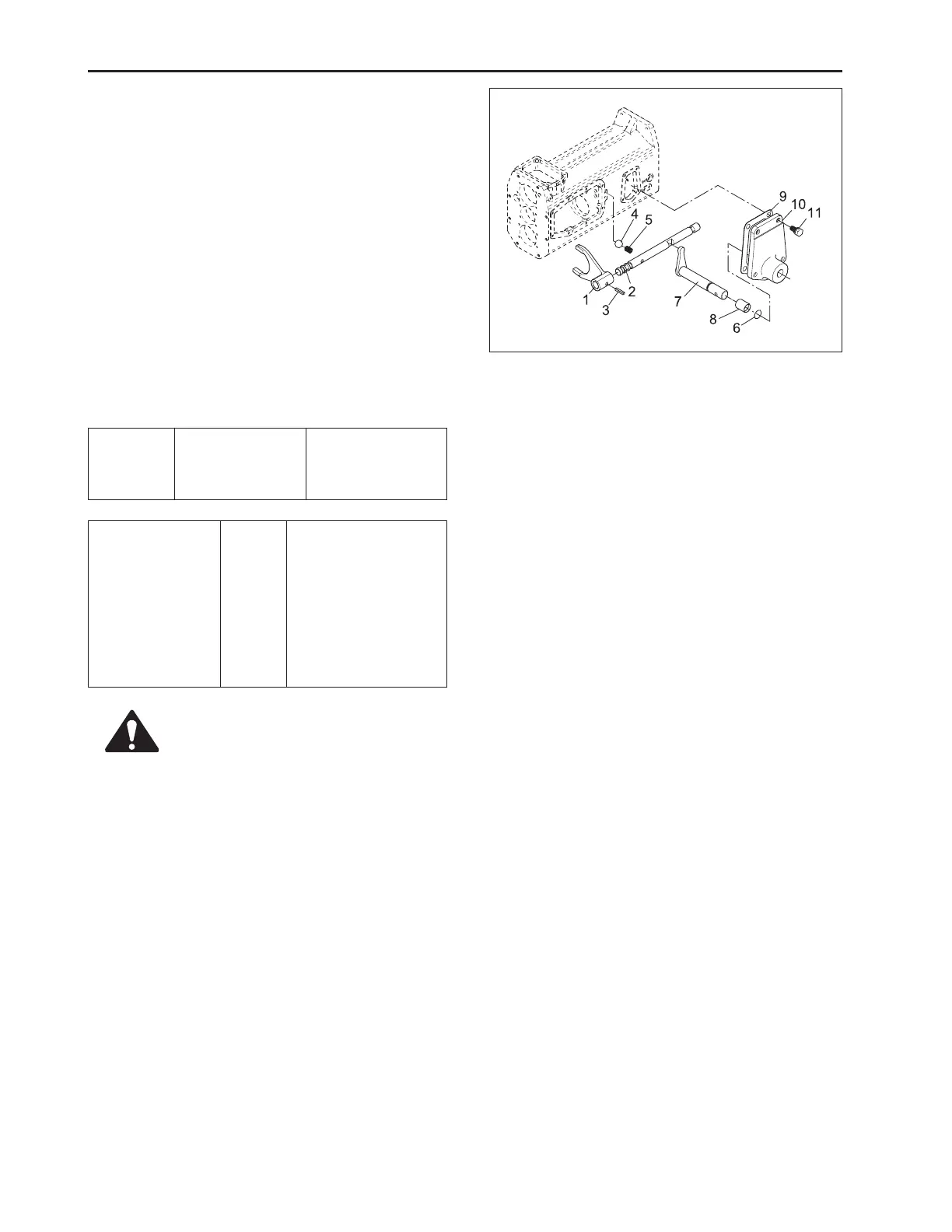

F. AUXILIARY SHIFT COVER
a. To Disassembling
1. Remove auxiliary shift cover bolt (11) on the middle
case side to loosen auxiliary shift cover (10) in a
body.
2. Disassembling the shifting arm (7) from the auxil-
iary shift cover (10).
b. To Assemble
1. Fix bush (8) with shift arm (7).
2. After fixing O-ring (6) with shift arms (7), where
greased, insert shift arms (7), into the hole of auxil-
iary shift cover (10).
3. Fix auxiliary shift cover with M10 washer mounting
bolt (11) as aligning shift arms (7), of auxiliary shift
cover (10) ass’y with the fork groove.
(1) Shift Fork (7) Shift Arm
(2) Fork Rod (8) Spacer
(3) Spring Pin (9) Gasket
(4) Ball (10) Shift Cover
(5) Spring (11) Bolt
(6) O-Ring
Tightening
torque
Tightening bolt of
auxiliary shift
cover
48.0 ~ 55.9 N·m
4.9 ~ 5.7 kgf·m
35.4 ~ 41.2 lbf·ft
• Outer diameter
of the shift arm of
the auxiliary shift
• Inner diameter of
the shift arm of
the auxiliary shift
• Outer diameter
of the shift arm
of the creep shift
Factory
spec.
• 17.975 ~ 17.957 mm
(0.707 ~ 0.706 in.)
• 30.000 ~ 29.979 mm
(1.181 ~ 1.180 in.)
• 20.021 ~ 20.000 mm
(0.788 ~ 0.787 in.)
569W450A
