CHAPTER 4 8454
4-44
D569-W02 May-2003
b. To Assemble
1. Sub-assemble 6305 ball bearing (12), oil seal (5),
(6) on the rear case (2).
2. Sub-assemble 6305 ball bearing (14) on the PTO
drive shaft (13).
3. Sub-assemble the 51 gear (10) into the PTO shaft
(9).
4. Sub-assemble the 6307 ball bearing on the PTO
shaft (9), and then assemble the sleeve (7).
5. Install the sub-assembled of PTO shaft (9), and PTO
drive shaft (13), at a time on rear cover (2).
O. PTO SHAFT
a. To Disassembling
1. Loosen the bolts (1) and remove the PTO shaft as-
sembly (2) ~ (13) as a unit.
2. Remove 6305 NR bearing (11) fixed on PTO shaft
(9).
3. Remove 6305 ball bearing (14), 51 gear (10), PTO
shaft (9), PTO drive shaft (13).
Tightening
torque
Tightening bolt of
the rear cover
77.5 ~ 90.2 N·m
7.9 ~ 9.2 kgf·m
57.1 ~ 66.5 lbf·ft

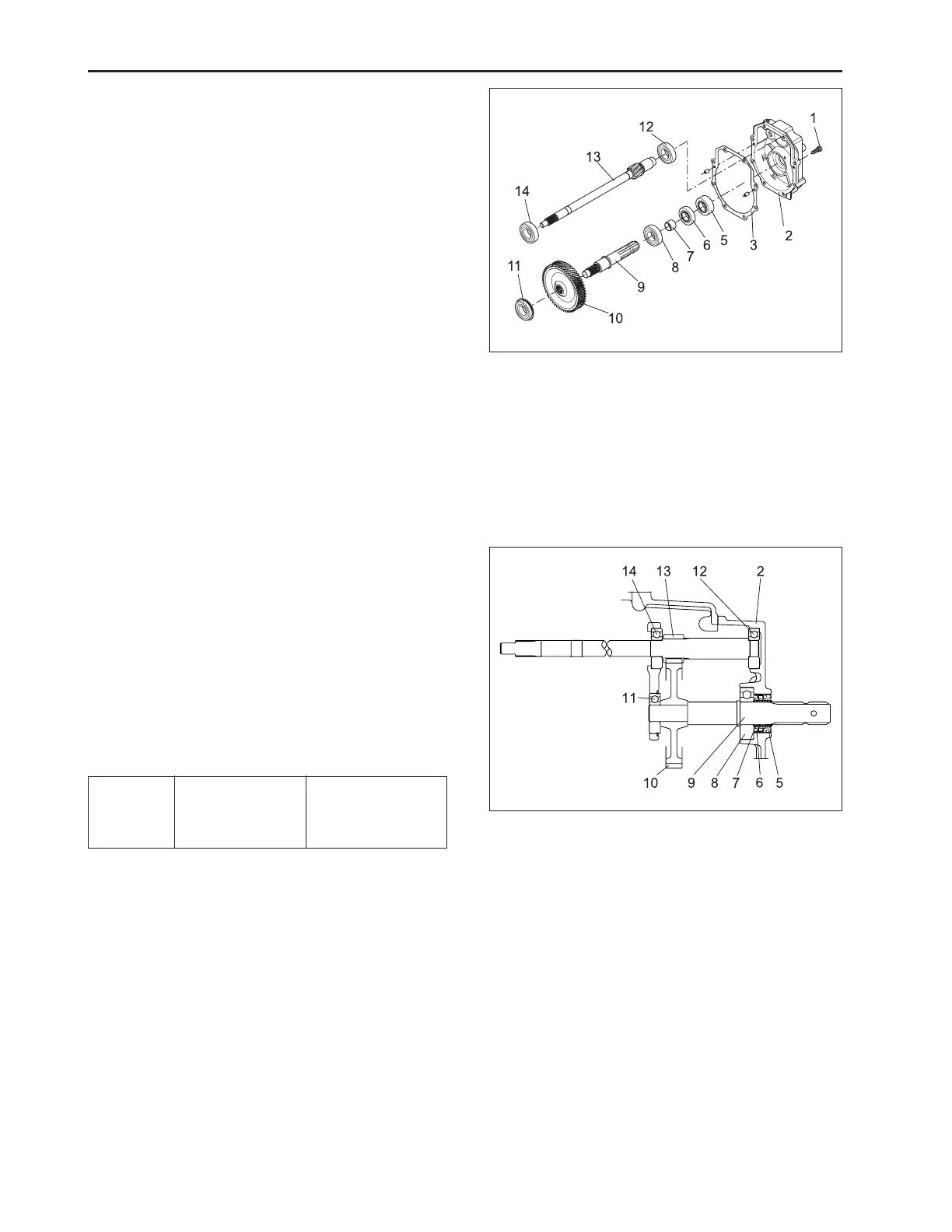

(1) Bolt (8) Ball Bearing
(2) Rear Case (9) PTO Shaft
(3) Packing (10) 51 Gear
(4) Parallel Pin (11) Ball Bearing
(5) Oil Seal (12) Ball Bearing
(6) Oil Seal (13) PTO Drive Shaft
(7) Sleeve (14) Ball Bearing
569W465A
569W466A
