CHAPTER 4 8454
4-50
D569-W02 May-2003
P. REAR AXLE
• Rear axle to transmit power shifted at the transmis-
sion to the rear wheels finally is composed of brake,
differential lock and final reduction gear.

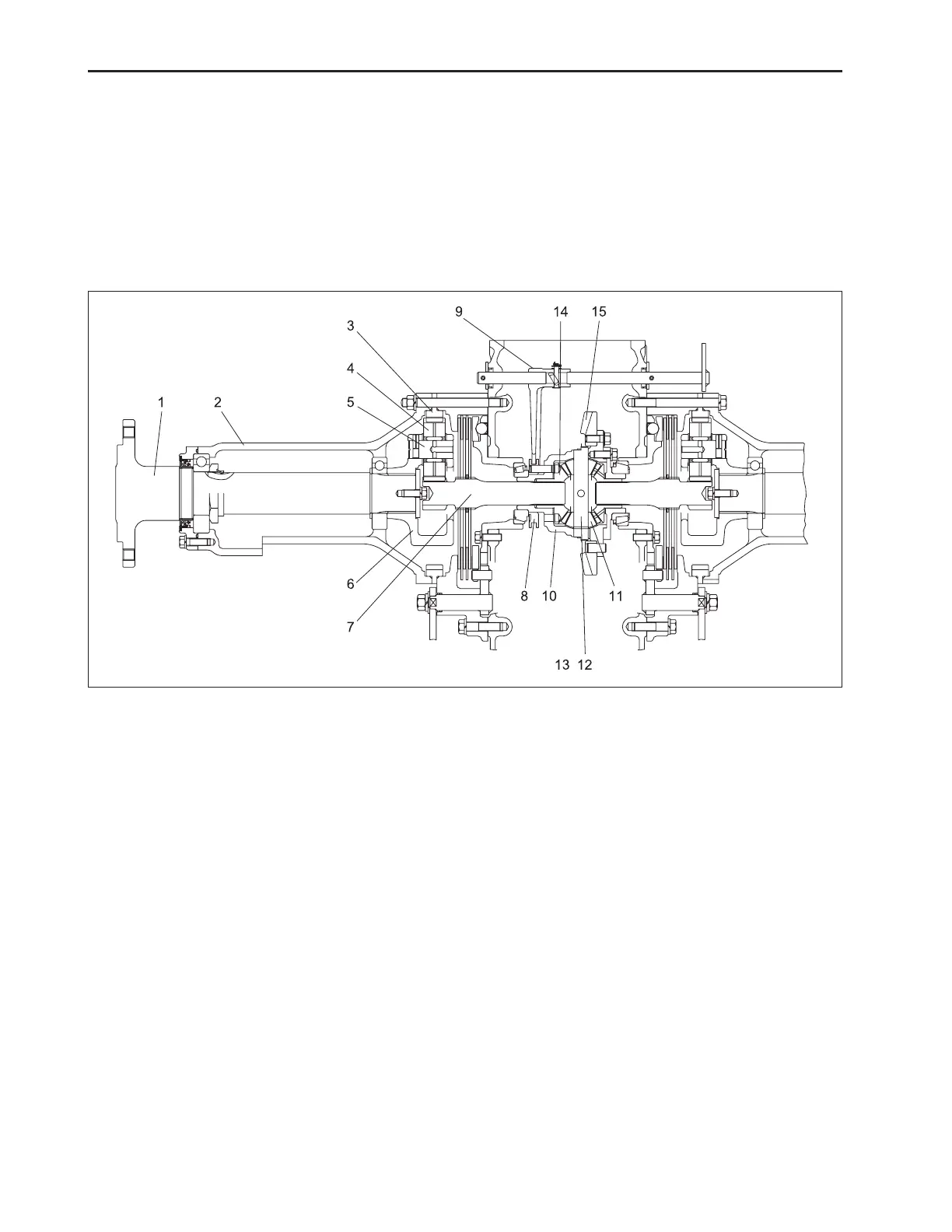

(1) Rear Axle
(2) Rear Axle Case
(3) Internal Gear
(4) Planetary Gear
(5) Planetary Gear Shaft
(6) Planetary Gear Support
(7) 13 Gear Shaft (Brake shaft)
(8) Differential Mounting Shift
(9) Differential Mounting Fork
(10) Differential Gear Case
(11) Differential Pinion
(12) Differential Pinion Shift 1
(13) Differential Pinion Shift 2
(14) Differential Side Gear
(15) Spiral Bevel Gear
569W483A
• Rear axle is driven as decelerated much by the plan-
etary gear, while differential gear is applied to dis-
tribute suitable revolution considering related road
and traveling conditions for the rear wheels left and
right by the differential gear after decelerating power
transmitted from the transmission at the bevel gear
shaft and spiral bevel gear.
<Rear Axle Section>
