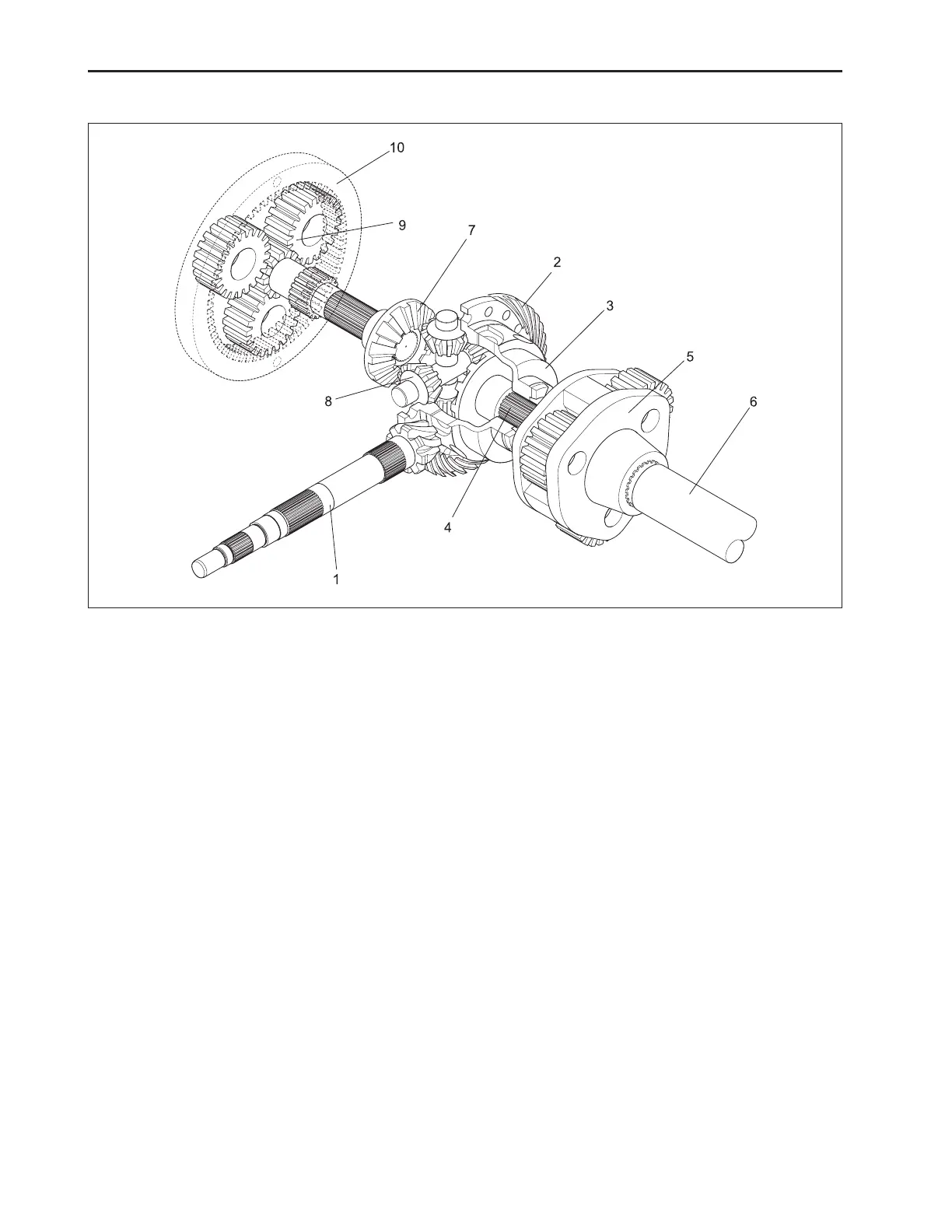

C. POWER FLOW OF THE REAR DIFFERENTIAL GEAR
a. Related Parts with the Rear Differential
Gear
(1) Spiral Bevel Pinion
(2) 39 Spiral Bevel Gear
(3) Differential Gear Assembly
(4) 13 Gear Shaft
(5) Planetary Gear Assembly
(6) Rear Axle
(7) Differential Side Gear
(8) Differential Pinion
(9) Planetary Gear
(10) 68 Internal Gear
b. Operation Principle of the Rear Differential
Gear
Power is transmitted from spiral bevel pinion (1) via 39
spiral bevel gear (2) and through differential gear as-
sembly (3) to 13 gear shaft (4).
13 gear shaft (4) is engaged with the gears of plan-
etary gear assembly (5). Planetary gears are operated
in 68 internal gear (10). Consequently, power trans-
mitted to 13 gear shaft (4) is transmitted to rear axle (6)
via planetary gear assembly (5).
Differential gear assembly (3) is composed of two def-
erential side gear (7) and four differential pinion (8) in
the differential case.
