G. TOP LINKAGE BRACKET
a. Structure
b. How the Top Linkage Bracket Works
If impact is applied on the implement, cover (3) and
spring (4) absorb the impact with the top link while
connected to the linkage by plate (12) and tie rod (17)
to raise the implement.
And oil flowing line is changed by the linkage of the
control valve this time.

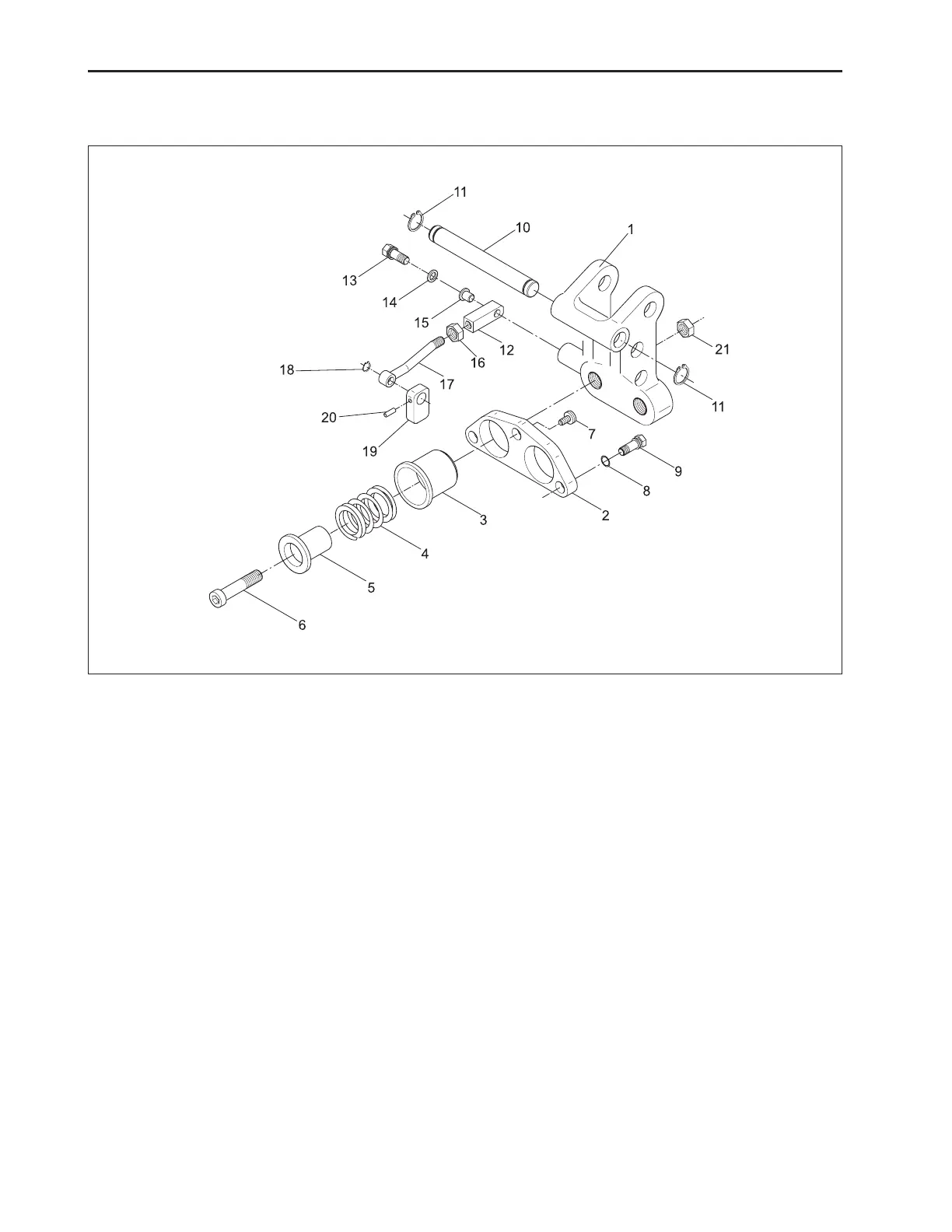

(1) Top Linkage bracket (7) Bolt
(2) Flange (8) Lock Washer
(3) Cover (9) Bolt
(4) Spring (10) Pin
(5) Roller (11) Snap Ring
(6) Bolt
(12) Plate (17) Tie Rod
(13) Bolt (18) Spring Peaks
(14) Lock Washer (19) Crank
(15) Roller (20) Pin
(16) Nut (21) Nut
