HYDRAULIC SYSTEM
6-33
D569-W02 May-2003
I. TOP LINK BRACKET
a. To Disassembling
1. Remove the socket support and coupler socket ass’y
prior to the top link bracket ass’y.
2. Remove bolt (13), lock washer (14), roller (15) and
plate (12).
3. Remove nut (21).
4. Disassembling snap ring (11) and remove pin (10).
5. Disassembling top link bracket (1).
6. Loosen bolts (7), (9) to remove flange (2).
7. Remove cover (3), spring (4), roller (5) and bolt (6)
as a unit.

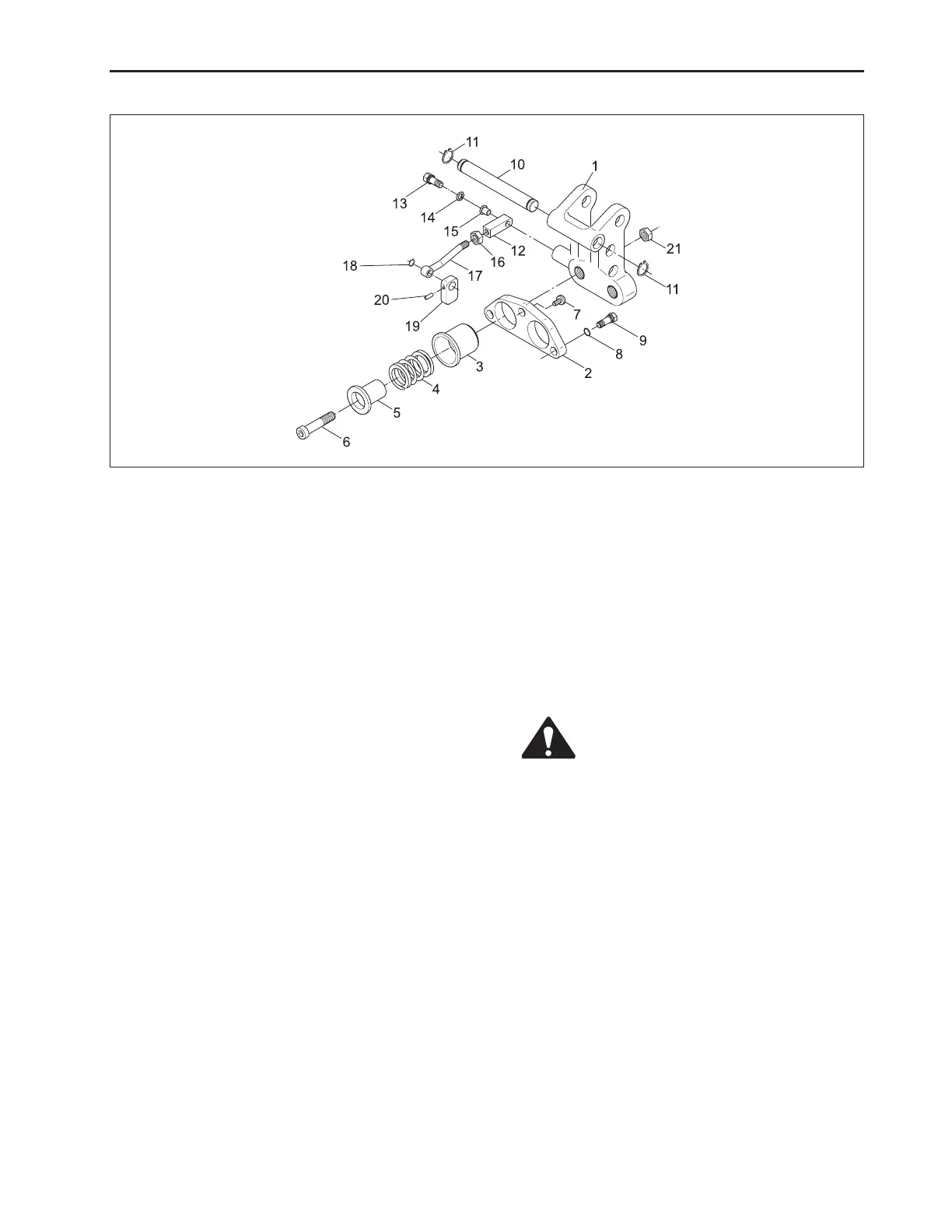

(1) Top Link Bracket (7) Bolt
(2) Flange (8) Lock Washer
(3) Cover (9) Bolt
(4) Spring (10) Pin
(5) Roller (11) Snap Ring
(6) Bolt
(12) Plate (17) Tie Rod
(13) Bolt (18) Spring Peaks
(14) Lock Washer (19) Crank
(15) Roller (20) Pin
(16) Nut (21) Nut
b. To Assemble
1. Apply grease sufficiently when assembling bolt (6)
and spring (4).
• Do not change the former assembling
position of the plate when dismantling
as in the clause of (2) above.
• Be careful not to drop top link bracket
(1) to the ground when dismantling pin
(10).
• Previously check if the draft function
is available when assembling as in the
clause of above while repeating sev-
eral times.
569W644A
CAUTION
