HYDRAULIC SYSTEM
6-59
D569-W02 May-2003

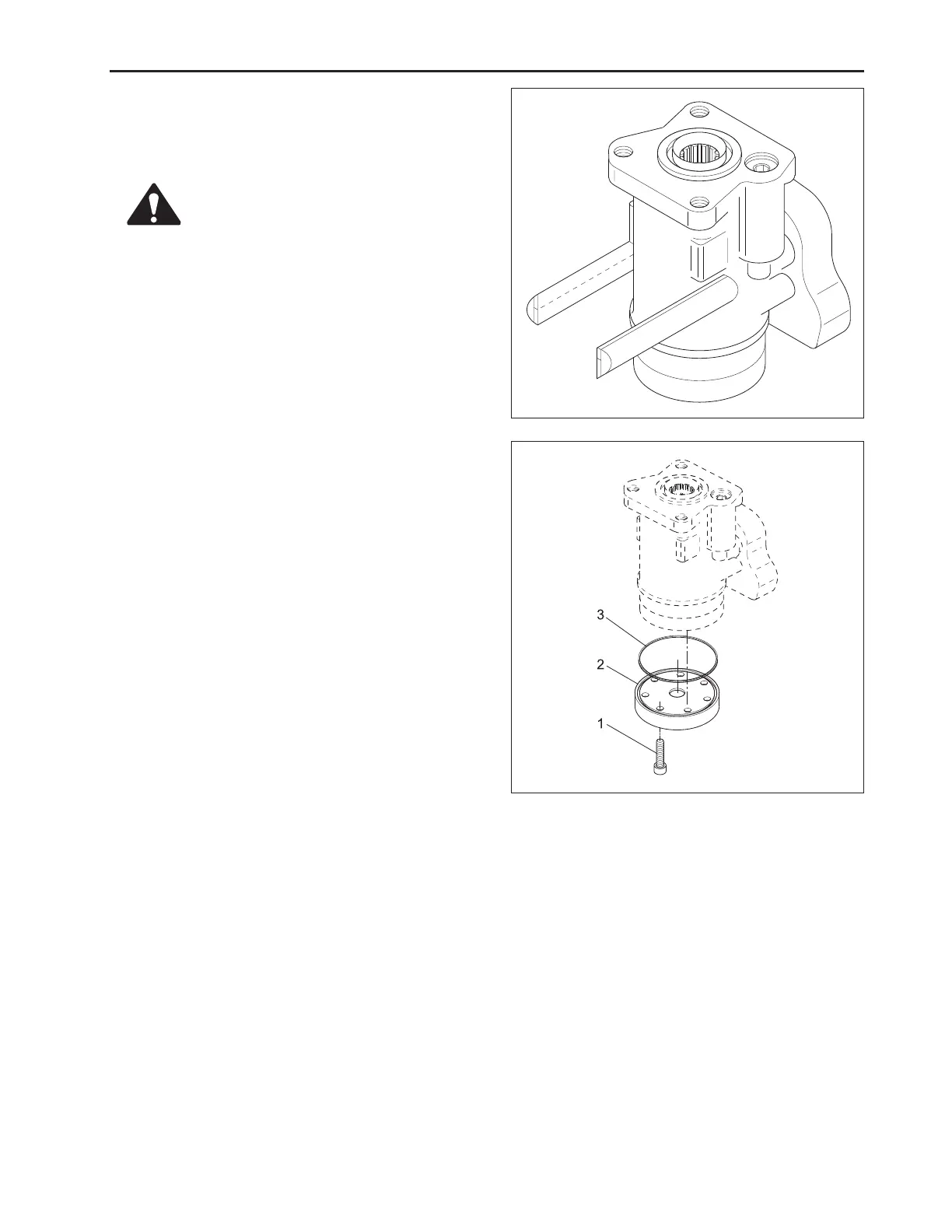

a. To Disassemble the Gerotor Parts
1. Let the port face of the tractor’s body housing vised
slightly with the end cap upward.
2. Loosen 2 screws to Disassembling housing (21).
3. Loosen 7 screws (1).
4. Remove end cap (2).
5. Remove O-ring (3) out of the end cap.
569W680A
569W681A
• Do not tighten the vise too firmly with a
steel pate or the like applied to.
CAUTION
(1) Screw
(2) End cap
(3) O-ring
