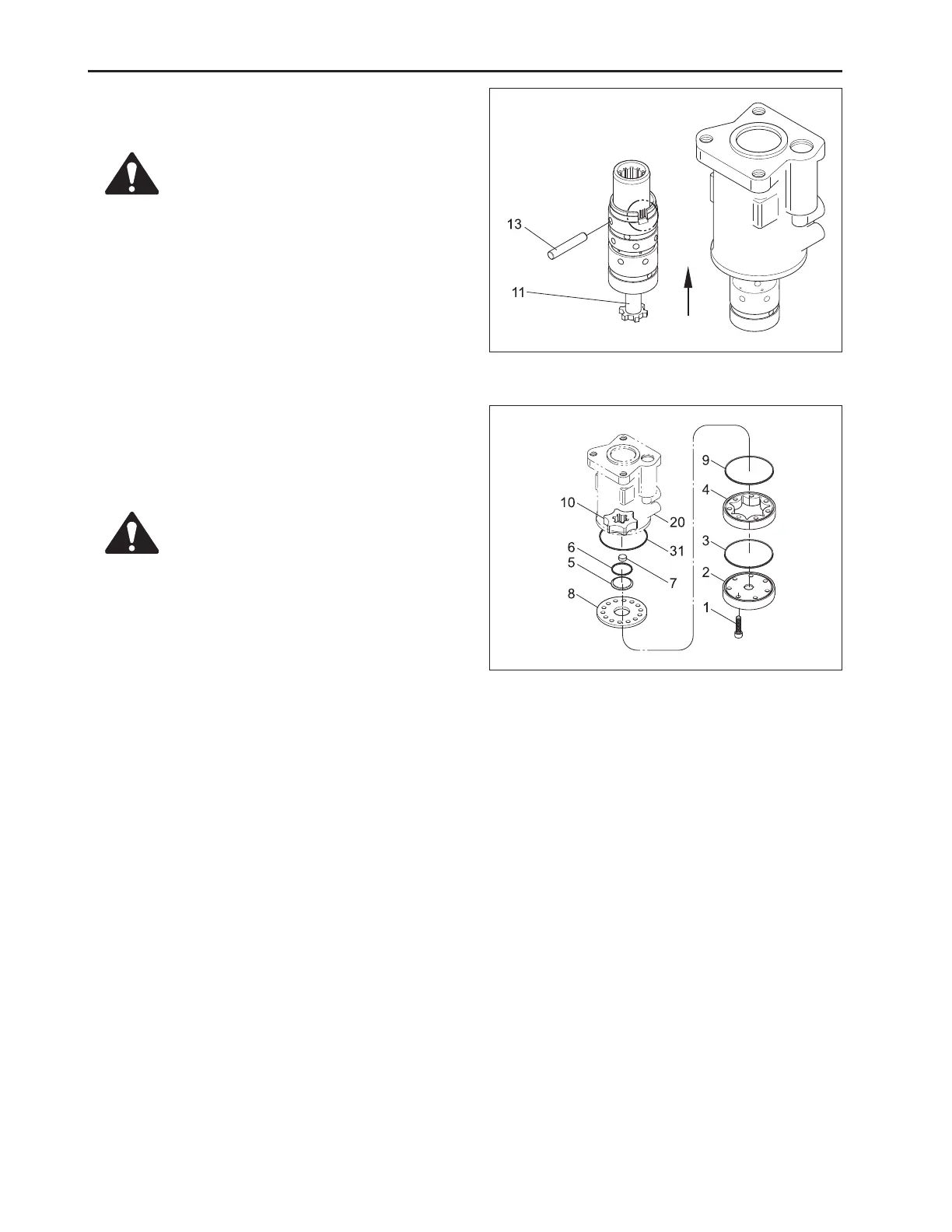

6. Insert pin (13) onto the sleeve groove and insert
the spool and sleeve ass’y from the gerotor side
of the housing.
9. Insert O-ring (6) and plate (7) installed on plate
(5) into the inner spline part of the Stator star.
10. Let spacer plate (8) ride on to align the bolt hole of
the housing with the oil hole.11. Apply oil on the
threads of screw (1) to put end cap (2) on.
569W693A
569W694A
• Check if the spool and sleeve ass’y
turns lightly inside the housing.
7. Insert the drive (11). And align pin (13) with the
york part of the drive this time.
8. Install O-ring on the Stator (4)Fd the gerotor star
on the positioning groove.
• Previously tighten 7 screws (1) at a
torque of approx 1.0 kgf·m (7.23 ft-lbs).
CAUTION
CAUTION
(11) Drive (13) Pin
(1) Screw (7) Plate
(2) End cap (8) Spacer Plate
(3) O-ring (9) O-ring
(4) Stator (10) Rotor
(5) Plate (20) Housing
(6) O-ring
