HYDRAULIC SYSTEM
6-69
D569-W02 May-2003

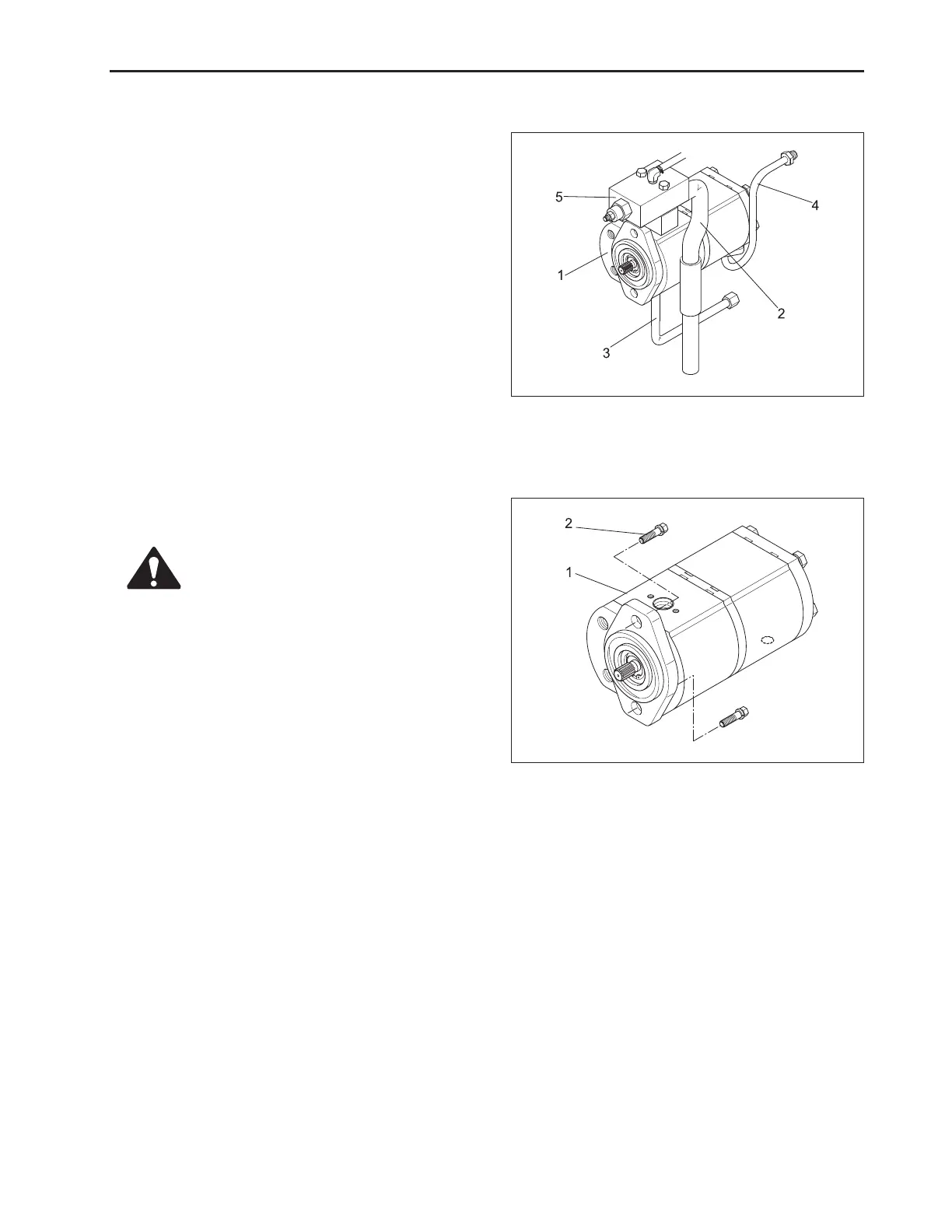

2. Loosen and remove bolt (2), gear pump (1) and
gasket.
(1) Gear Pump Assembly
(2) Bolt
569W699A
• Be careful not to cause damages on
the gasket. If damaged, replace it with
a new one.
4.4 TO DISASSEMBLING AND TO ASSEMBLE
A. GEAR PUMP ASSEMBLY
1. Remove hydraulic pipes (3), (4) and inlet pipes (2)
installed on gear pump (1).
(1) Gear Pump (4) Hydraulic Pipe 2
(2) Inlet Pipe (5) Priority Valve
(3) Hydraulic Pipe 1
569W698A
CAUTION
www.mymowerparts.com
K&T Saw Shop 606-678-9623 or 606-561-4983
