ELECTRICAL SYSTEM
8-13
D569-W02 May-2003
569W812A

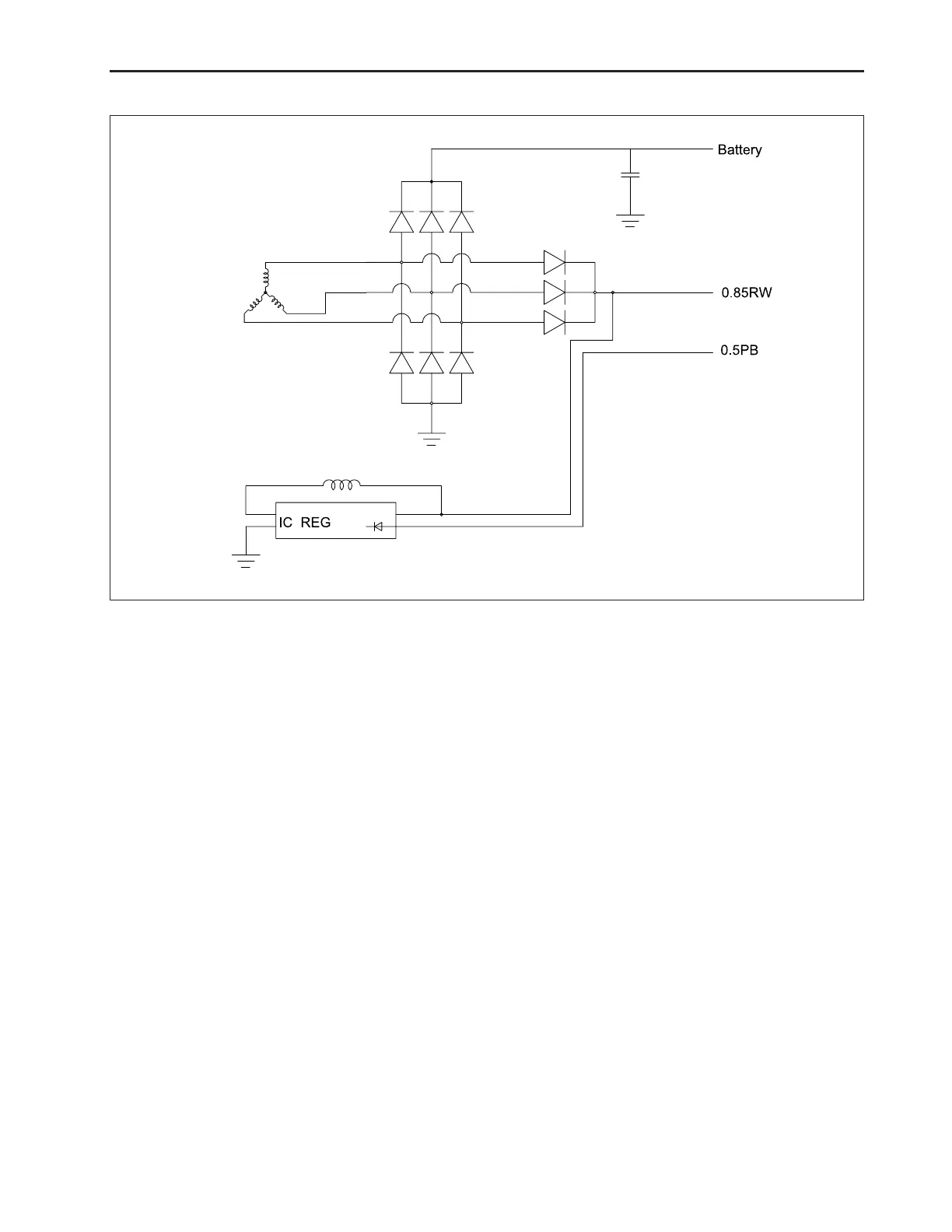

B. CIRCUIT DIAGRAM FOR ALTERNATOR UNIT
C. OPERATION OF CHARGING SYSTEM
· The charging system supplies electric power for various electrical devices and also charges the battery while the
engine runs.
· The alternator generates AC (alternating current) and the regulator converts AC into DC (direct current).
It also controls the output voltage for charging current to the battery.
· The regulator is built in inside of alternator.
