CHAPTER 9 8454
9-4
D569-W02 May-2003

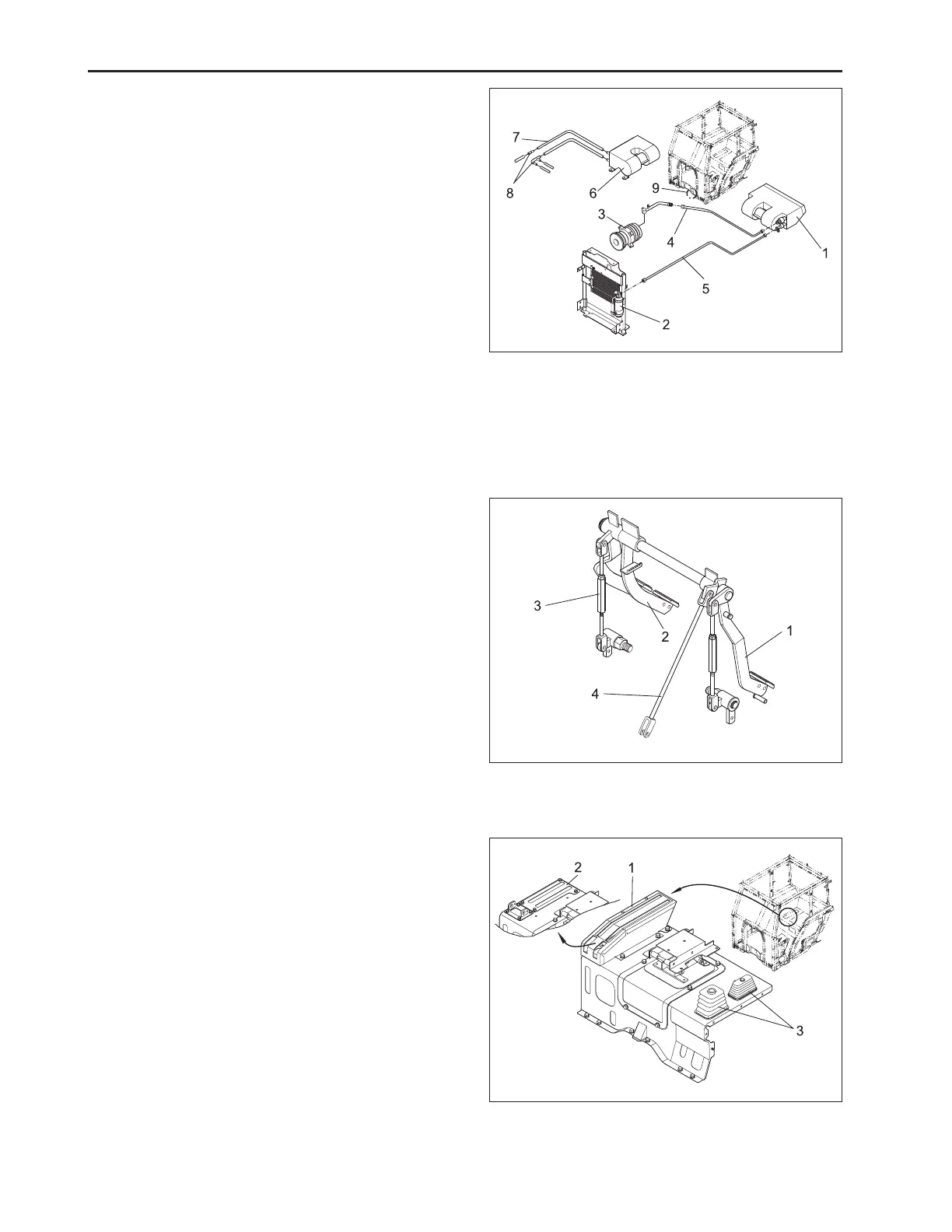

4. Open drain cock located in right of front axle frame,
drain coolant, remove heat hose 2 pieces (7) con-
nected to connecting pipe, and then remove air
conditioner hose (4, 5).
Remove wiring jack connected to the bottom of
cabin.
5. Remove clutch rod (4) connected to clutch lever and
then brake rod (3) connected to brake lever (left,
right). Remove accelerator cable and instrument
panel cable.
6. Remove all knobs in cabin and then right hydraulic
lever guide and plate. Remove main transmission
and PTO device from left of cabin.
(1) Aircon. Unit (6) Heater Ass’y
(2) R/D (7) Heater Hose
(3) Compressor (8) Pipe
(4) Aircon. Hose 1 (9) Wiring Jack
(5) Aircon. Hose 2
(1) Clutch Pedal (3) Break Rod
(2) Break Pedal (4) Clutch Rod
(1) Guide, Hyd. Lever (3) Boot
(2) Plate
569W906A
569W905A
569W904A
