CHAPTER 2 8454
2-36
D569-W03 May-2003
569W251A
569W252A

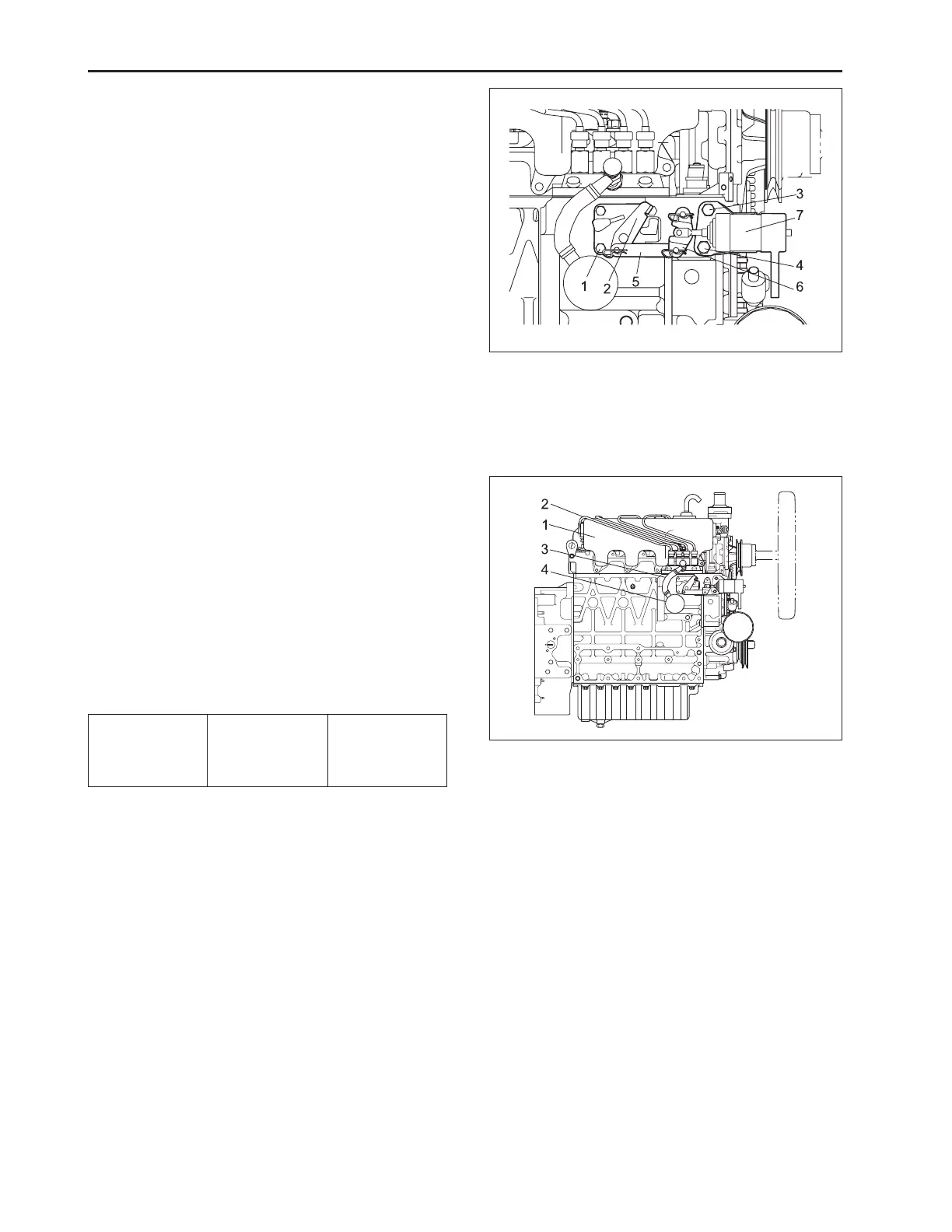

(1) Screw (5) Stop Lever 1
(2) Engine Stop Lever (6) Stop Lever 2
(3) Screw (7) Solenoid
(4) Screw
(1) Intake Manifold (3) Fuel Pipe
(2) Injection Pipe (4) Fuel Feed Pump
2) Solenoid
1. Disconnect the stop lever 1 (5) from the engine stop
lever (2).
2. Remove the screw (3) and (4).
3. Remove the solenoid (7) with its support.
(When reassembling)
• Loosen the solenoid mounting screws.
• Install the support and complete the linkage be-
tween the solenoid (7) and the engine stop lever
(2).
• Pushing the solenoid (7) plunger to the bottom, pull
the stop lever 2 (6) until the engine stop lever (2) is
turned to the end, then tighten the screws.
3) Intake manifold and fuel pipes
1. Disconnect the fuel pipe (3).
2. Loosen the injection pipe fitting with two wrenches
and remove the injection pipes (2).
3. Remove the intake manifold (1) and the fuel feed
pump (4).
IMPORTANT:
• Tighten or loosen injection pipe fittings using the
one-hand two-wrench squeeze method.
• Cap the nozzle hole to prevent entrance of foreign
materials.
Tightening
torque
Injection pipe
nut 19 mm
(0.75 in.)
cross flats
24.5 ~ 34.3 N·m
2.5 ~ 3.5 kgf·m
18.0 ~ 25.3 lbf·ft
