Ex Series Ex450
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-129652-21010 CRANKSHAFT ASSY 1
2 CY-129100-01580 PARALLEL PIN, M8X16 1
4 CY-119803-21200 GEAR, CRANKSHAFT 1
5 CY-121850-21290 PIN 1
6 CY-129400-28121 GEAR, BALANCER 1
7 CY-22512-070140 KEY, 7X14 1
9 CY-22512-070140 KEY, 7X14 1
10 CY-119852-21650 V-PULLEY, CRANKSHAFT 1
11 CY-129795-21661 WASHER 1
12 CY-121850-21680 BOLT, V-PULLEY 1
13 CY-121111-21501 BOLT, FLYWHEEL 6
14 CY-129429-21590 FLYWHEEL ASSY 1
16 CY-124550-21600 GEAR, RING 1
17 CY-121820-21690 BEARING 1
18 CY-129005-22080 PISTON W/RING 4
20 CY-129005-22500 RING SET, PISTON 4
24 CY-129202-22300 PIN, PISTON 4
25 CY-22252-000260 CIRCLIP 26 8
26 CY-729402-23100 ROD ASSY, CONNECTING 4
29 CY-121550-23200 BOLT, CONNECTING ROD 8
30 CY-129150-23601 METAL, CRANKPIN 4
32 CY-129100-23910 METAL, PISTON PIN 4
33 CY-129005-22900 PISTON W/RING .25OS 4
35 CY-129005-22950 RING SET, PISTON .25 4
39 CY-129150-23611 METAL.PIN US=0.25 4
15

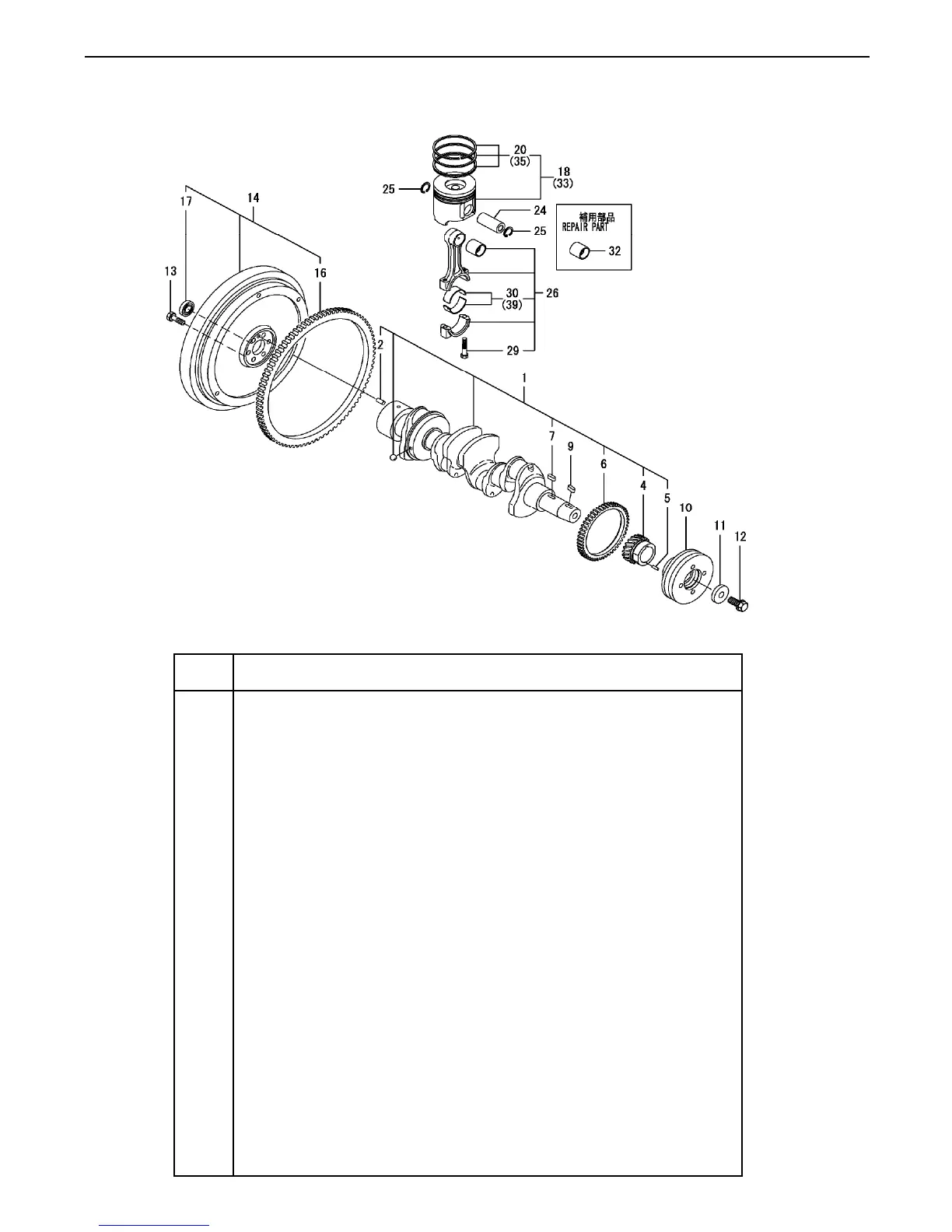

FIG. 8. CRANKSHAFT & PISTON
