Ex Series
Ex450
REF
NO.
PART NUMBER
DESCRIPTION
QTY
1
CY-198149-25690
GEAR ASSY, REDUCTION
1
2
CY-24550-016150
DRY BUSH 16X15
1
3 CY-198133-25701
COLLAR
1
4 CY-22242-000290
CIRCLIP
29
1
5 CY-24101-063044
BALL
BEARING
1
6 CY-24101-063064
BALL
BEARING
1
89

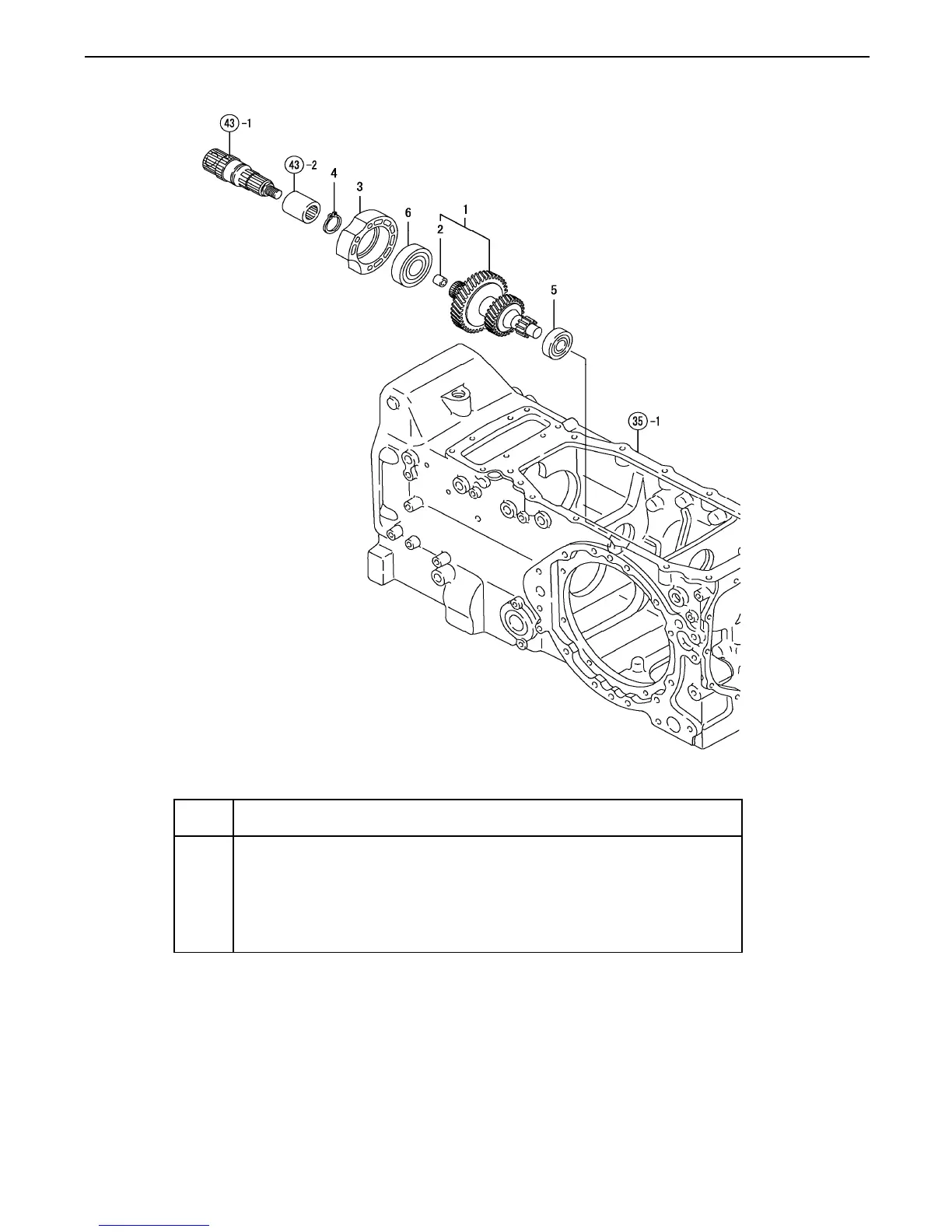

FIG. 41. REDUCTION SHAFT
Copyright 2008 Cub Cadet Yanmar LLC
88
90
Table of Contents
