Ex Series
Ex450
REF
NO.
PART NUMBER
DESCRIPTION
QTY
1 CY-194447-13860
BALL
BEARING
1
2 CY-194310-25100
JOINT
2
3 CY-198133-25291
SHAFT,
CONNECTING
1
4 CY-194197-25810
BALL
BEARING
1
5
CY-198240-26110
SHAFT, PTO PINION
1
6 CY-22252-000170
CIRCLIP
17
2
92

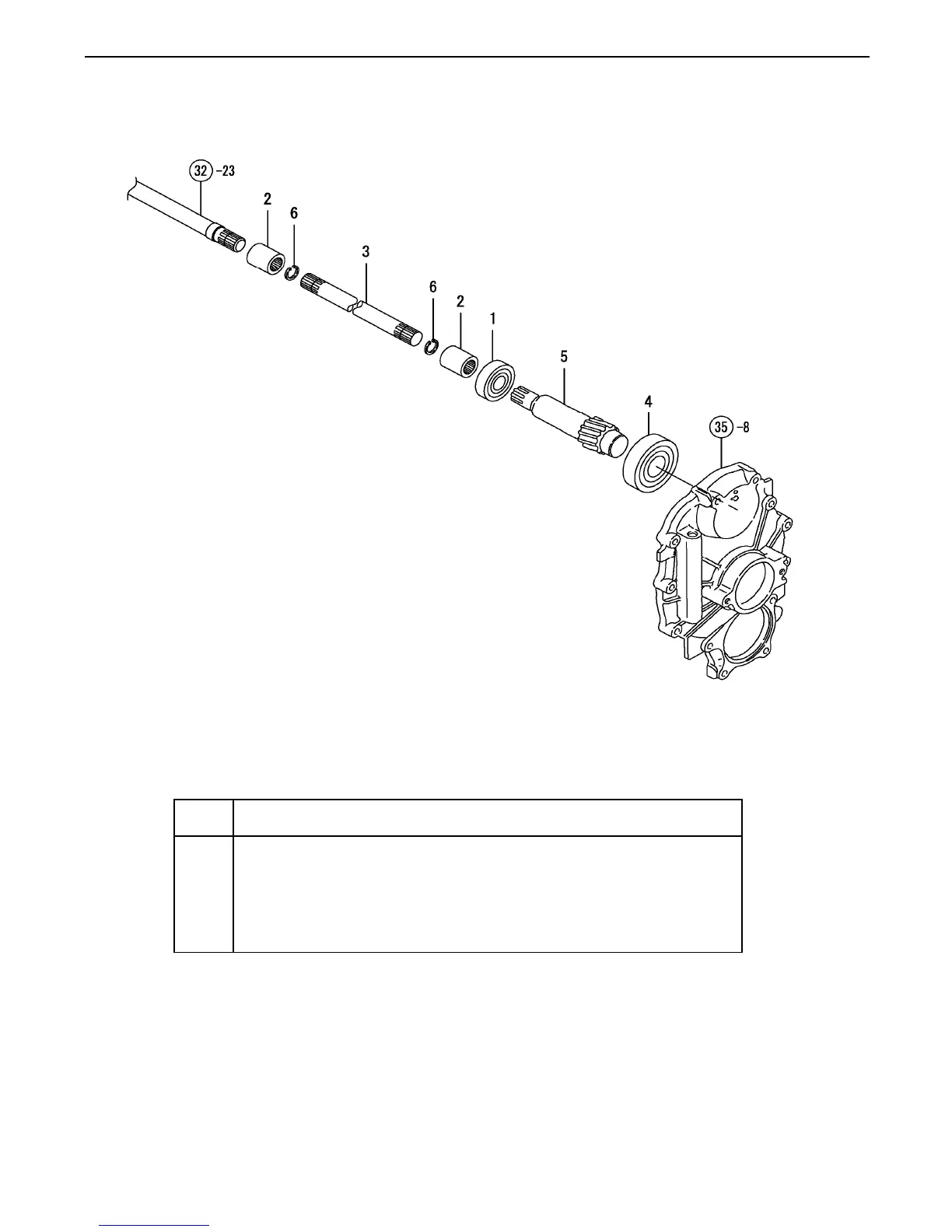

FIG. 44. PTO DRIVE SHAFT
Copyright 2008 Cub Cadet Yanmar LLC
